Shift And Select Lever Shaft: Components

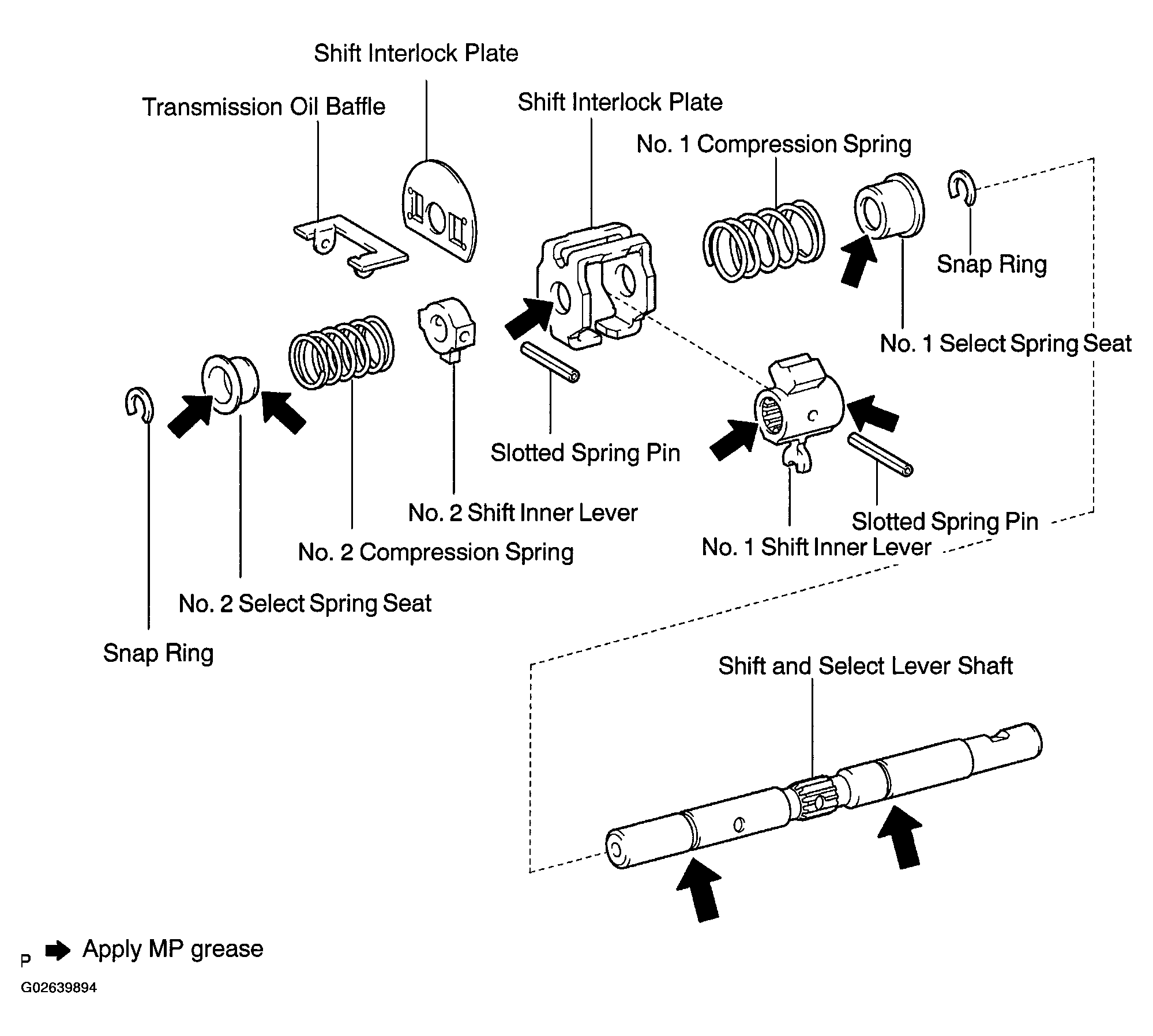

Fig 1: Exploded View Of Shift And Select Lever Shaft Components
G02639894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
