Transfer (4WD): Components

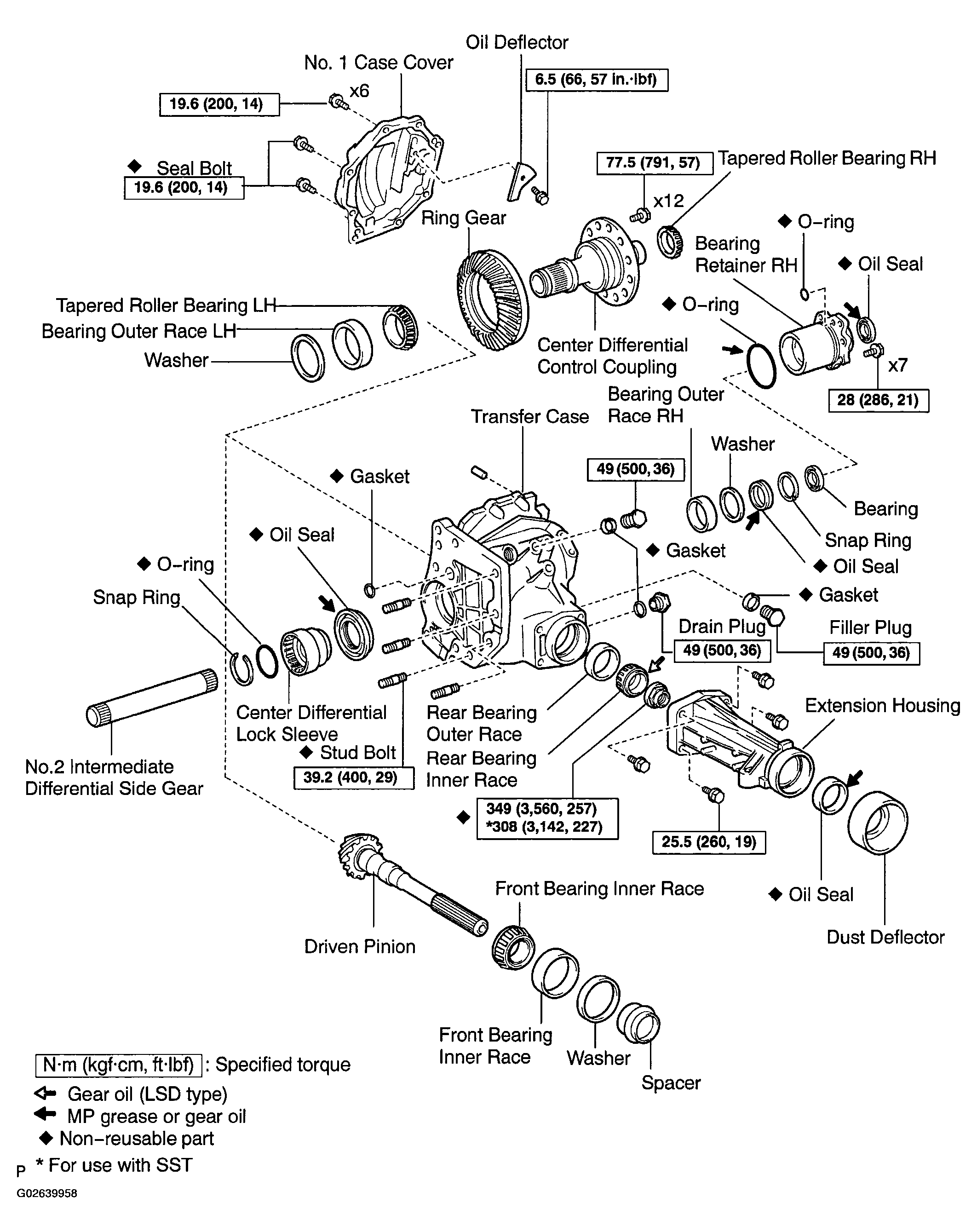

Fig 1: Exploded View Of Transfer Components (4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
