Knock Sensor: Inspection

REMOVE THROTTLE BODY COVER
REMOVE INTAKE AIR CONNECTOR
DISCONNECT THROTTLE BODY FROM INTAKE MANIFOLDS (See REMOVAL )
REMOVE UPPER AND LOWER INTAKE MANIFOLDS ASSEMBLY (See REMOVAL )
INSPECT KNOCK SENSOR 1, 2
1. Disconnect the knock sensor connectors.
2. Using an ohmmeter, check that there is no continuity between the terminal and body.

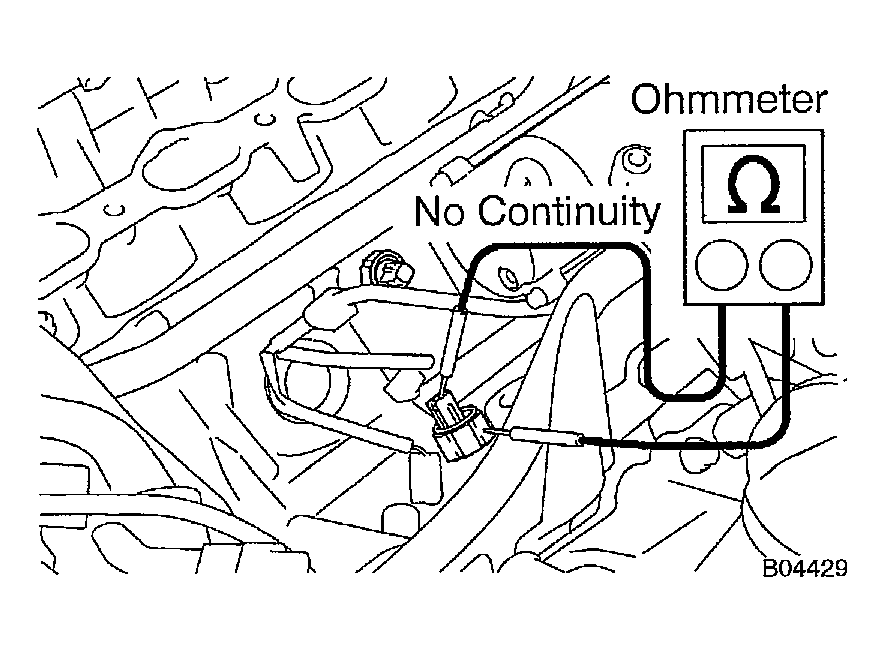

  Fig 1: Checking No Continuity Between Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If there is continuity, replace the sensor with SST.

  SST 09816-30010

  Torque: 45 N.m (450 kgf.cm, 33 ft.lbf)
3. Reconnect the knock sensor connectors.
REINSTALL UPPER AND LOWER INTAKE MANIFOLDS ASSEMBLY (See INSTALLATION )
REINSTALL THROTTLE BODY TO INTAKE MANIFOLDS (See INSTALLATION )
REINSTALL INTAKE AIR CONNECTOR
REINSTALL THROTTLE BODY COVER

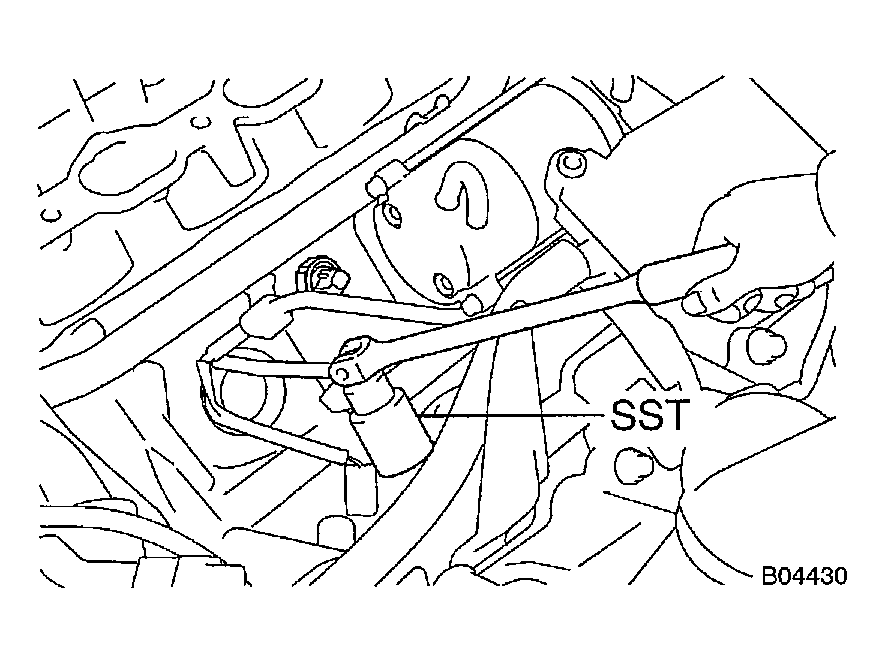

Fig 2: Connecting Knock Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
