Vehicle Lift And Support Locations

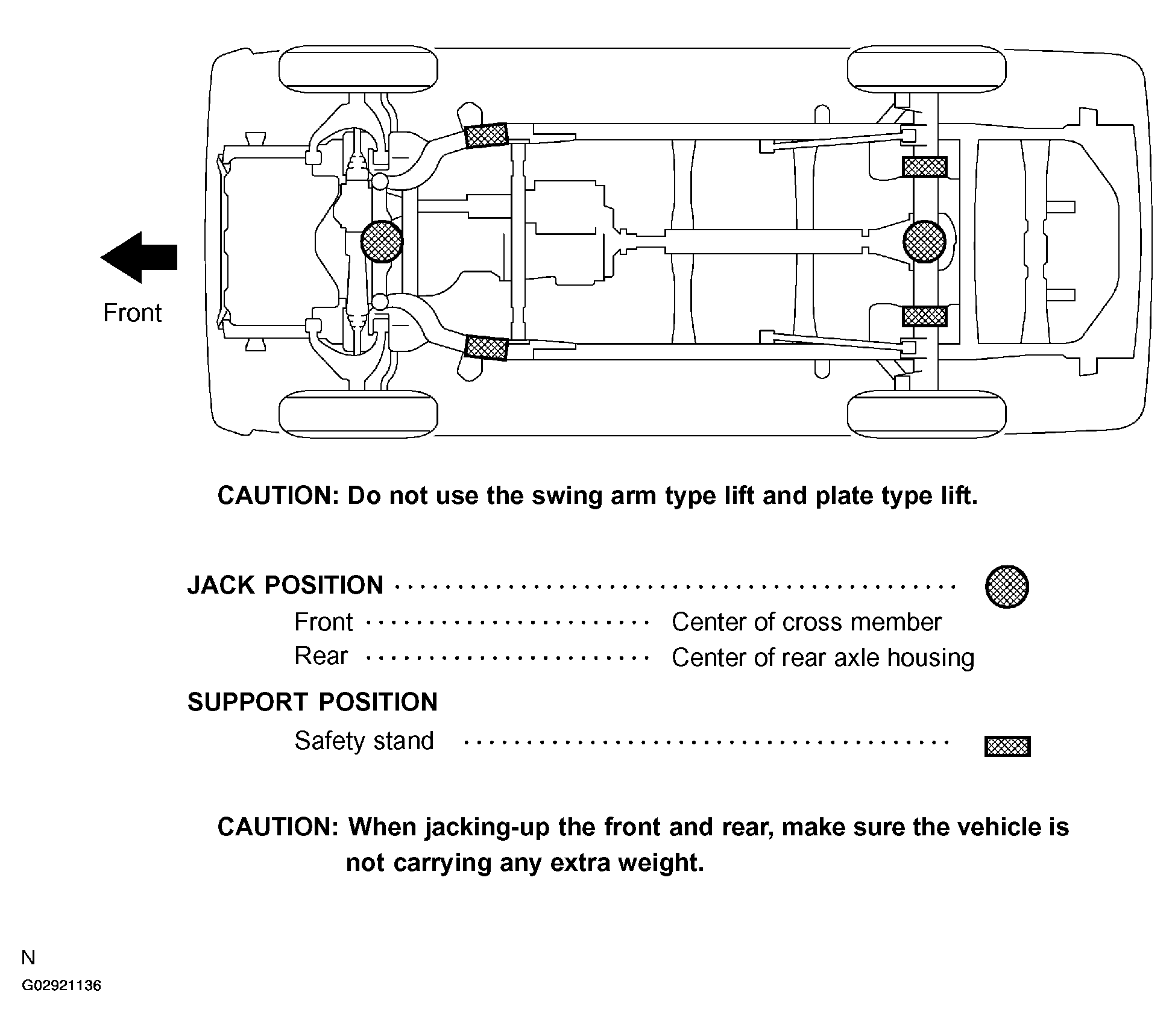

Fig 1: Identifying Jack & Support Positions For Vehicle
G02921136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
