Power Window Control System: Inspection

INSPECT ONE-TOUCH POWER WINDOW SYSTEM CURRENT OF CIRCUIT (Using an ammeter)
1. Disconnect the connector from the master switch.
2. Connect the positive (+) lead from the ammeter to terminal 1 on the wire harness side connector and the negative (-) lead to negative (-) terminal of the battery.
3. Connect the positive (+) lead from the battery to terminal 2 on the wire harness side connector.
4. As the window goes down, check that the current flow is approximately 7 A.
5. Check that the current increases up to approximately 14.5 A or more when the window stops going down.
NOTE: The PTC opens some 4 - 90 seconds after the window stops going down, so that check must be made before the PTC operates.

If the operation is not as specified, replace the master switch.

Fig 1: Inspecting One-Touch Power Window System Current Of Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT REAR DOOR POWER WINDOW SWITCH CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Switch Position	Tester Connection	Specified Condition
UP	2 - 3, 4 - 5	Continuity
OFF	2 - 3 - 5	Continuity
DOWN	2 - 4, 3 - 5	Continuity

If continuity is not as specified, replace the switch.

INSPECT POWER WINDOW SWITCH CIRCUIT
1. (Driver's Door: See POWER SOURCE CIRCUIT )
2. (Passenger's Door: See POWER SOURCE CIRCUIT )
3. (Rear Door: See REAR POWER WINDOW SWITCH CIRCUIT )
4. (Back Door: See BACK DOOR POWER WINDOW SWITCH CIRCUIT )

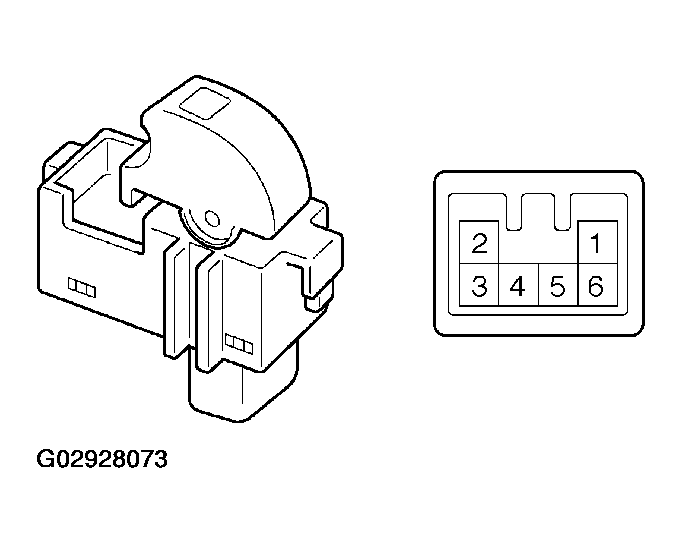

Fig 2: Identifying Rear Door Power Window Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT POWER MAIN RELAY CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Condition	Tester Connection	Specified Condition
Always	1 - 2	Continuity
Always	3 - 5	No Continuity
Apply B+ Between Terminals 1 And 2.	3 - 5	Continuity

If continuity is not as specified, replace the relay.

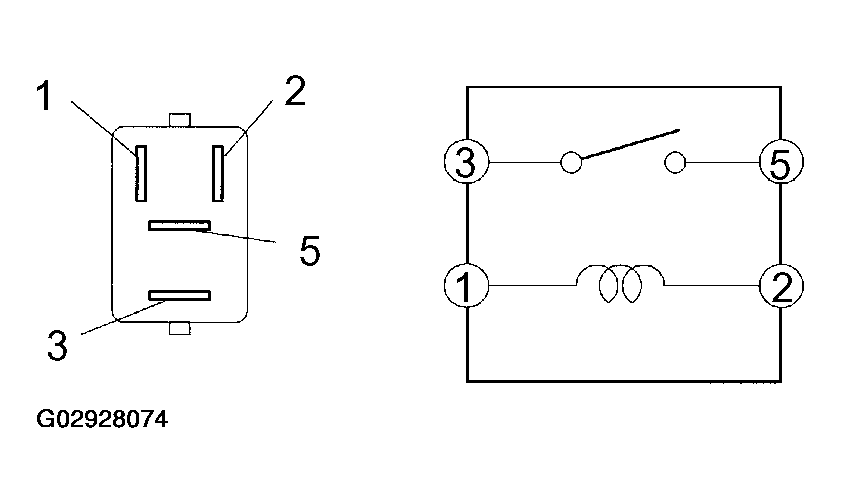

Fig 3: Checking Power Main Relay Continuity

Driver's Door:
1. INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.

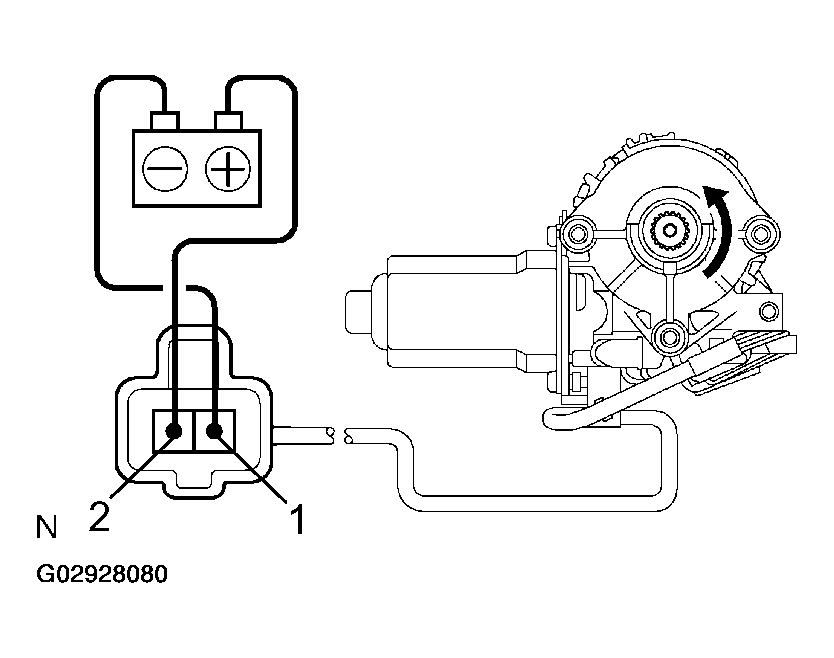

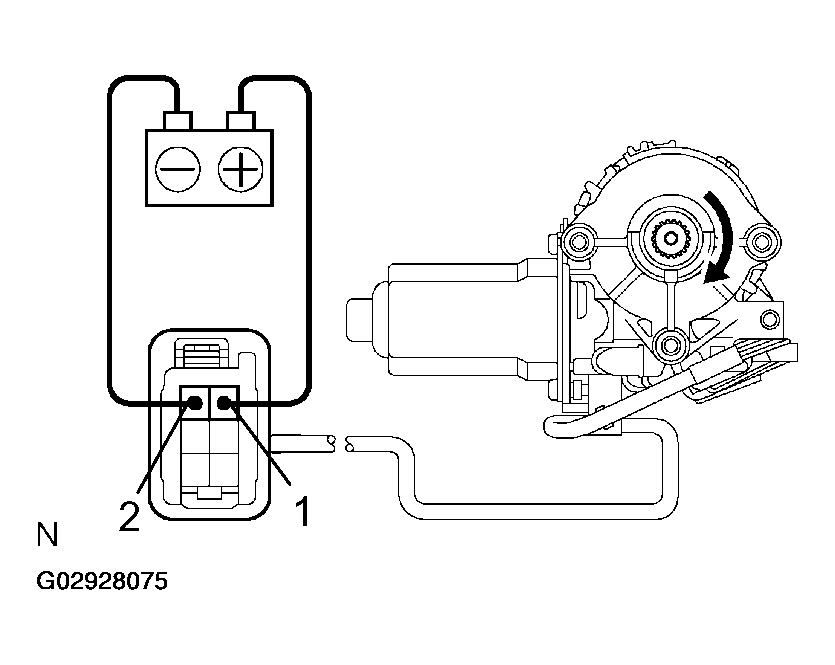

  Fig 4: Inspecting Power Window Motor Operation Driver's Door (Rotating Clockwise)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the power window motor.

NOTE: Since the jam protection may not work properly, be sure to conduct procedures described in "HOW TO RESET POWER MOTOR (RESET AND PULSE SWITCH)" after this inspection.

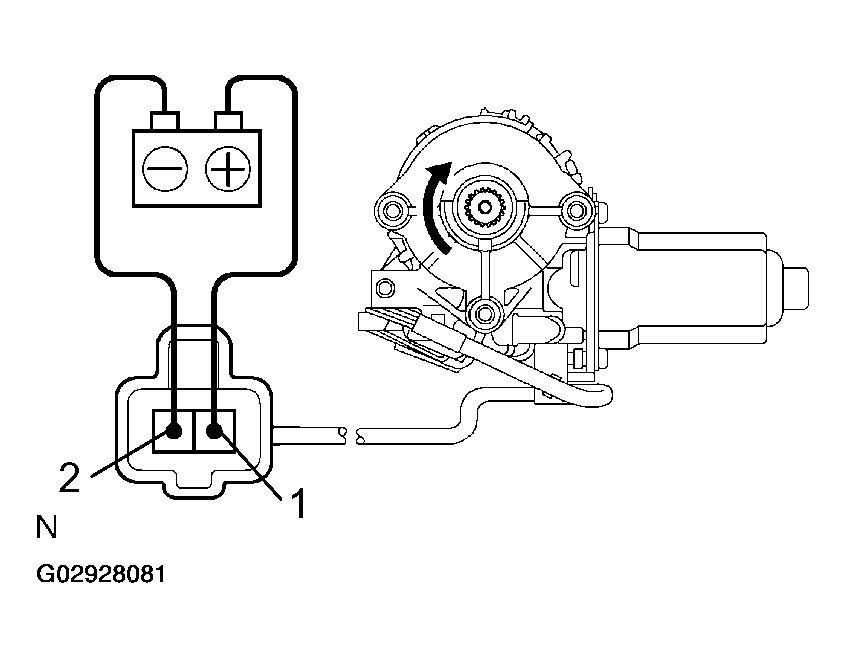

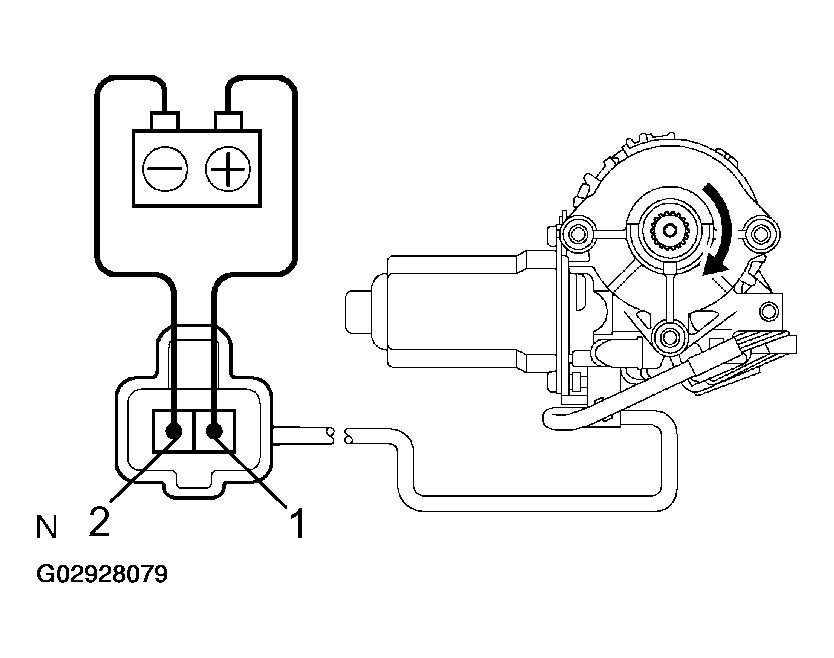

Fig 5: Inspecting Power Window Motor Operation (Driver's Door Rotating Counterclockwise)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Passenger's Door:
1. INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.

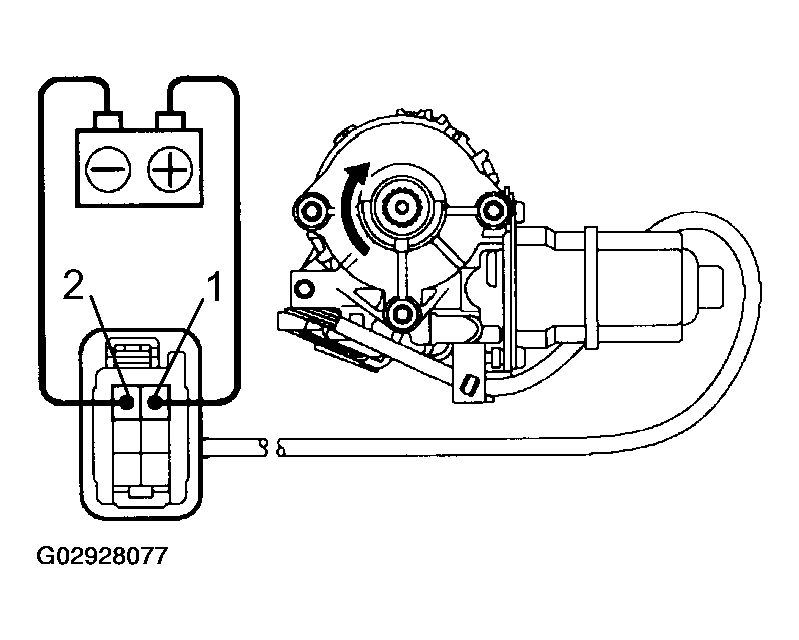

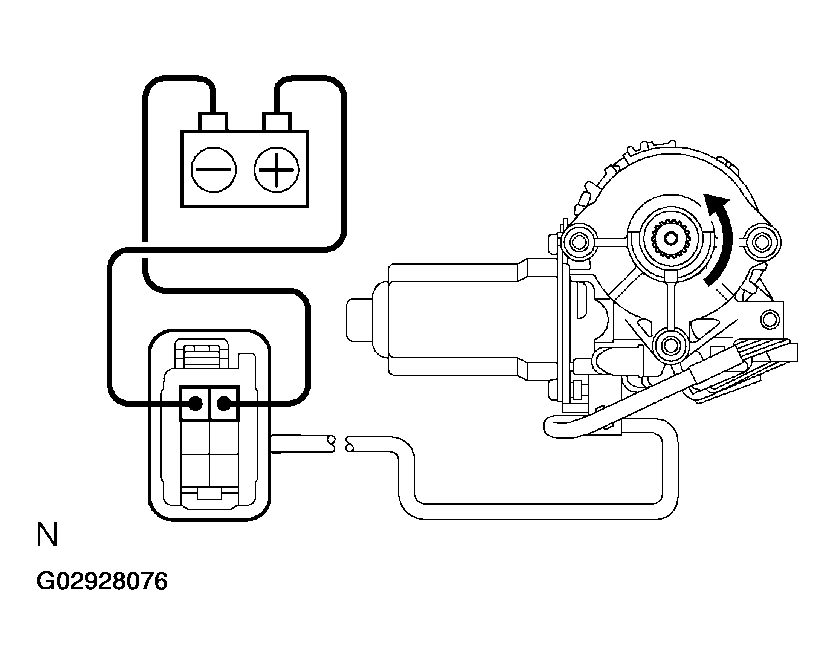

  Fig 6: Inspecting Power Window Motor Operation Passenger's Door (Rotating Clockwise)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the power window motor.

NOTE: Since the jam protection may not work properly, be sure to conduct procedures described in "HOW TO RESET POWER MOTOR (RESET AND PULSE SWITCH)" after this inspection.

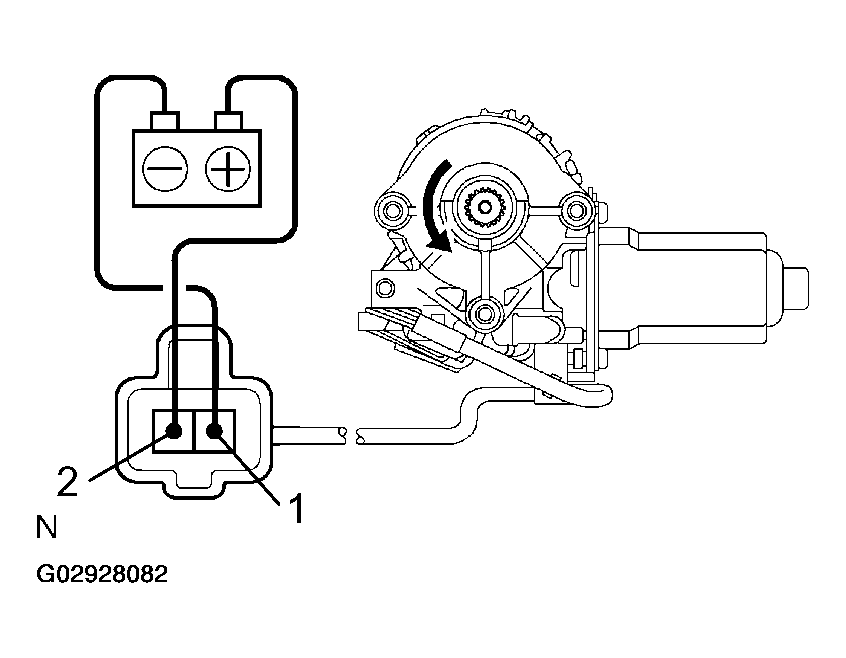

Fig 7: Inspecting Power Window Motor Operation Passenger's Door (Rotating Counterclockwise)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Rear Right Door:
1. INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminals 2, check that the motor turns clockwise.

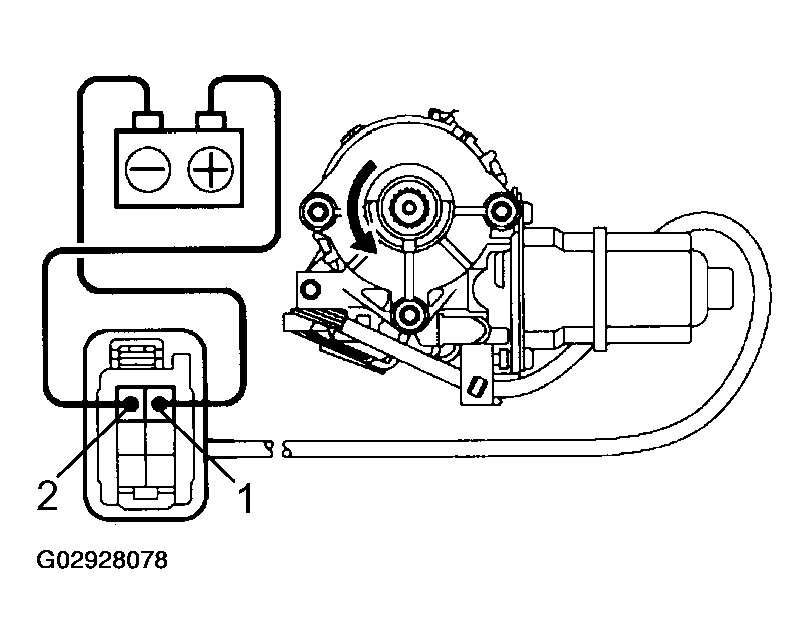

  Fig 8: Inspecting Power Window Motor Operation Rear Right Door (Rotating Clockwise)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the power window motor.

Fig 9: Inspecting Power Window Motor Operation Rear Right Door (Rotating Counterclockwise)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Rear Left Door:
1. INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns clockwise.

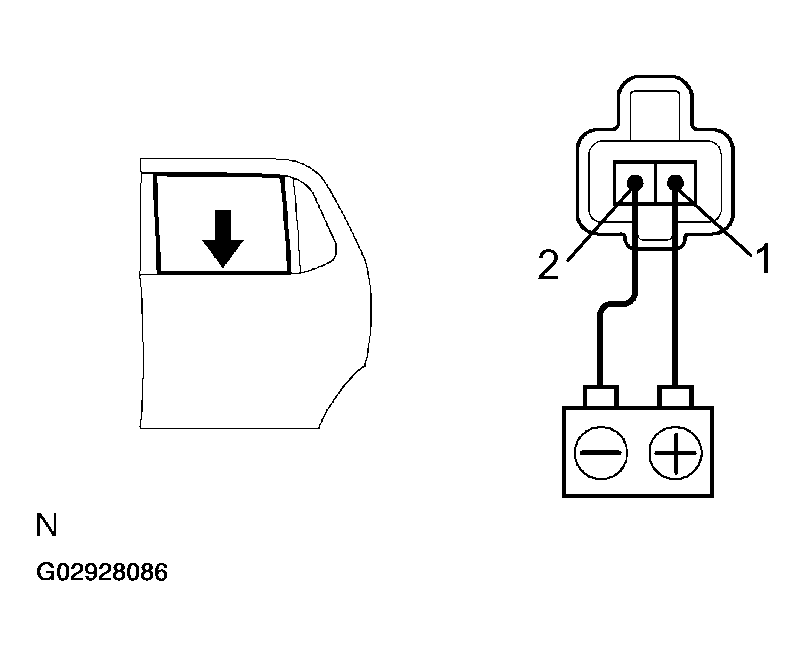

  Fig 10: Inspecting Power Window Motor Operation Rear Left Door (Rotating Clockwise)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the power window motor.

Fig 11: Inspecting Power Window Motor Operation Rear Left Door (Rotating Counterclockwise)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Front Door:
1. INSPECT PTC OPERATION
1. Disconnect the connector from the wire harness side connector.
2. Connect the negative (-) lead from the ammeter to terminal 1 of the motor side connector and the positive (+) lead to negative terminal of the battery.
3. Connect the positive (+) lead from the battery to terminal 2 of the motor side connector, and raise the window to the fully closed position.
4. Continue to apply voltage, check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
5. Disconnect the leads from terminals.
6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the window begins to goes down.
If operation is not as specified, replace the power window motor.

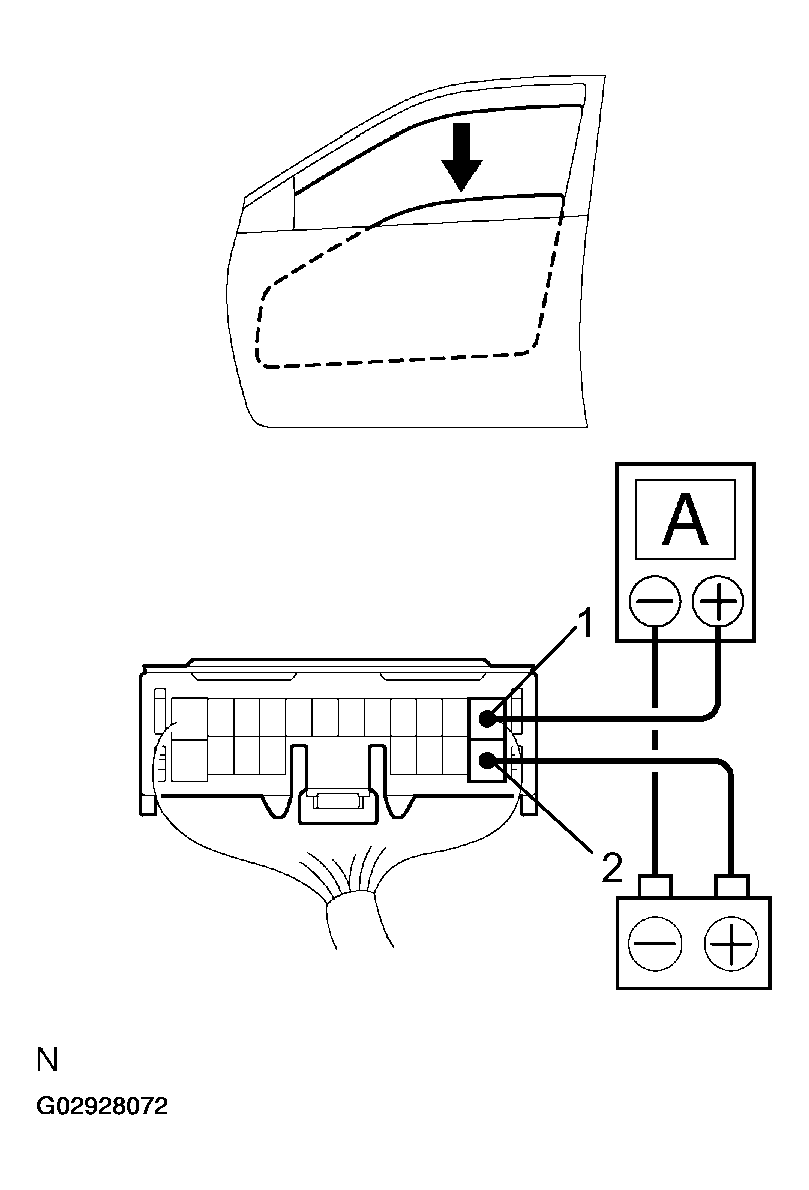

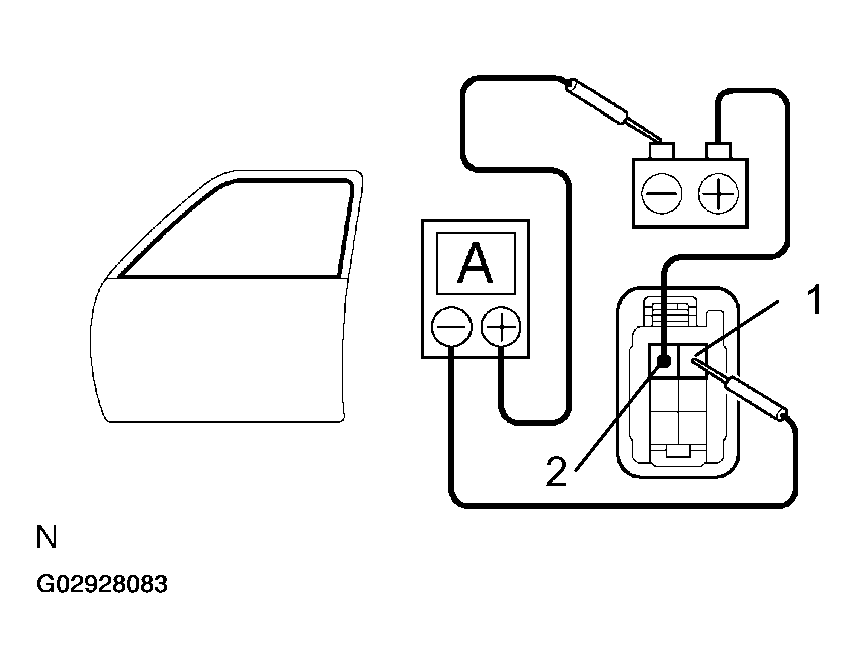

Fig 12: Measuring Current Between Power Window Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

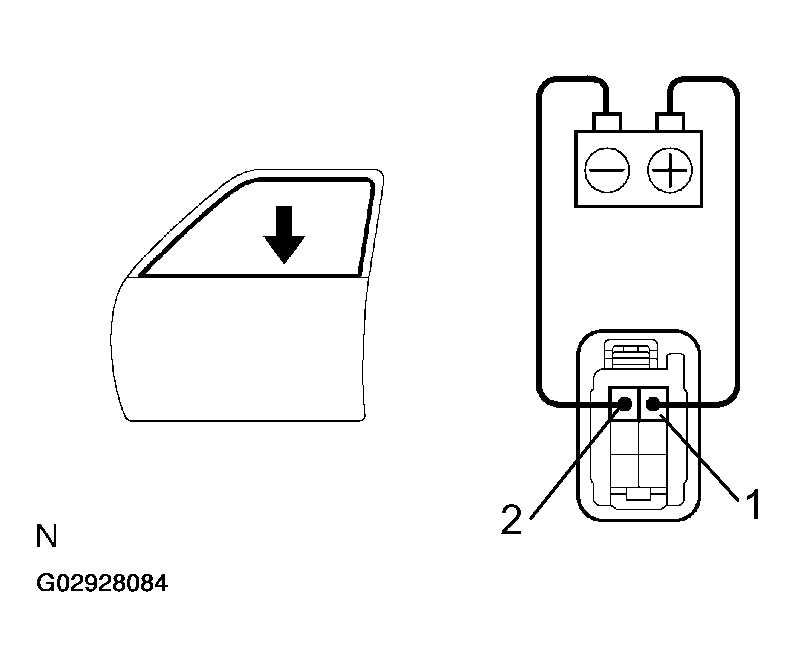

Fig 13: Inspecting PTC Operation (Window Moving Downward)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Rear Door:
1. INSPECT PTC OPERATION
1. Disconnect the connector from the wire harness side connector.
2. Connect the negative (-) lead from the ammeter to terminal 1 of the motor side connector and the positive (+) lead to negative terminal of the battery.
3. Connect the positive (+) lead from the battery to terminal 2 of the motor side connector, and raise the window to the fully closed position.
4. Continue to apply voltage, check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
5. Disconnect the leads from terminals.
6. Approximately 90 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the window begins to goes down.
If operation is not as specified, replace the power window motor.

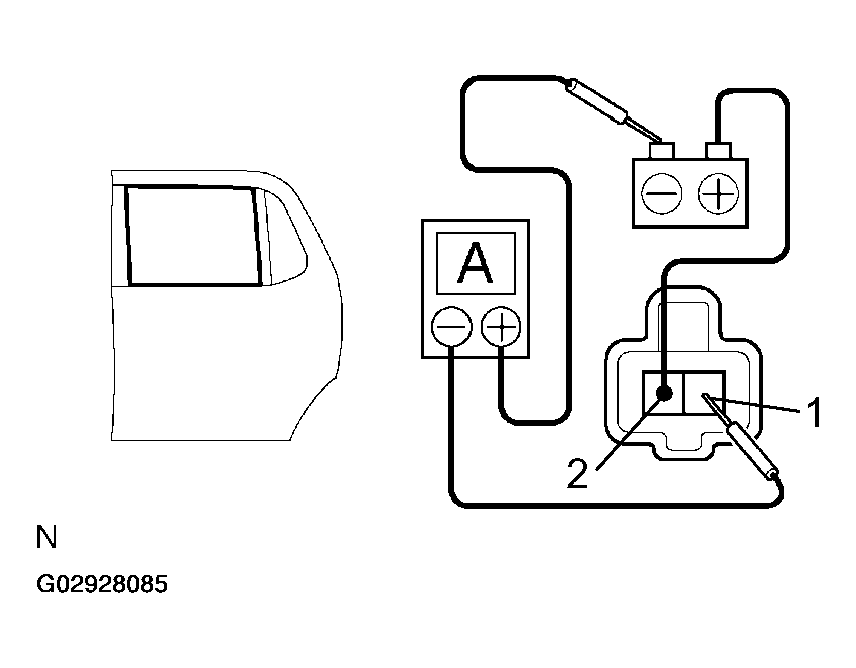

Fig 14: Measuring Current Between Power Window Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Inspecting PTC Operation (Window Moving Downward)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT JAM PROTECTION FUNCTION
NOTE: Be careful not to be caught any part of your body when checking.

NOTE: In case of performing resetting of the limit switch, do checking after repeating up and down of the glass with automatic operation.
1. Confirmation of AUTO up operation:
  1. Confirm that the window will be fully closed with AUTO up operation.
2. Checking of the operation of the jam protection function:
  1. Move up the window with AUTO up operation and check that the window will go down when it touches the inserted handle of the hammer.
  2. Confirm that the window will then stop going down about 200 mm (7.87 in.).
NOTE: In case of removing the glass, glass guide, regulator and etc. be sure to perform checking of the jam protection function. If the jam protection is not function properly, adjust power window motor reset switch and pulse switch.
