Evaporative Emission (EVAP) Control System: Components

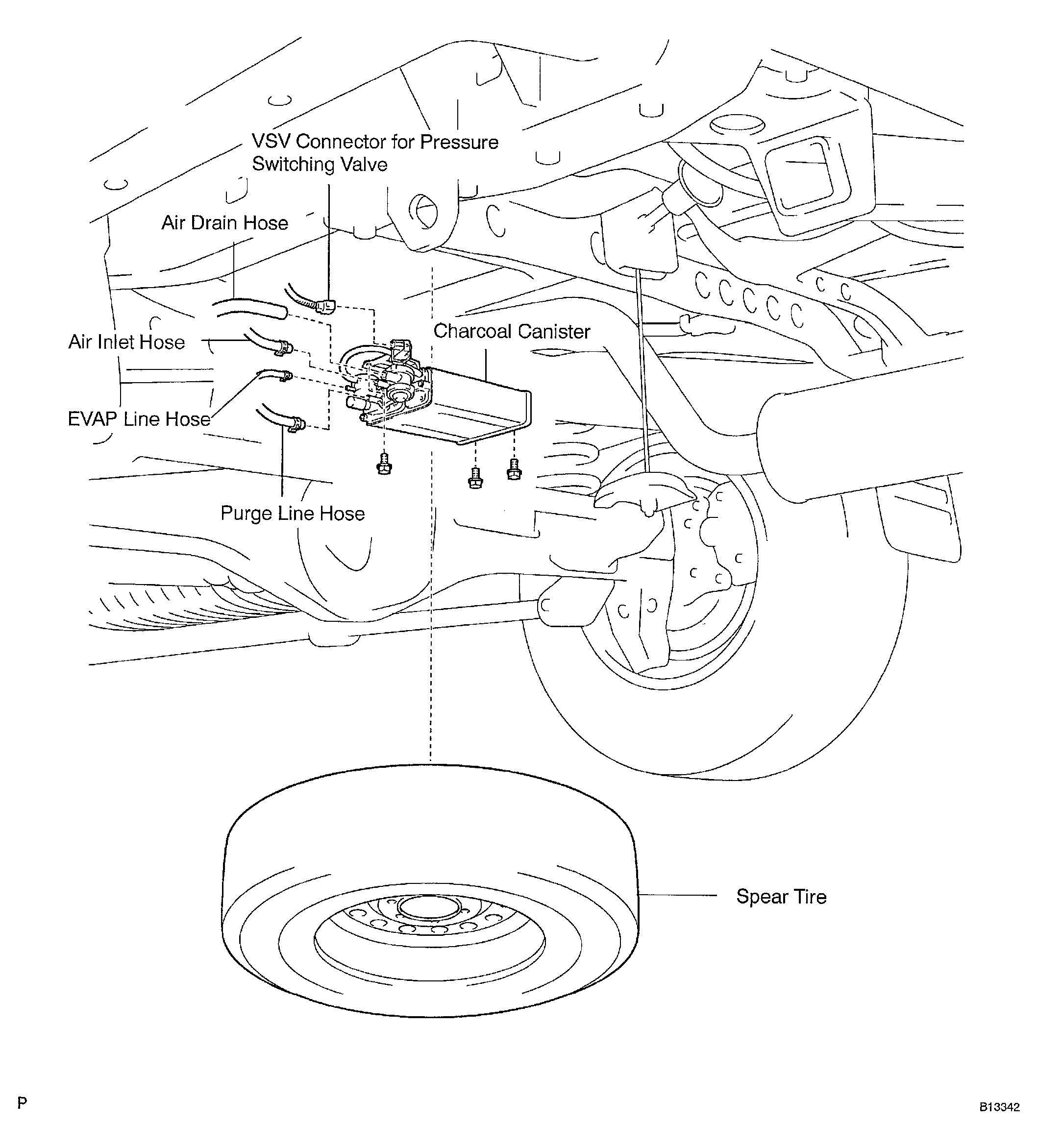

Fig 1: Identifying Evaporative Emission (EVAP) Control System Components
G04207918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
