Parts Layout And Schematic Drawing: Drawing

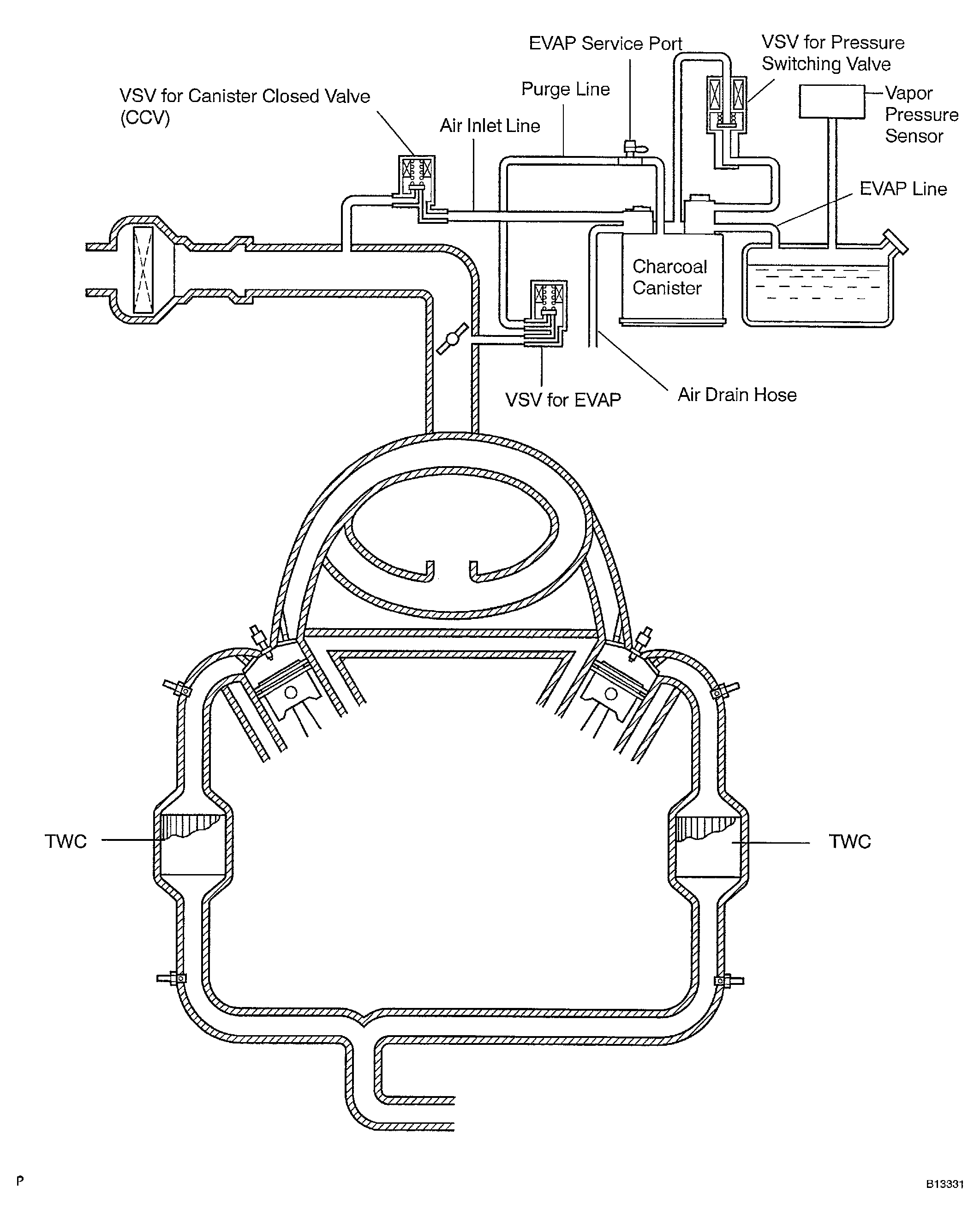

Fig 1: Identifying Emission Control Drawing
G04207914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
