Steering Column Shift Assembly: Components

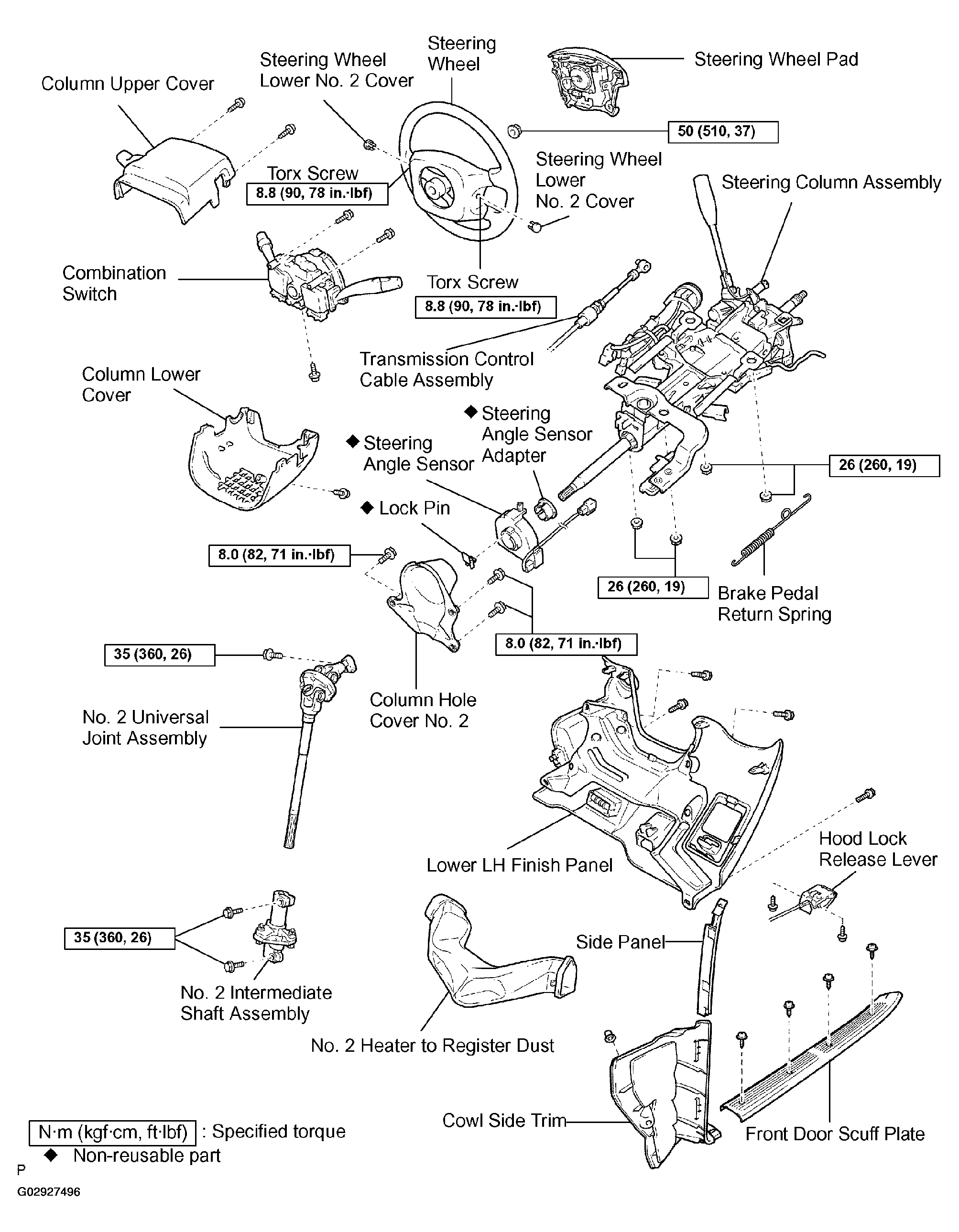

Fig 1: Locating Column Shift Assembly Components (1 Of 2)
G02927496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

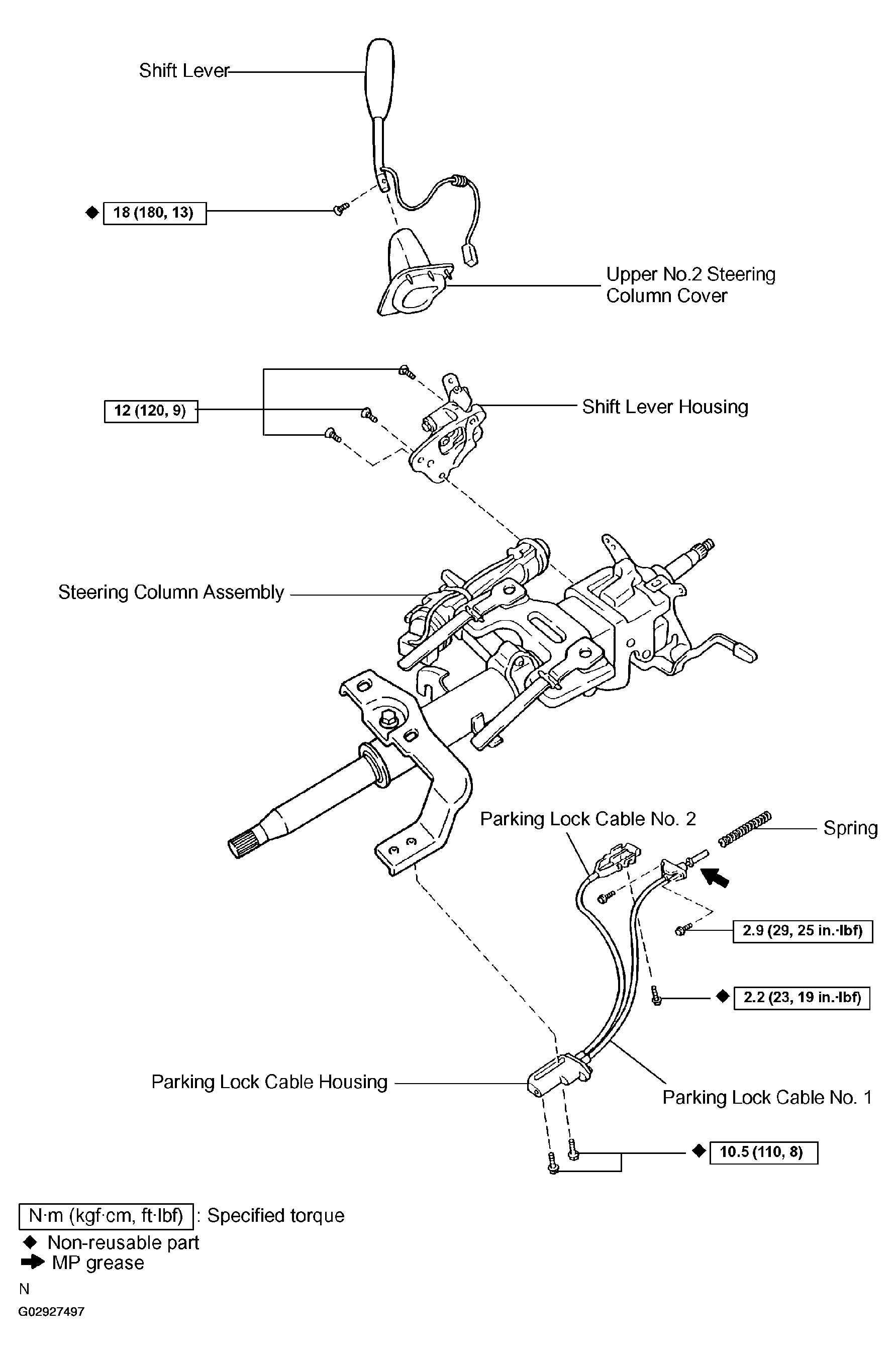

Fig 2: Locating Column Shift Assembly Component (2 Of 2)
G02927497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
