DTC P0171: System Too Lean (Bank 1), DTC P0172: System Too Rich (Bank 1), DTC P0174: System Too Lean (Bank 2), DTC P0175: System Too Rich (Bank 2)
>>
Typical Enabling Conditions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Typical Enabling Conditions

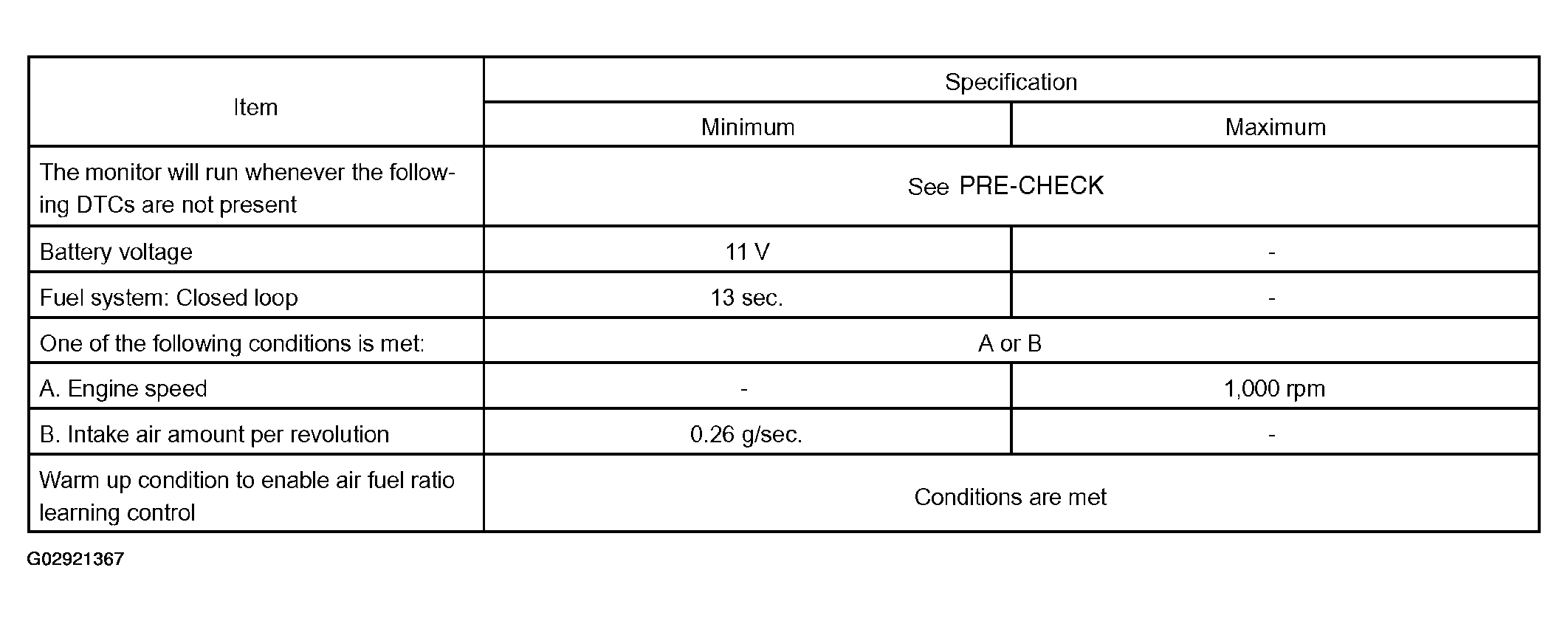

Fig 1: Typical Enabling Conditions Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
