Radio Receiver Assembly (W/O Navigation System): Replacement

NOTE: COMPONENTS: See COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.1 (See INSTRUMENT PANEL/METER )
REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.2 (See INSTRUMENT PANEL/METER )
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (See INSTRUMENT PANEL/METER )
REMOVE RADIO RECEIVER ASSEMBLY W/ BRACKET

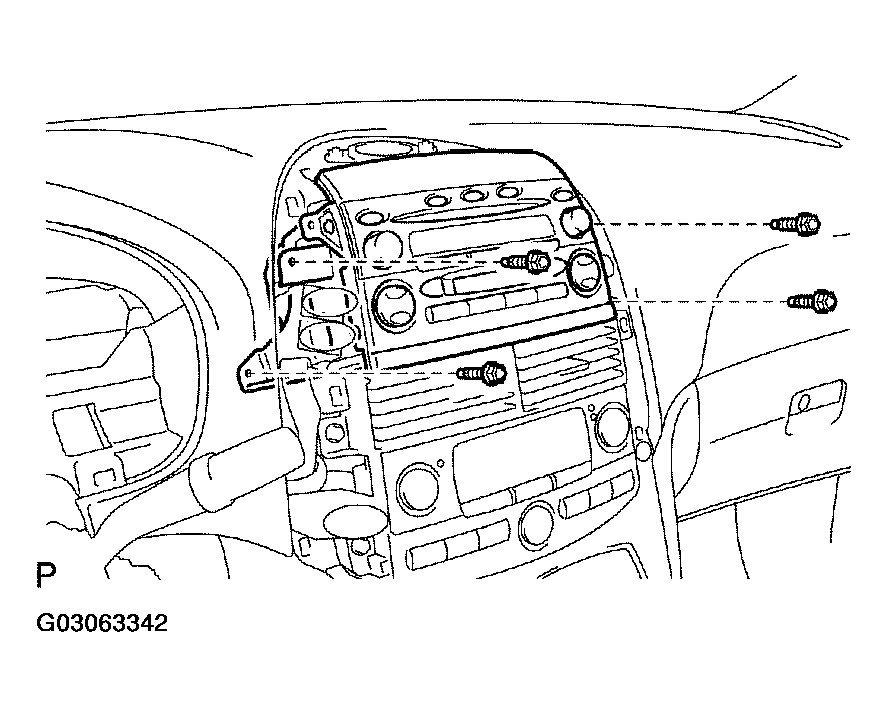

1. Disconnect the connectors and remove the 4 screws and the radio receiver assembly w/ bracket.
Fig 1: Removing Radio Receiver Assembly W/ Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 1

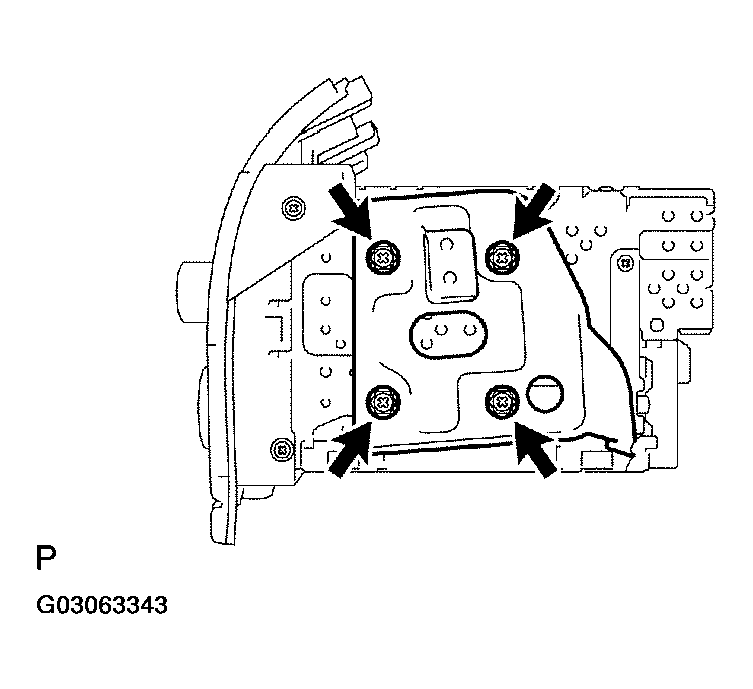

1. Remove the 4 screws and the radio bracket No. 1.
Fig 2: Removing Radio Bracket No. 1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO BRACKET NO. 2
1. Remove the 4 screws and the radio bracket No. 2.
Fig 3: Removing Radio Bracket No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIO RECEIVER ASSY
