Circuit Description

The intake air temperature sensor is built in the mass air flow meter and senses the intake air temperature.

A thermistor built in the sensor changes the resistance value according to the intake air temperature.

The lower the intake air temperature is the greater the thermistor resistance value becomes and the higher the intake air temperature is the lower the thermistor resistance value becomes (See Fig 1).

The intake air temperature sensor is connected to the ECM (See below). The 5 V power source voltage in the ECM is applied to the intake air temperature sensor from terminal THA (THAR) via resistor R.

That is, the resistor R and the intake air temperature sensor are connected in series. When the resistance value of the intake air temperature sensor changes in accordance with changes in the intake air temperature, the potential at terminal THA (THAR) also changes. Based on this signal, the ECM increases the fuel injection volume to improve the driveability during cold engine operation.

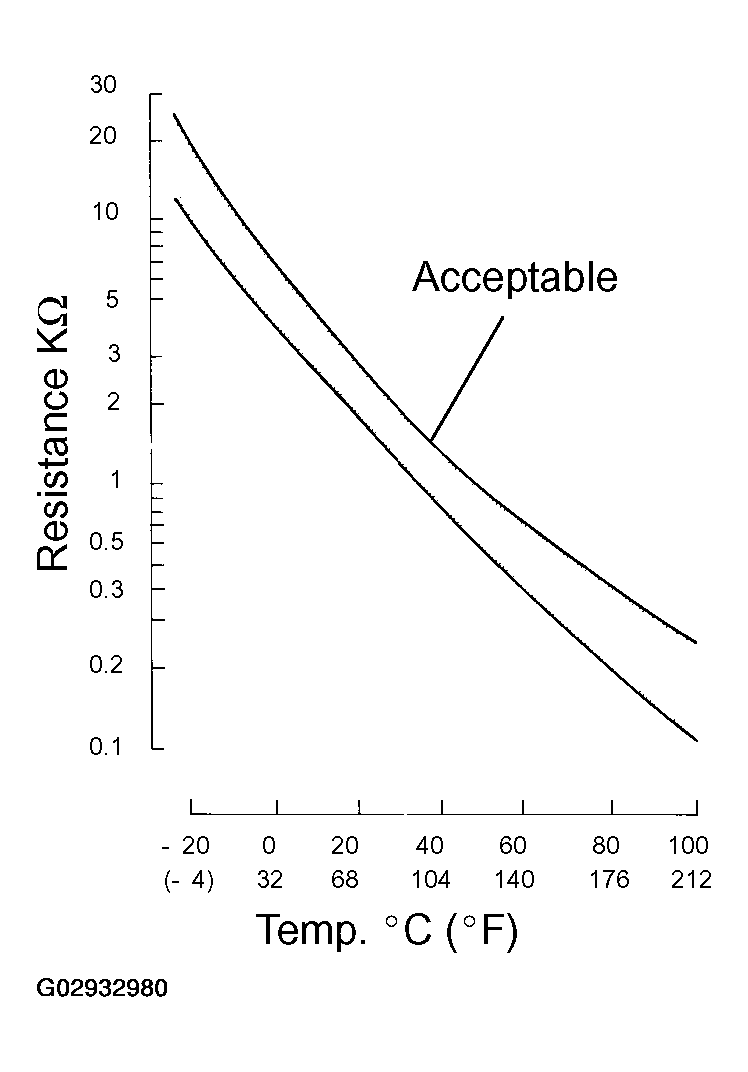

Fig 1: Temp. & Resistance Flow Graph
G02932980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

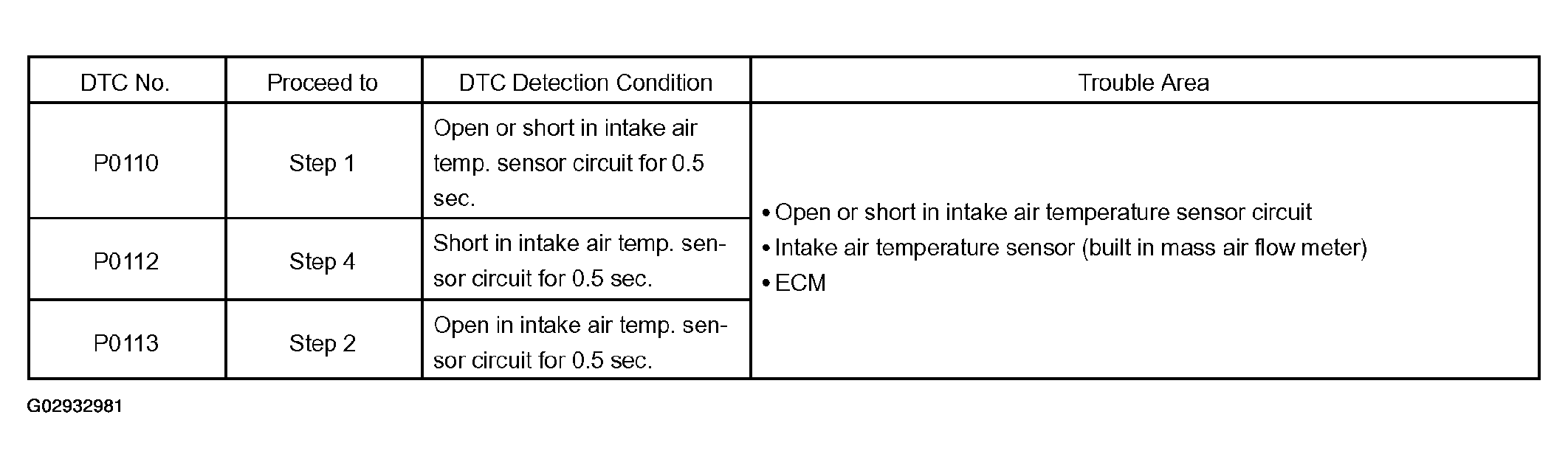

Fig 2: DTC Detection Condition Chart
G02932981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: After confirming DTC "P0110, P0112 or P0113", use the hand held tester or the OBD II scan tool to confirm the intake air temperature in the "DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL".
DTC TEMP.

Temperature Displayed Malfunction
-40 °C (-40°F) Open circuit
140°C (284°F) or more Short circuit
