Ignition Switch/Steering Lock: Replacement

HINT:

The installation is in the reverse order of the removal.

1. REMOVE STEERING COLUMN COVER LOWER (See  OVERHAUL  )
2. REMOVE STEERING COLUMN COVER UPPER (See  OVERHAUL  )
3. REMOVE IGNITION OR STARTER SWITCH ASSY
   1. Disconnect the ignition switch connector and unlock warning switch connector.
   2. Remove the clamp.
   3. Remove the 2 screws and ignition switch.

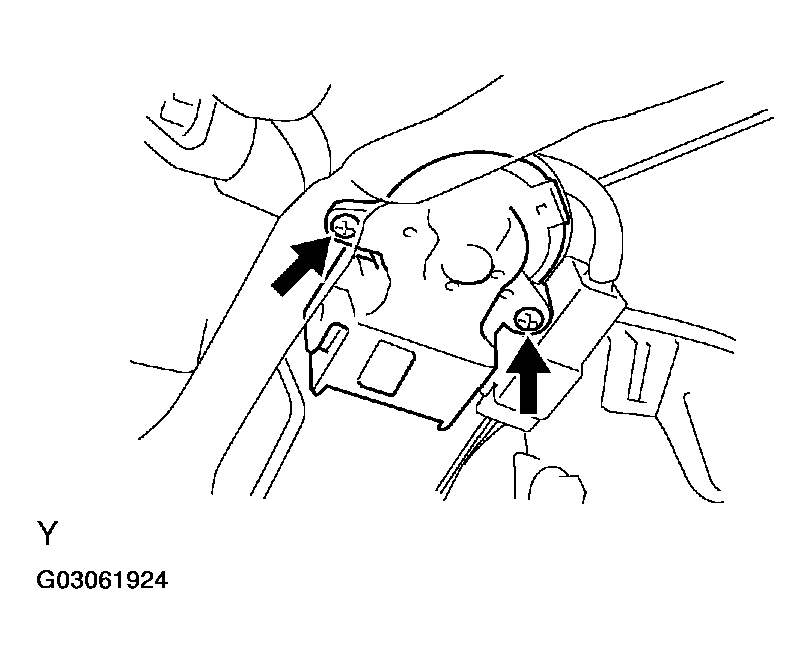

   Fig 1: Removing Ignition Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
