Inspection Procedure

CHECK MANUAL UP/DOWN FUNCTION (DRIVER SIDE)
1. Check that the door glass can be operated manually.
1. NG: OTHER PROBLEM (See MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON DRIVER SIDE )
2. OK: Go to next step.
CHECK ILLUMINATION OF POWER WINDOW MASTER SWITCH
1. Turn the ignition switch ON.
2. Operate the AUTO (drive side) switch of the master switch.
3. Check the blinking pattern of the AUTO light as shown in the illustration.
  1. If pattern (1) is displayed, proceed to A.
  2. If pattern (2) or (3) is displayed, proceed to B.
  3. If the normal pattern is displayed, proceed to C.

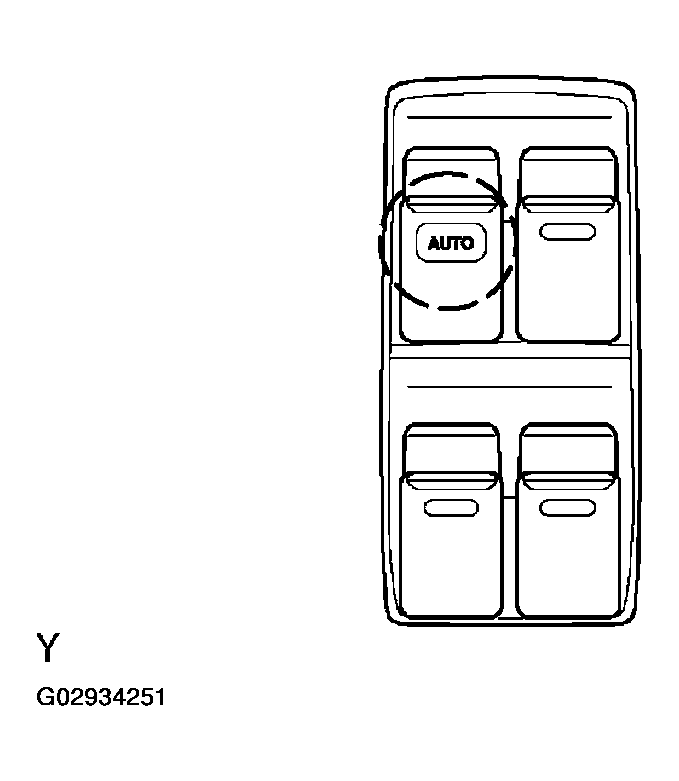

    Fig 1: Identifying Power Window Master Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

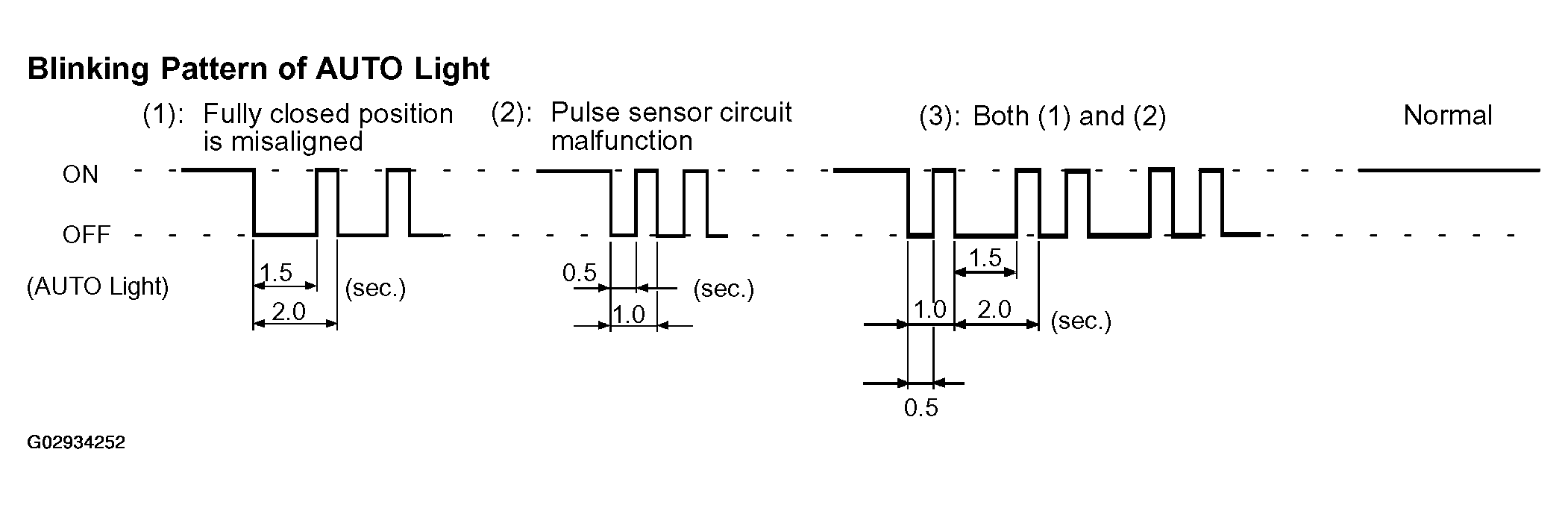

    Fig 2: Blinking Pattern Of Auto Light
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. B: Go to step 4
2. C: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
3. A: Go to next step.
RESET POWER WINDOW REGULATOR MOTOR (DRIVER SIDE) (See RESET )
1. OK: END
2. NG: Go to next step.
CHECK WIRE HARNESS (MASTER SWITCH - MOTOR) (MASTER SWITCH - BODY GROUND)

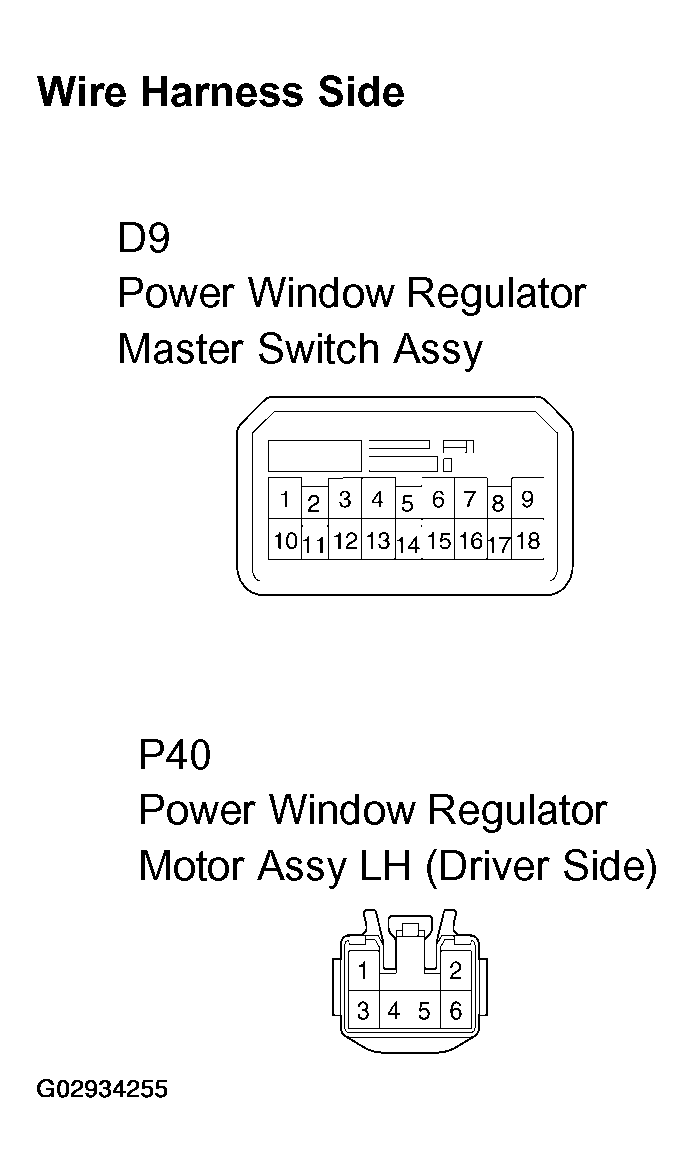

1. Disconnect the D9 master switch connector.
2. Disconnect the P40 motor connector (driver side).

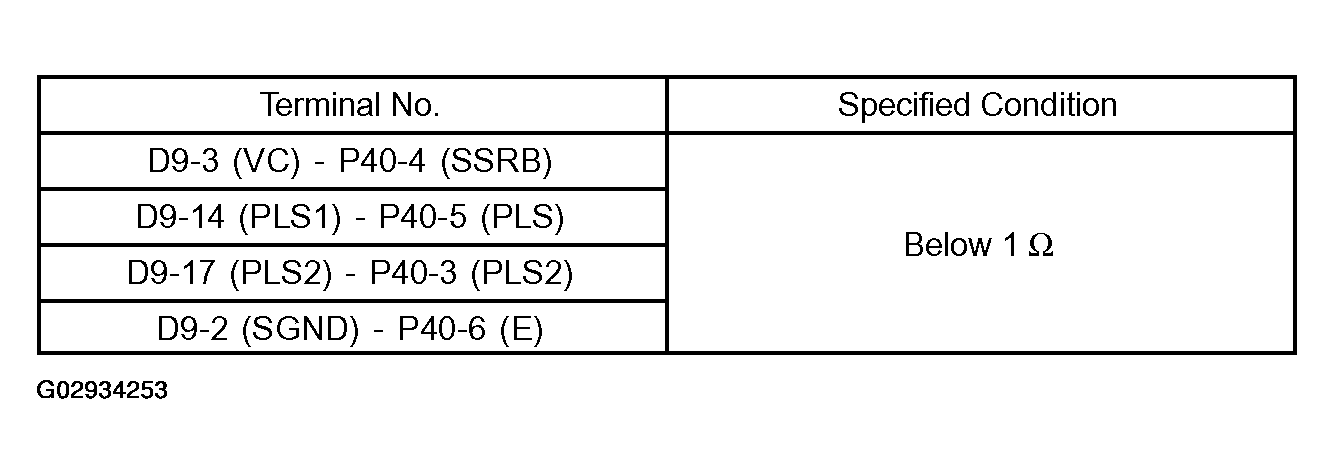

3. Check the resistance between the wire harness side connectors.
  Standard:

  Fig 4: Terminal Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

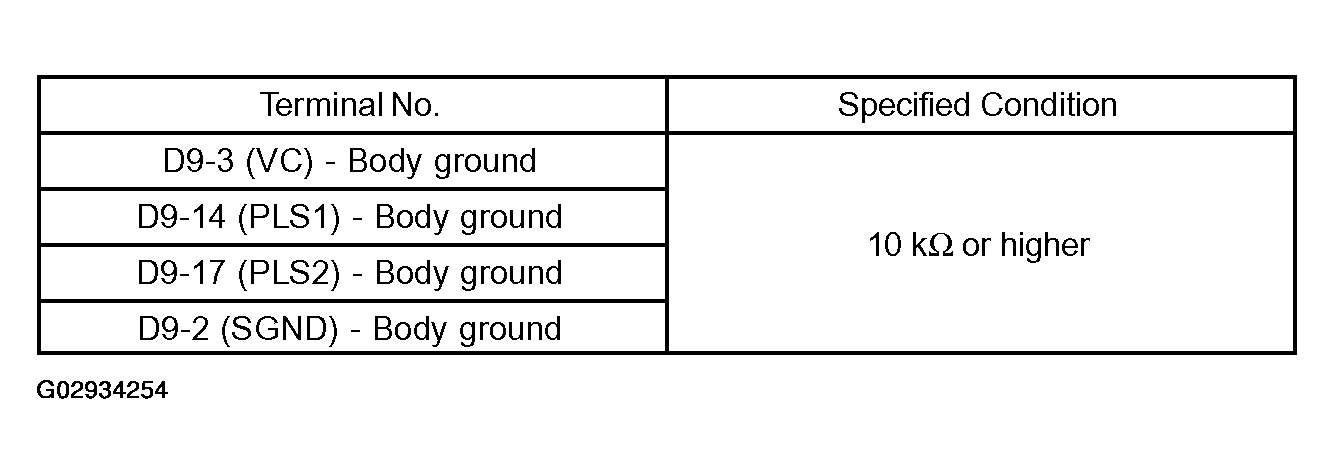

4. Check the resistance between the D9 master switch connector and body ground.
  Standard:

  Fig 5: Terminal Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (DRIVER SIDE)
