Inspection Procedure

CHECK POWER WINDOW LOCK SWITCH
1. Push the window lock switch OFF (normal) and check that the remote UP/DOWN function operates.

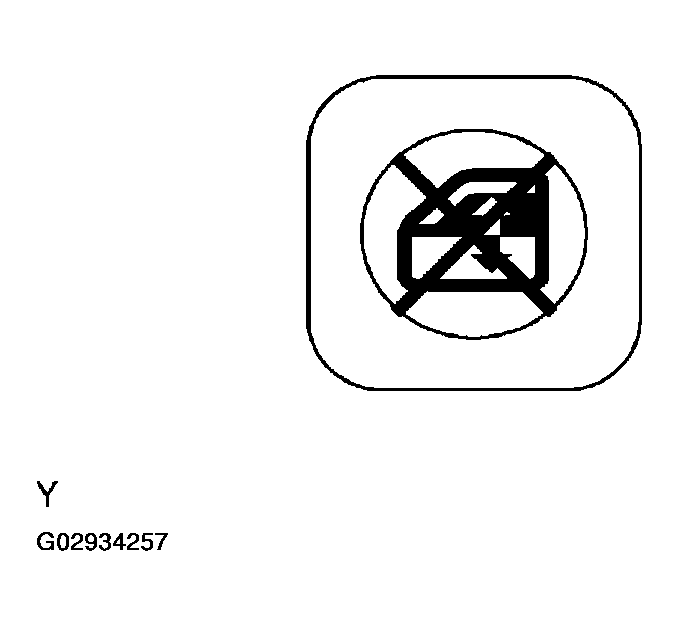

  Fig 1: Identifying Power Window Lock Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: END
2. NG: Go to next step.
CHECK MANUAL UP/DOWN FUNCTION
1. Check that the passenger side door window and slide door windows can be operated via each regulator switch.
1. NG: OTHER PROBLEM (See PROBLEM SYMPTOMS TABLE )
2. OK: Go to next step.
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
NOTE: Inspect the switch with the non operational remote function.
1. Remove the master switch.
2. Check the resistance between the terminals of the master switch when each switch is operated, as shown in the table below.

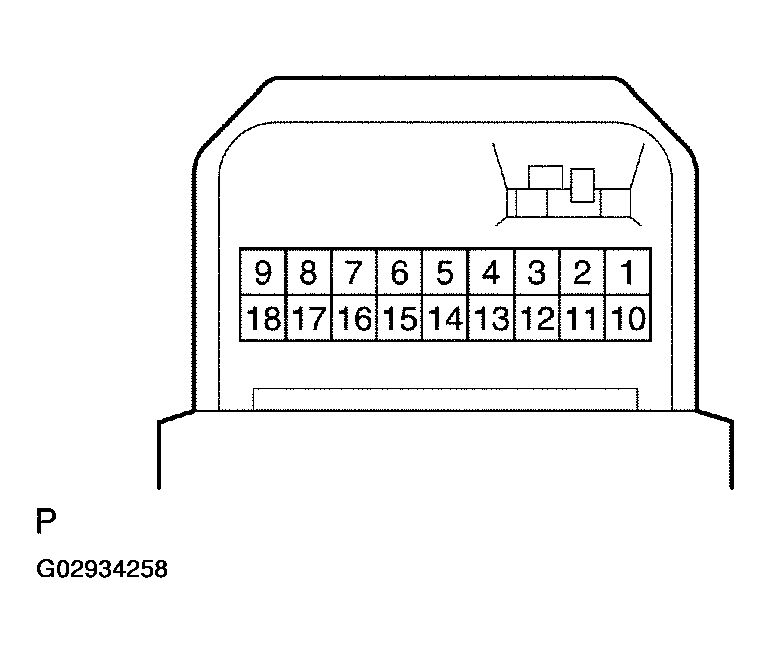

  Fig 2: Identifying Power Window Regulator Master Switch Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Passenger side switch

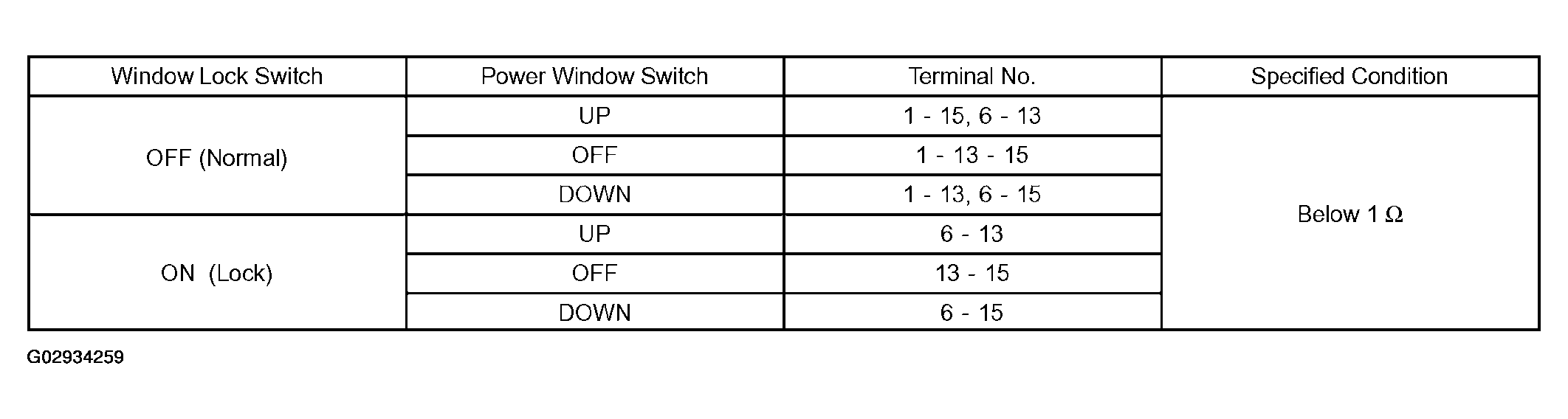

  Fig 3: Terminal Specified Condition Table (Passenger Side Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Rear LH switch

  Fig 4: Terminal Specified Condition Table (Rear LH Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Rear RH switch

  Fig 5: Terminal Specified Condition Table (Rear RH Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (MASTER SWITCH - EACH REGULATOR SWITCH)
