Fuel Suction Tube Assembly W/Pump & Gage: Components

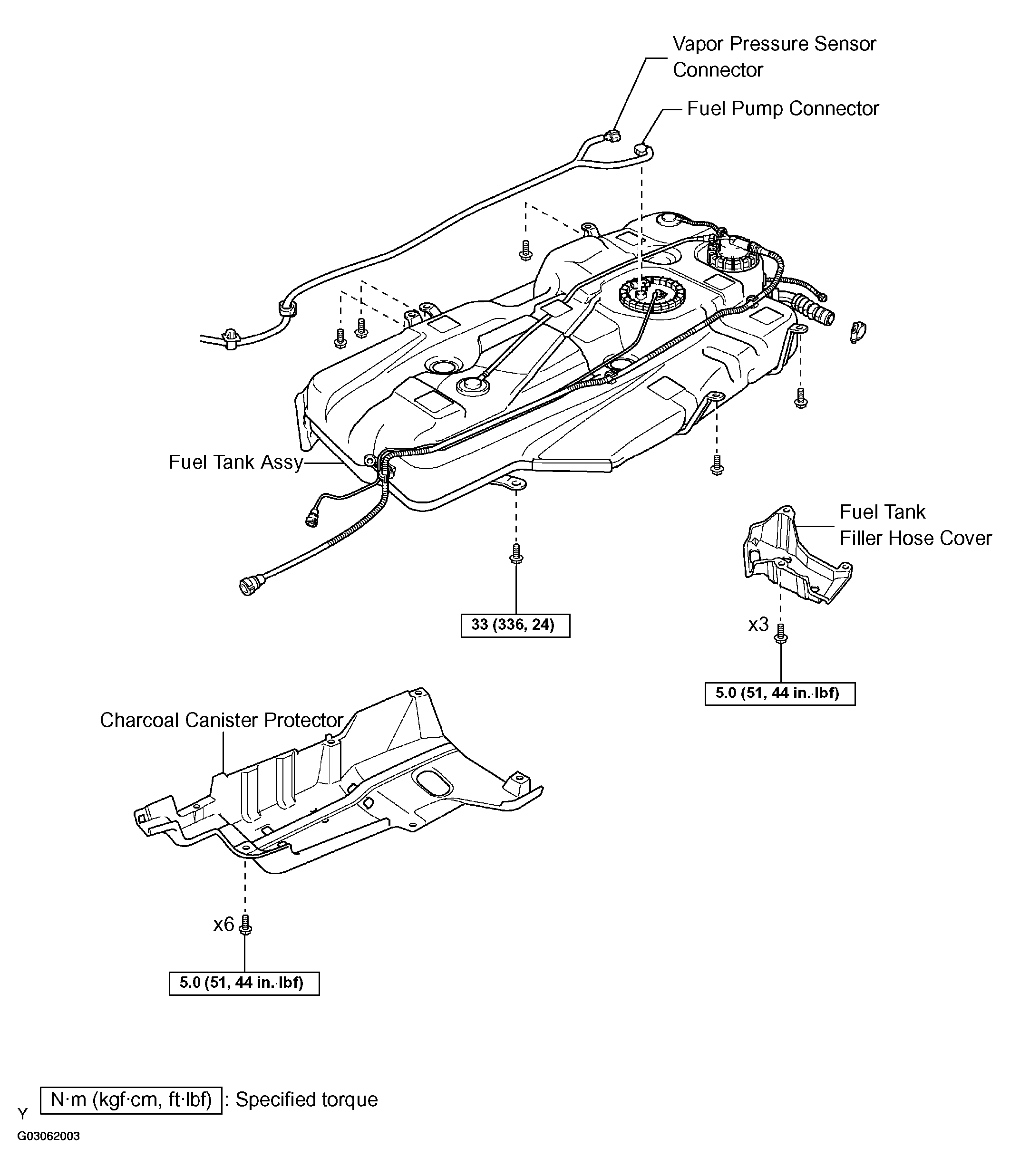

Fig 1: Exploded View Of Fuel Suction Tube Assembly W/Pump & Gage (1 Of 3)
G03062003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

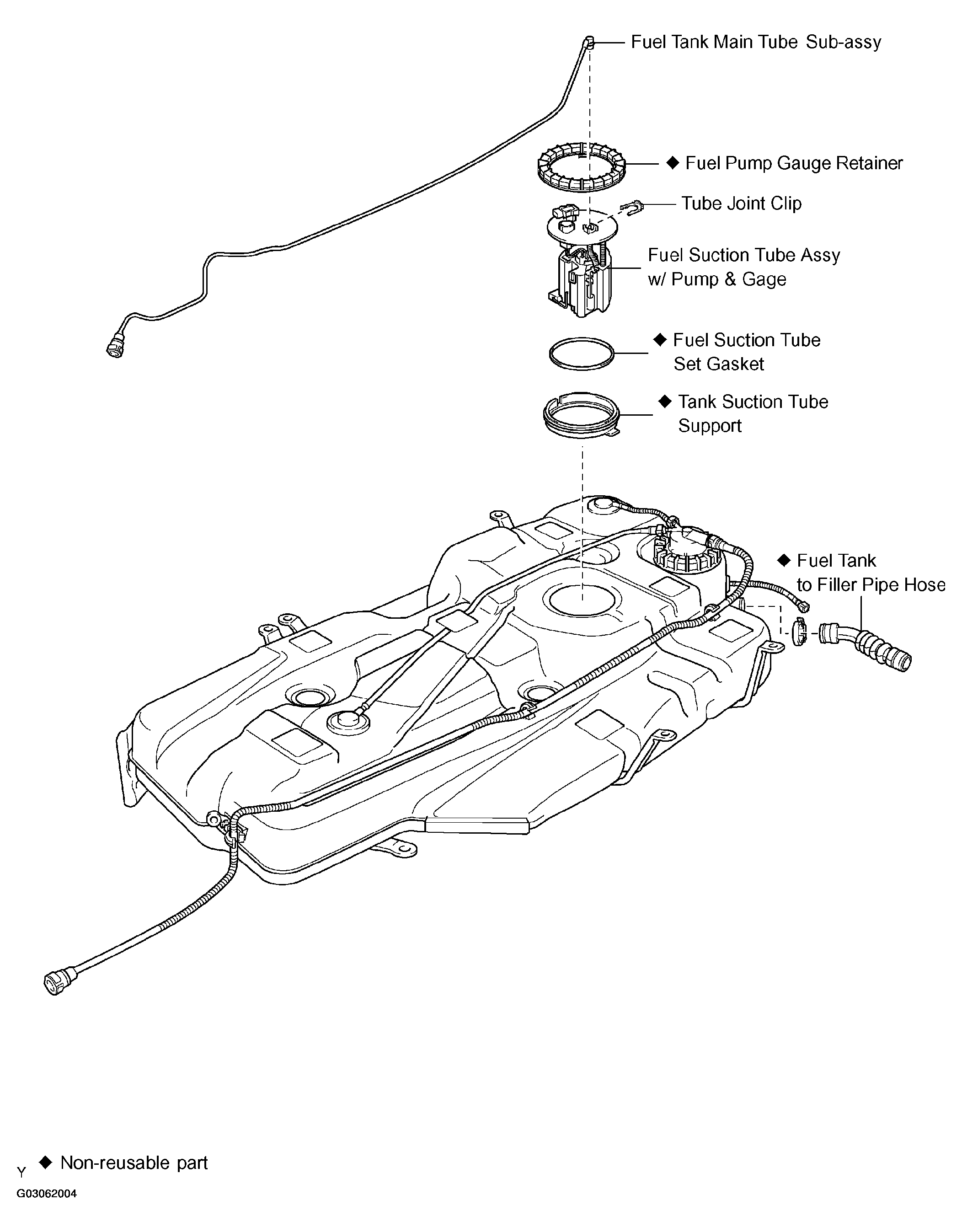

Fig 2: Exploded View Of Fuel Suction Tube Assembly W/Pump & Gage (2 Of 3)
G03062004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

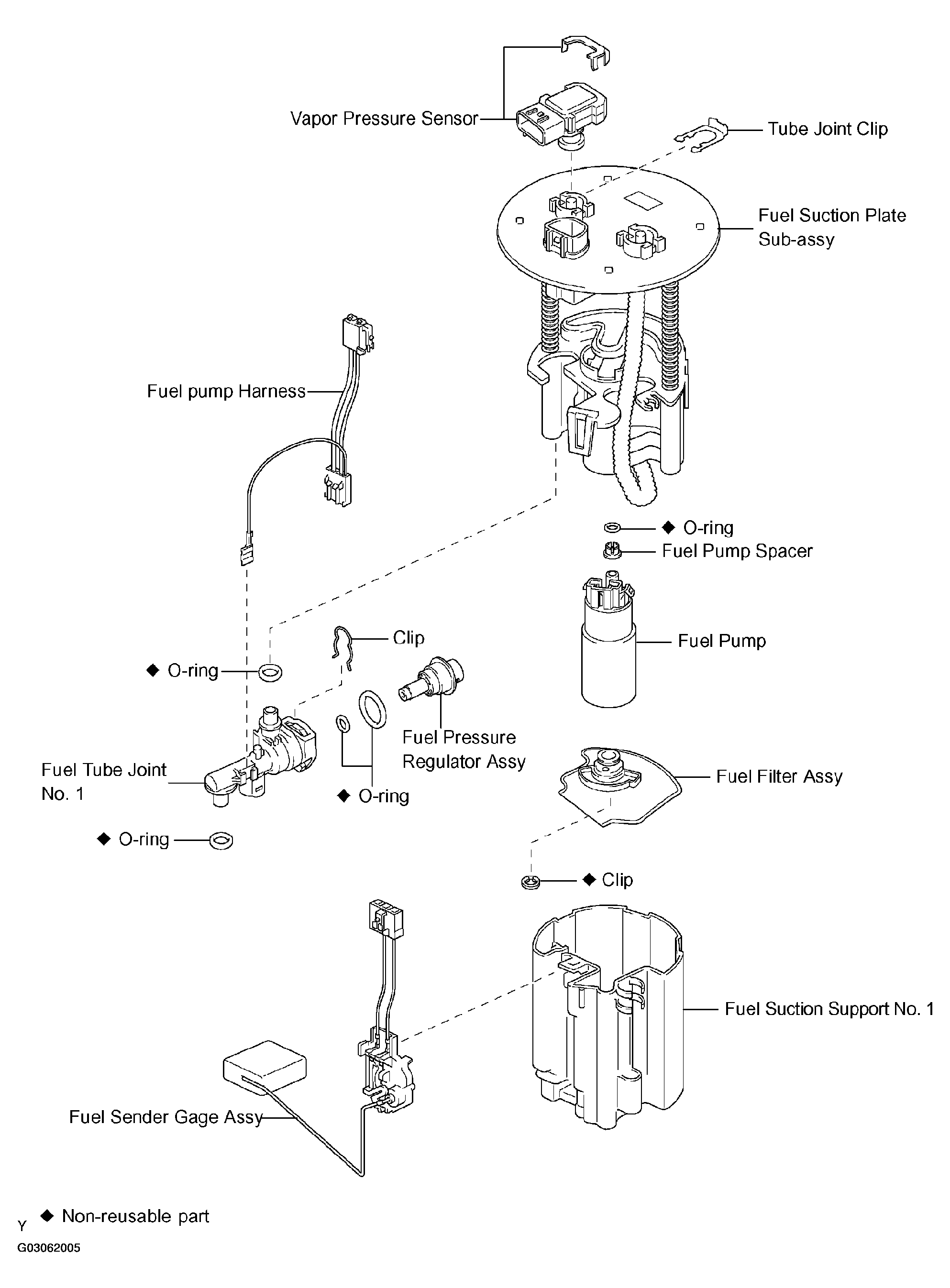

Fig 3: Exploded View Of Fuel Suction Tube Assembly W/Pump & Gage (3 Of 3)
G03062005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
