Circuit Description

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

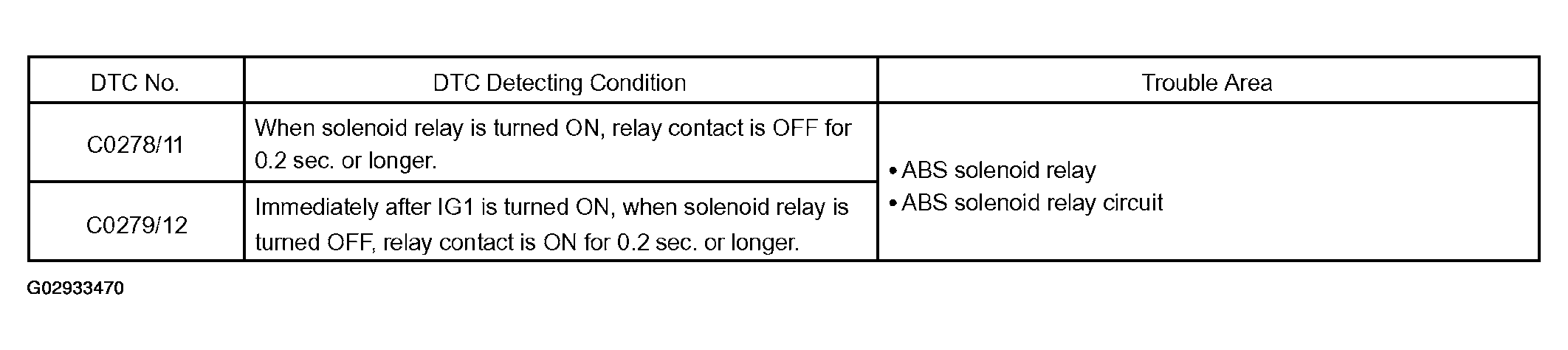

Fig 1: DTC Table (C0278/11,C0279/12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
