Steering Angle Sensor: Replacement

  1. PRECAUTION (See  AIR BAG SAFETY PRECAUTIONS  )
  2. SEPARATE BATTERY NEGATIVE TERMINAL
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE HORN BUTTON ASSY (See  DRIVER-SIDE AIR BAG MODULE  )
  5. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )
  6. REMOVE STEERING COLUMN LOWER COVER (See  OVERHAUL  )
  7. REMOVE SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE  )
  8. REMOVE STEERING SENSOR
    1. Release the claw fittings and remove the steering sensor from the spiral cable.
    Fig 1: Removing Steering Sensor From Spiral Cable
    G03062828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL STEERING SENSOR
    1. Install the steering sensor onto the spiral cable.

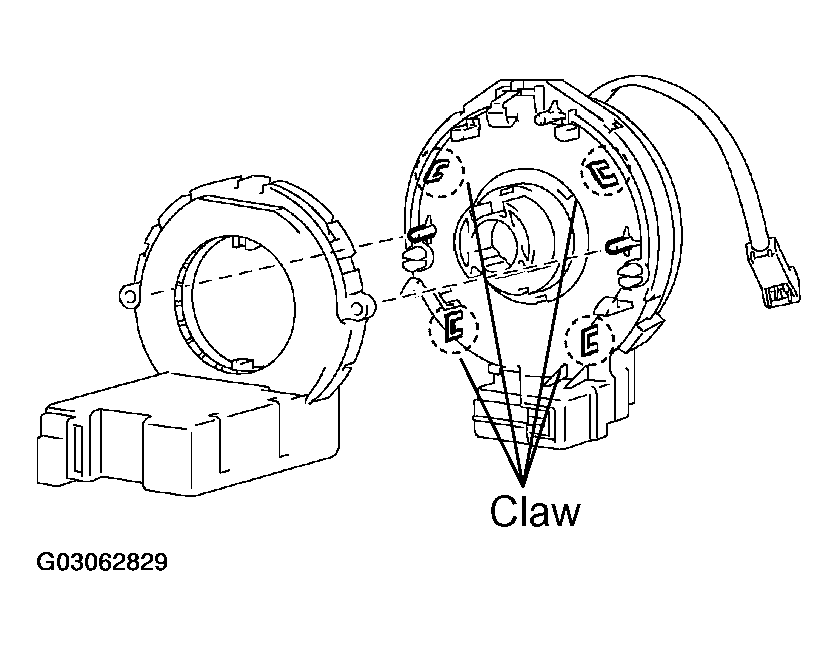

    Fig 2: Installing Steering Sensor From Spiral Cable
    G03062829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  11. INSTALL SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE  )
  12. INSTALL STEERING COLUMN LOWER COVER (See  OVERHAUL  )
  13. CENTER SPIRAL CABLE (See  SPIRAL CABLE  )
  14. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
  15. INSPECT STEERING WHEEL CENTER POINT
  16. INSTALL HORN BUTTON ASSY (See  DRIVER-SIDE AIR BAG MODULE  )
  17. INSPECT SRS WARNING LIGHT (See  SYSTEM OPERATION CHECK  )
