Steering Column: Removal
- REMOVE STEERING WHEEL PAD NOTE: If the airbag connector is disconnected with the ignition switch at ON or ACC, DTCs will be recorded.
- Place the front wheels facing straight ahead.
- Remove the 2 steering wheel lower No. 2 covers.

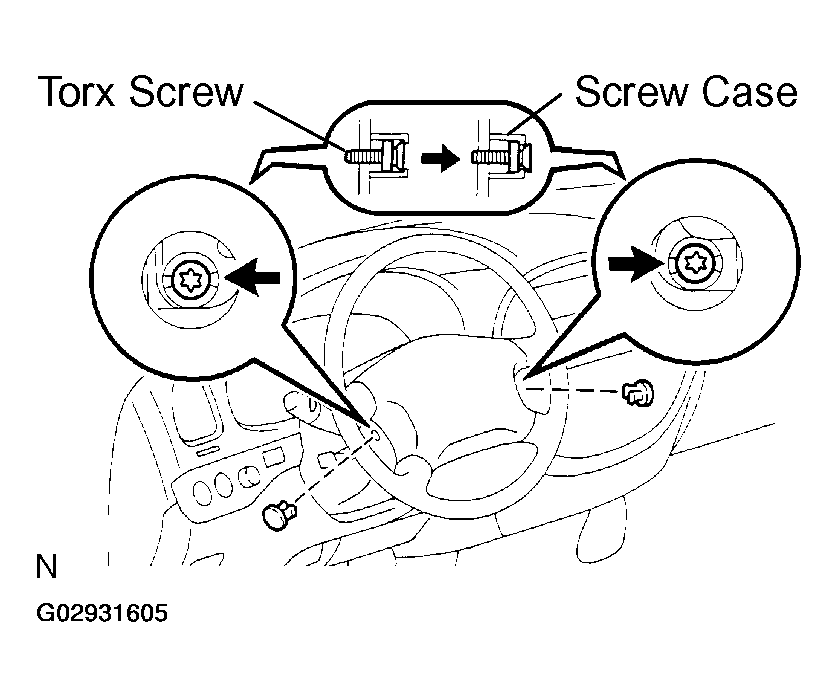

- Using a torx socket wrench, loosen the 2 torx screws.
HINT:
Loosen the screw until the groove along the screw circumference catches on the screw case.

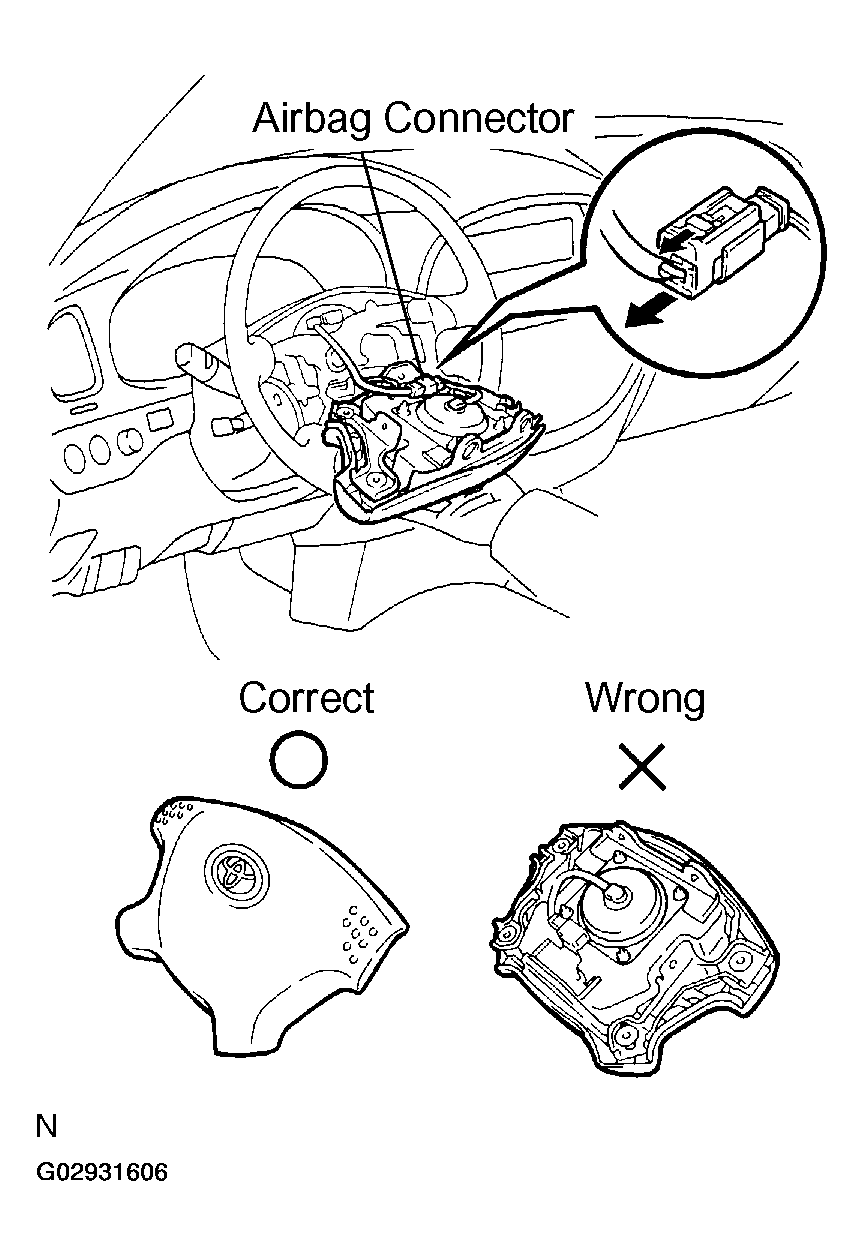

- Pull out the wheel pad from the steering wheel and disconnect the airbag connector and horn connector.CAUTION:
- When storing the wheel pad, keep the upper surface of the pad facing upward.
- Never disassemble the wheel pad.
NOTE: When removing the wheel pad, take care not to pull the air-bag wire harness.
- REMOVE STEERING WHEEL
- Remove the steering wheel set nut.

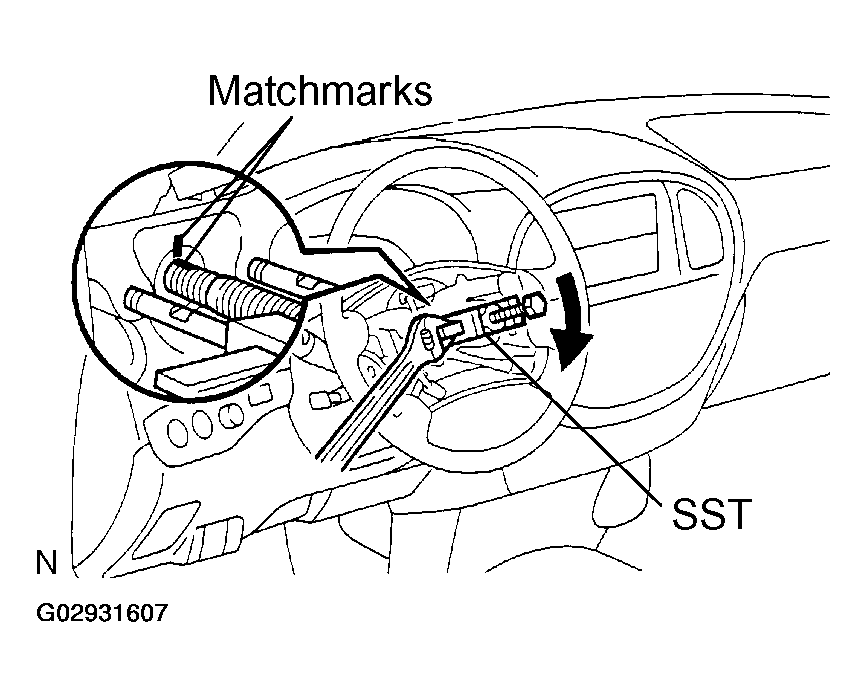

- Place matchmarks on the steering wheel and main shaft assembly.
- Using SST, remove the wheel.
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
- Disconnect the connector.
- REMOVE UPPER AND LOWER COLUMN COVERS
Remove the 3 screws, upper and lower column covers.
- REMOVE COMBINATION SWITCH WITH SPIRAL CABLE
- M/T:
Disconnect the 3 connectors.
- A/T:
Disconnect the 4 connectors.
- Disconnect the airbag connector.
- Remove the 3 screws and combination switch.
- M/T:
- REMOVE SPIRAL CABLE (See
COMPONENTS
) NOTE: Do not disassemble the cable or apply oil to it.
- REMOVE LOWER LH FINISH PANEL
- Remove the 2 screws and disconnect the hood lock release lever from the panel.
- Remove the 4 panel set bolts and lower LH finish panel.
- REMOVE NO. 2 HEATER TO REGISTER DUCT
- REMOVE BRAKE PEDAL RETURN SPRING
- REMOVE NO. 2 INTERMEDIATE SHAFT ASSEMBLY

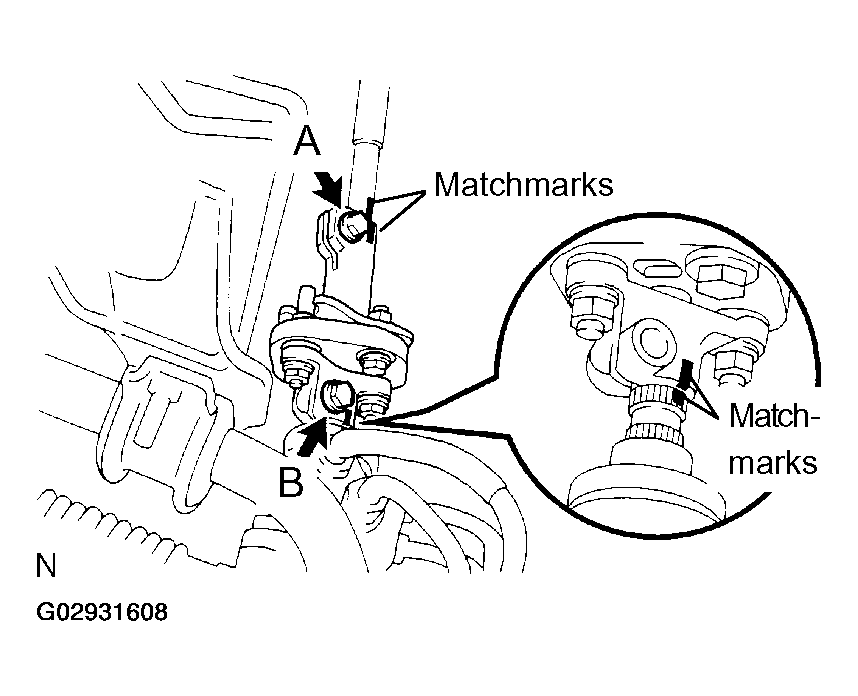

- Place matchmarks on the No. 2 universal joint assembly and No. 2 intermediate shaft assembly.
- Remove the "A" bolt.
- Place matchmarks on the No. 2 intermediate shaft assembly and control valve shaft.
- Remove the "B" bolt.
- Slide the No. 2 intermediate shaft assembly and remove the No. 2 intermediate shaft assembly.
- REMOVE COLUMN HOLE COVER NO. 2

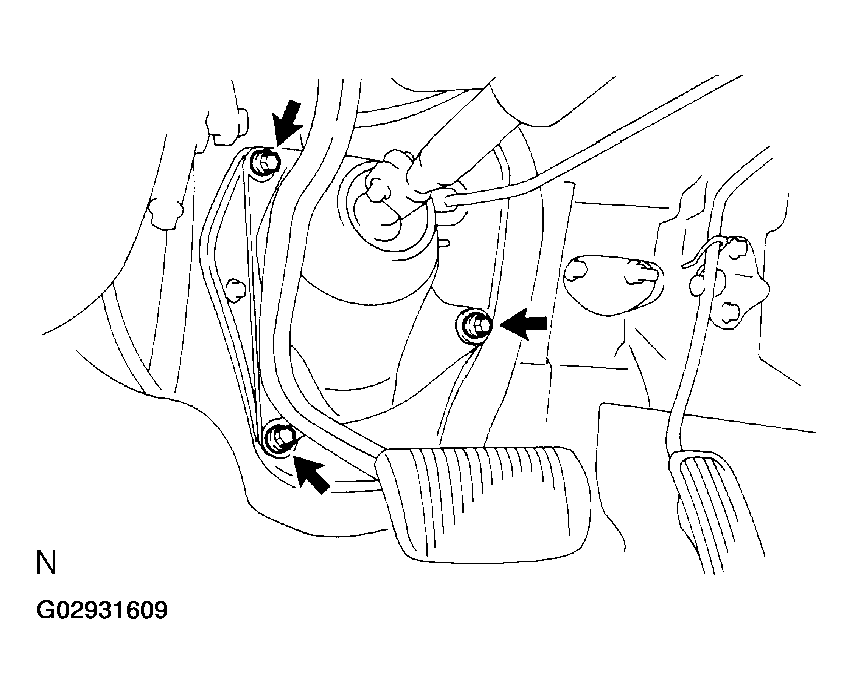

Remove the 3 bolts and column hole cover No. 2.
- A/T: DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
Disconnect the cable assembly from the column shift lever assembly.
- REMOVE STEERING COLUMN ASSEMBLY WITH NO. 2 UNIVERSAL JOINT ASSEMBLY
- Disconnect the connectors.
- Remove the 4 steering column set nuts.
- Pull out the steering column assembly with No. 2 universal joint assembly.
- DISCONNECT NO. 2 UNIVERSAL JOINT ASSEMBLY

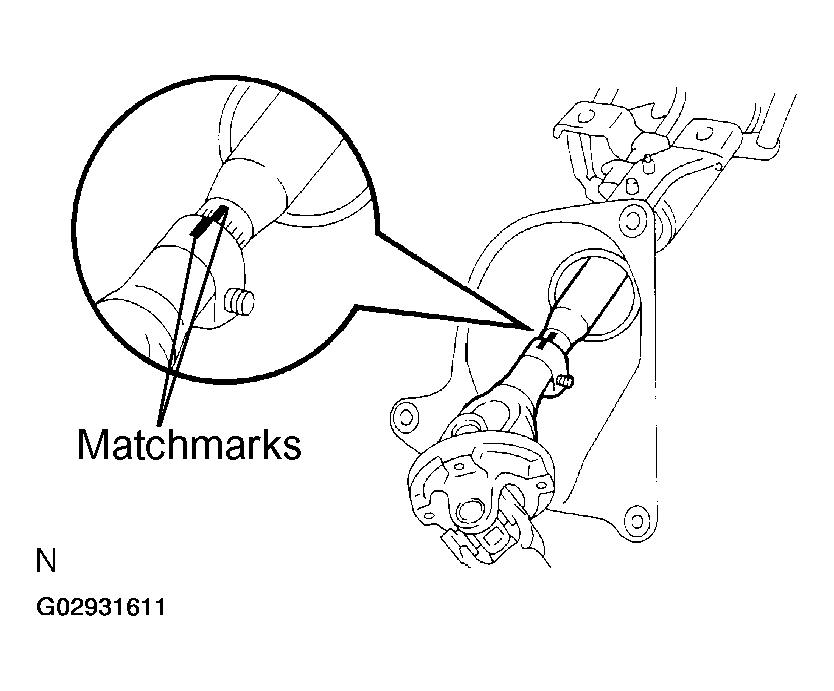

- Place matchmarks on the steering column assembly and No. 2 universal joint assembly.
- Remove the bolt.
- Remove the column hole cover No. 2.
