Circuit Description

The ECM detects the signal from the transfer L4 position switch.

This DTC indicates that the transfer L4 position switch remains ON.

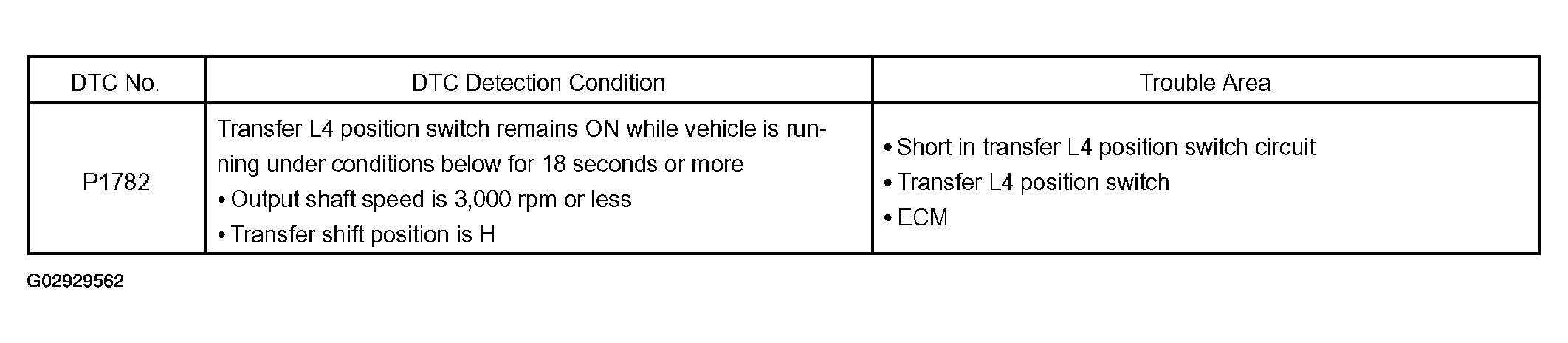

Fig 1: DTC P1782 Detection Condition & Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
