Circuit Description

The shift solenoid valve SL is turned ON and OFF by signals from the ECM to control the hydraulic pressure acting on the lock-up relay valve, which then controls operation of the lock-up clutch.

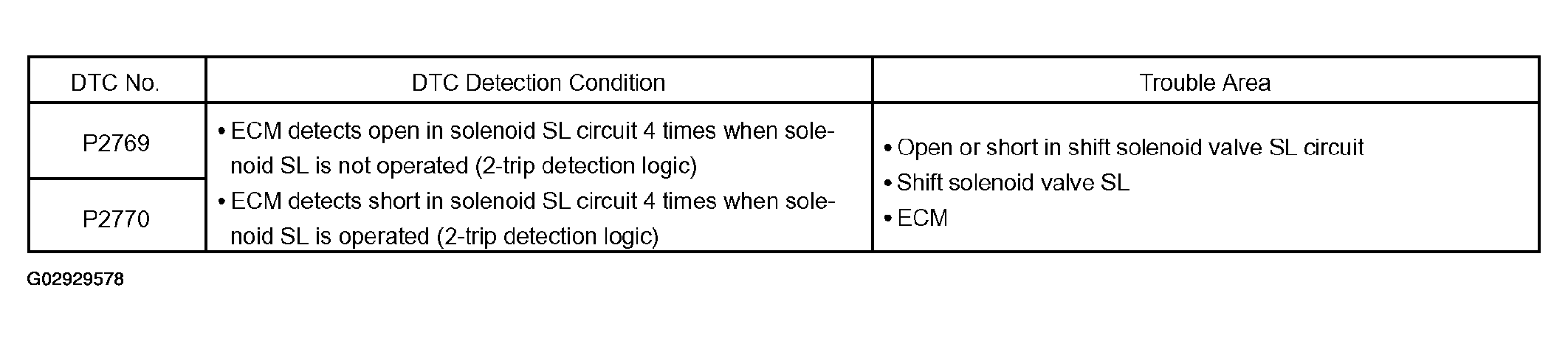

Fig 1: DTC P2769 & P2770 Detection Condition & Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fail-safe function

If the ECM detects a malfunction, it turns the shift solenoid valve SL OFF.
