Terminals Of ECM

5VZ-FE:

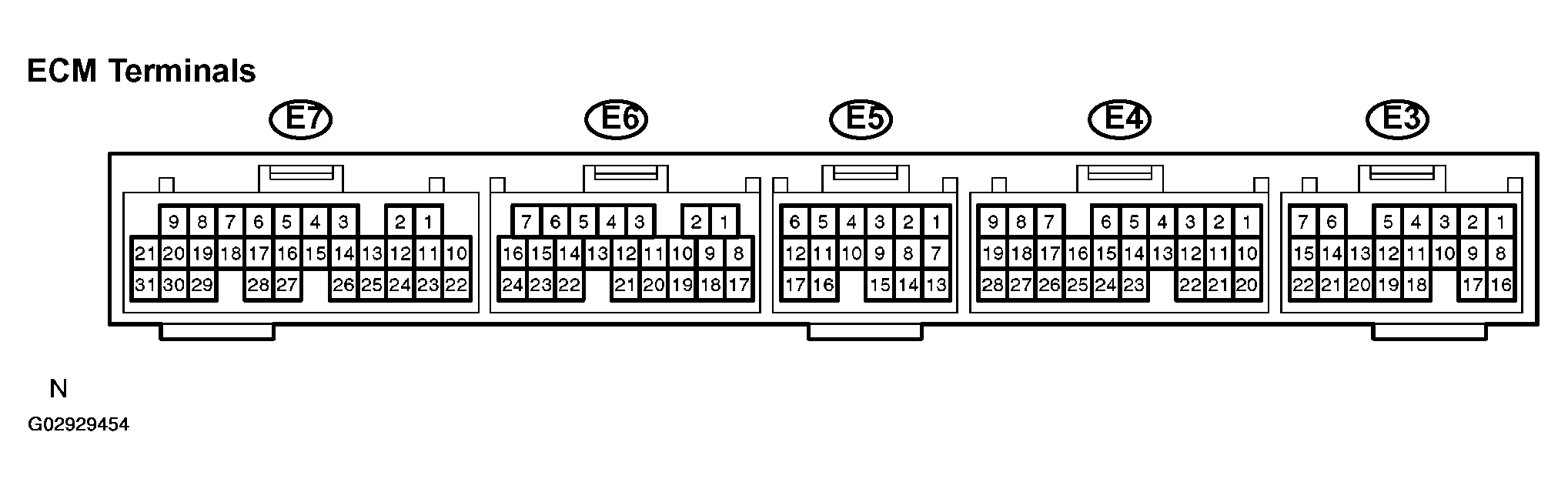

Fig 1: Identifying ECM Terminals (5VZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in the chart below.

In the table, first follow the information under "Condition". Next, use the column "Symbols (Terminal No.) for the terminals to be inspected. The standard voltage between the terminals is shown in the column "Specified Condition Voltage". It is useful to refer to the illustration above to confirm the location of ECM terminals.

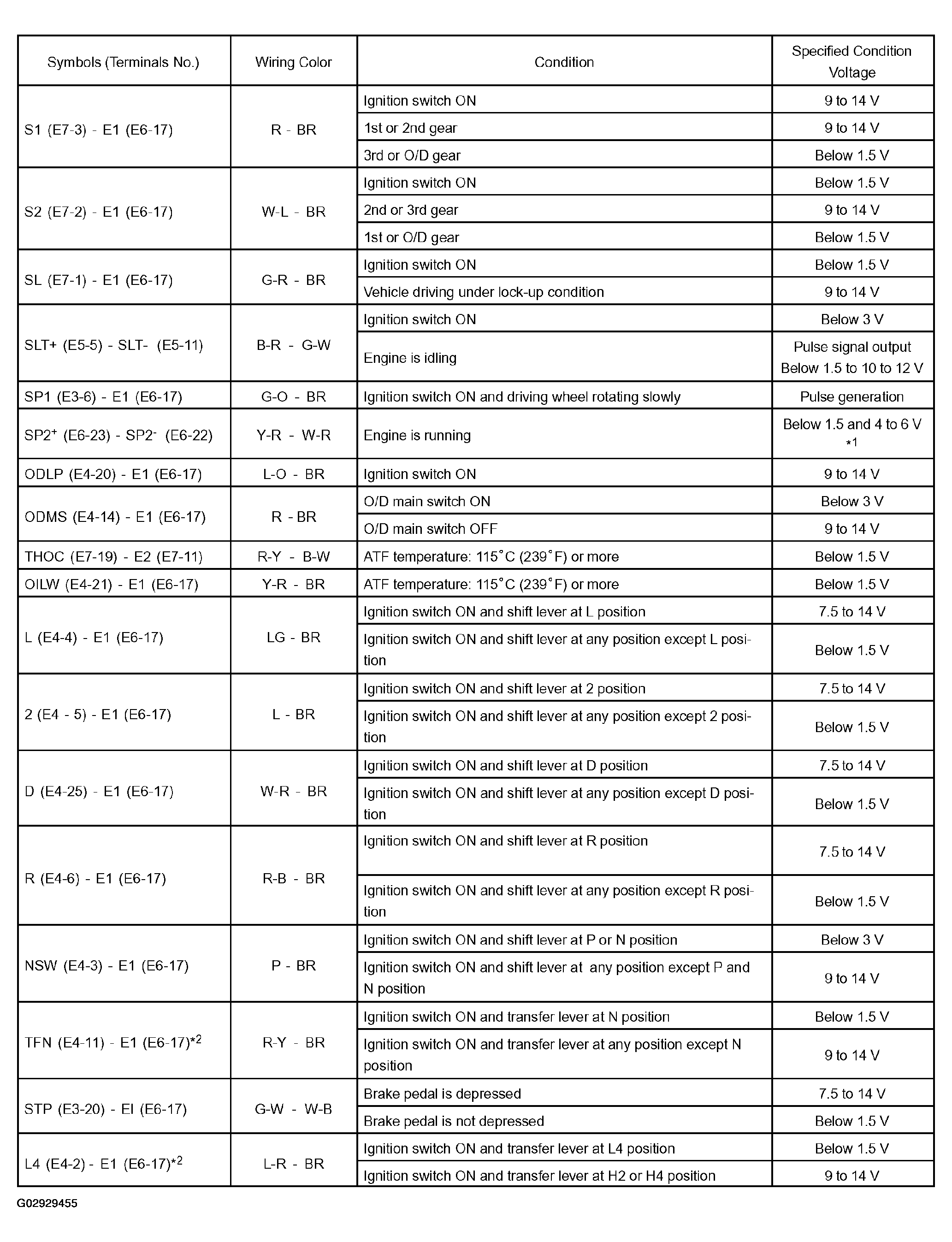

Fig 2: Terminals Condition & Voltage Specification Chart (5VZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2UZ-FE:

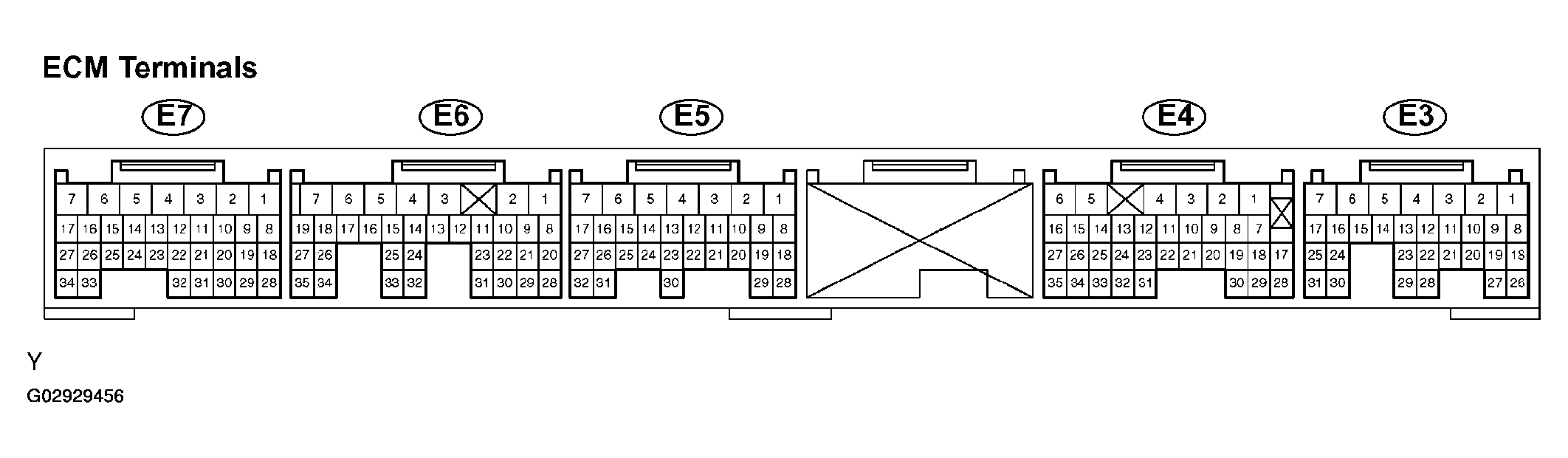

Fig 3: Identifying ECM Terminals (2UZ-FE)

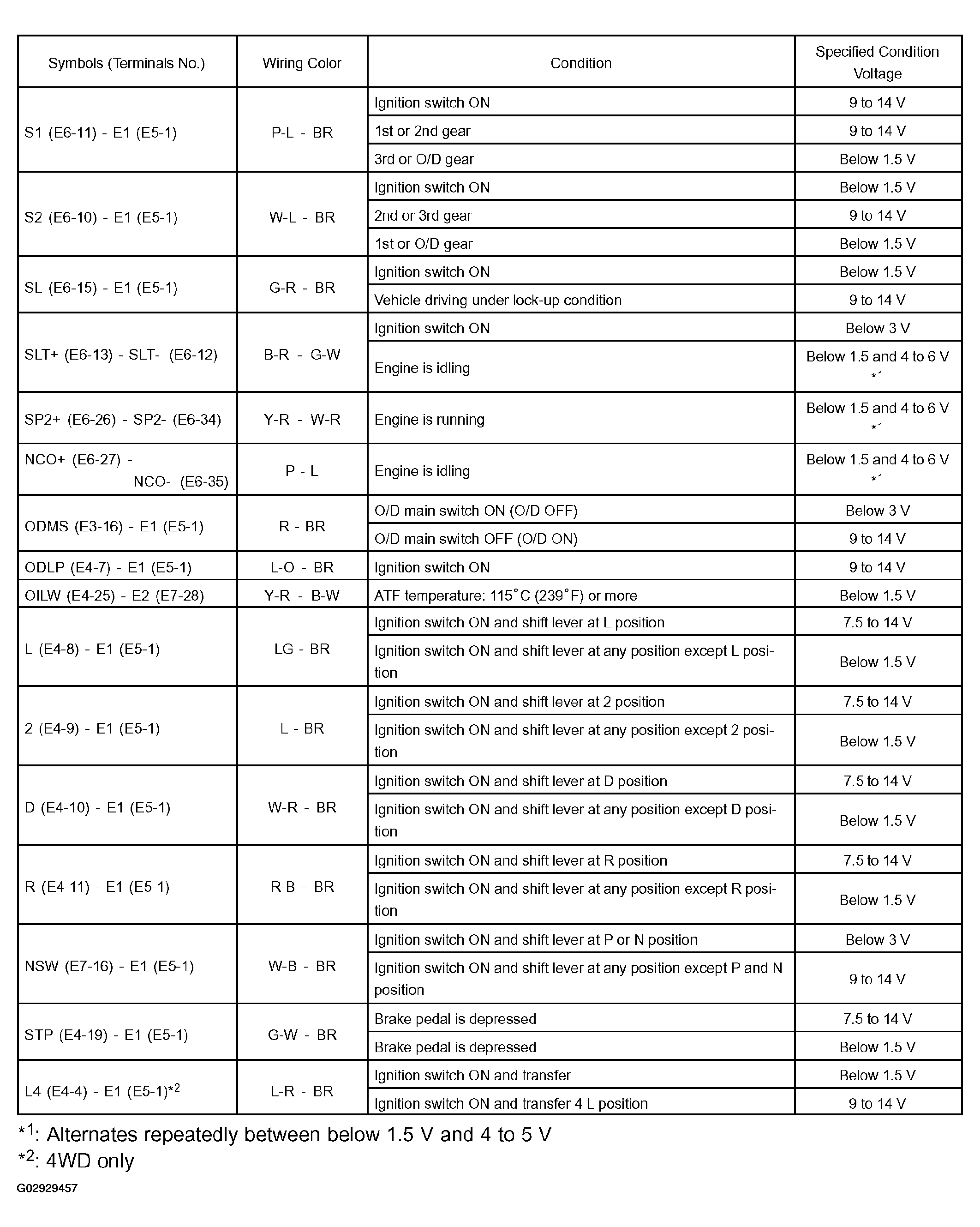

Fig 4: Terminal Condition & Specific Voltage Chart (2UZ-FE)
