DTC P0110: Intake Air Temperature Circuit; DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input: Wiring Diagram

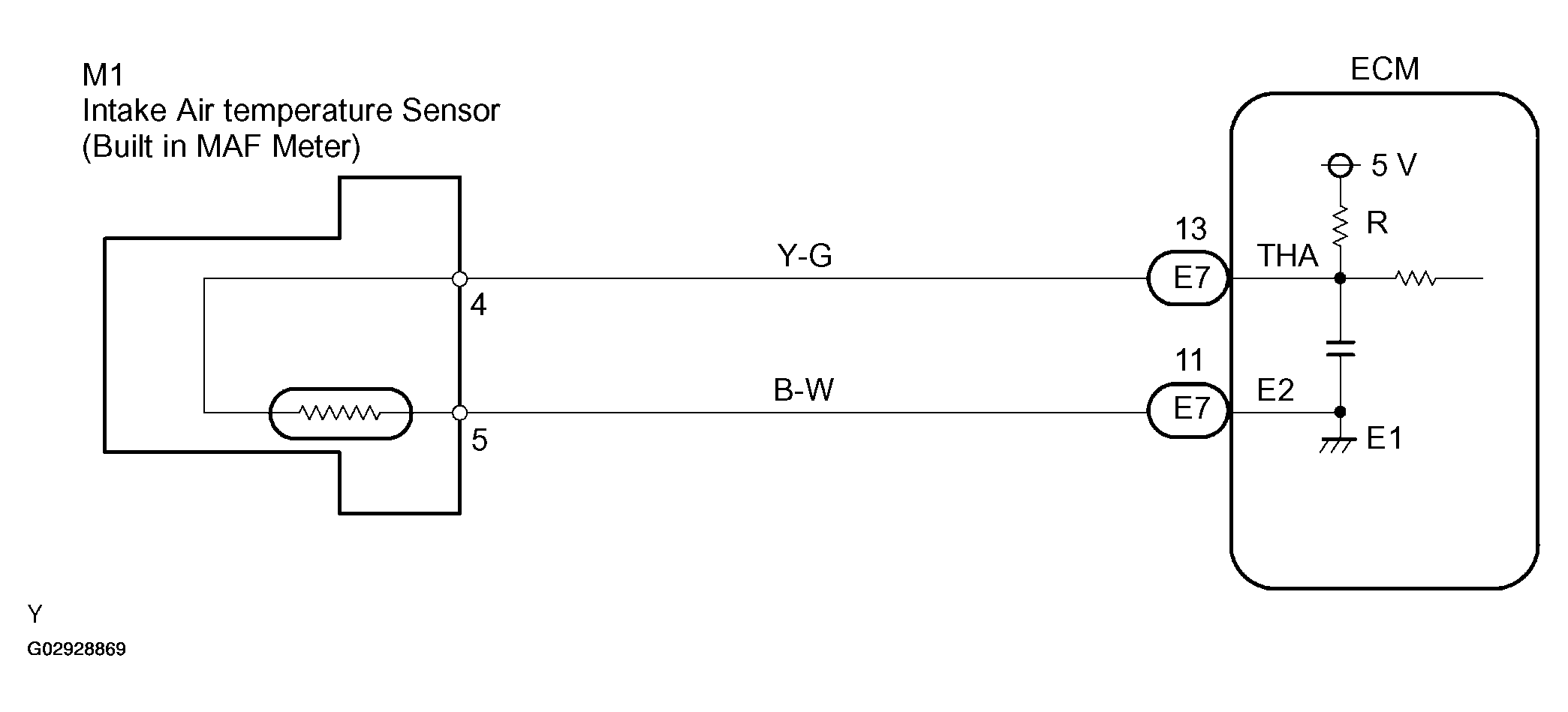

Fig 1: ECM To Intake Air Temperature Sensor Connection Diagram
G02928869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
