Problem Symptoms Table

DOOR LOCK CONTROL

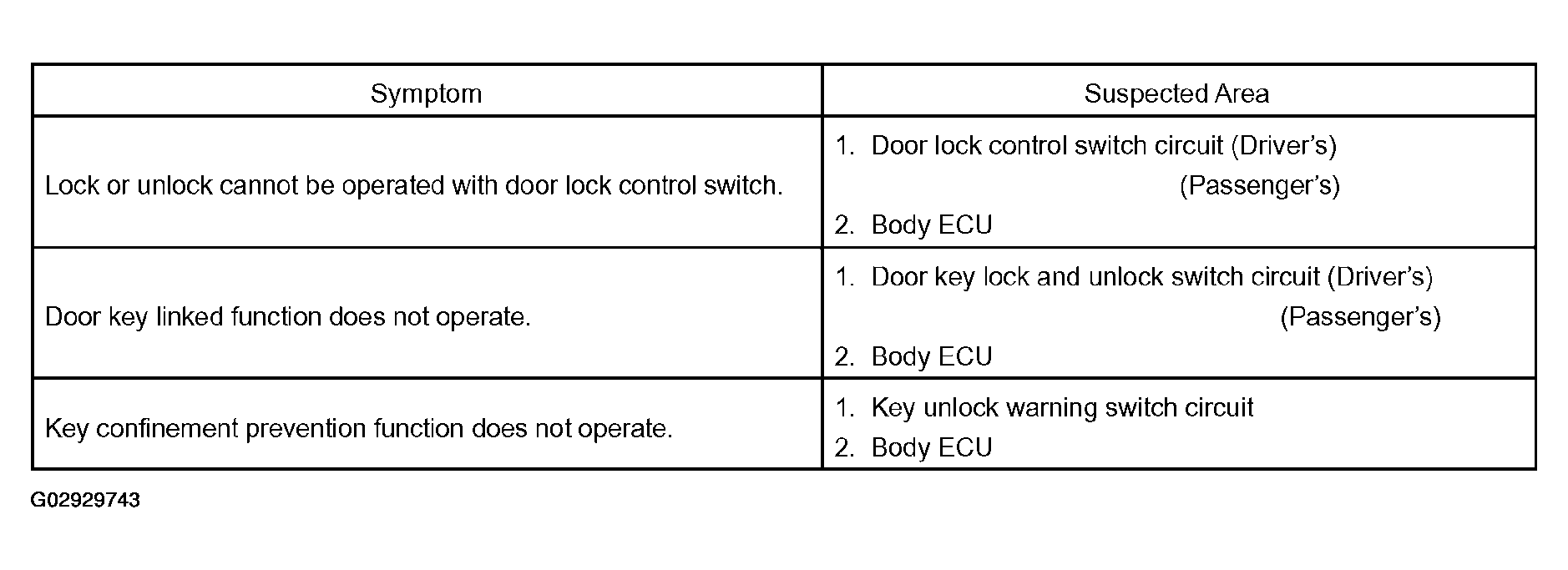

Fig 1: Problem Symptom Table (Door Lock Control)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

THEFT DETERRENT SYSTEM

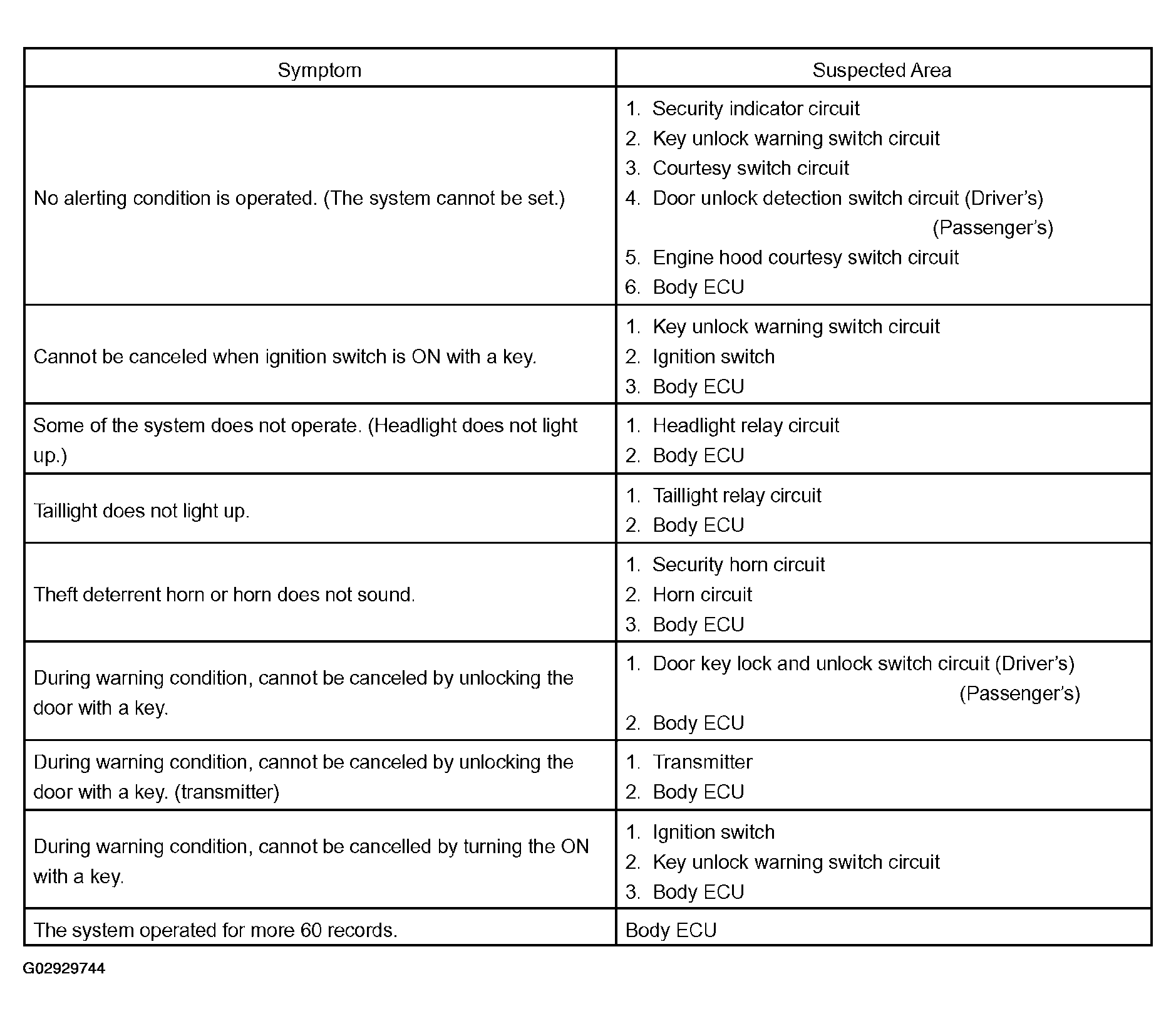

Fig 2: Problem Symptom Table (Theft Different System)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRELESS DOOR LOCK CONTROL

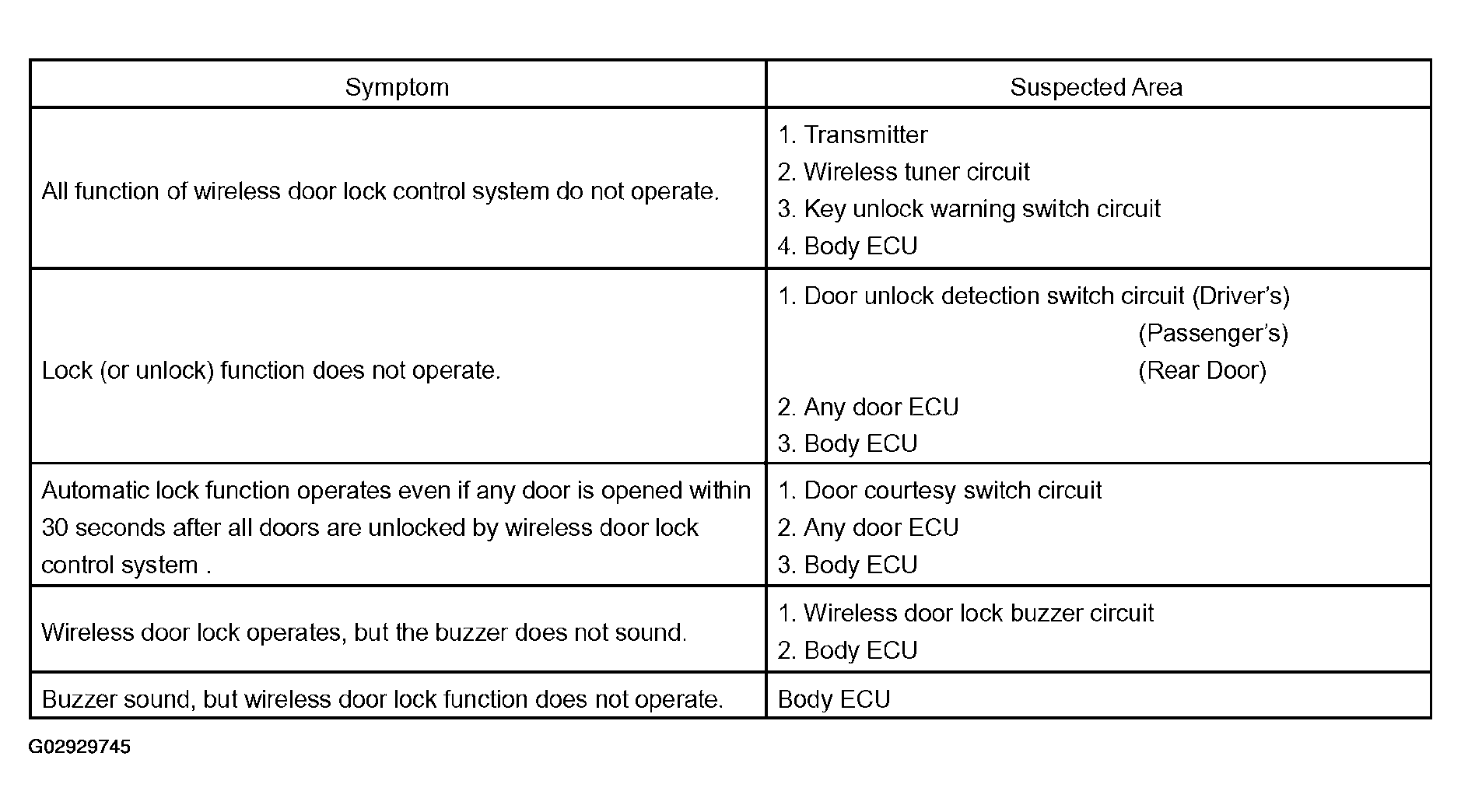

Fig 3: Problem Symptom Table (Wireless Door Lock Control)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OTHERS

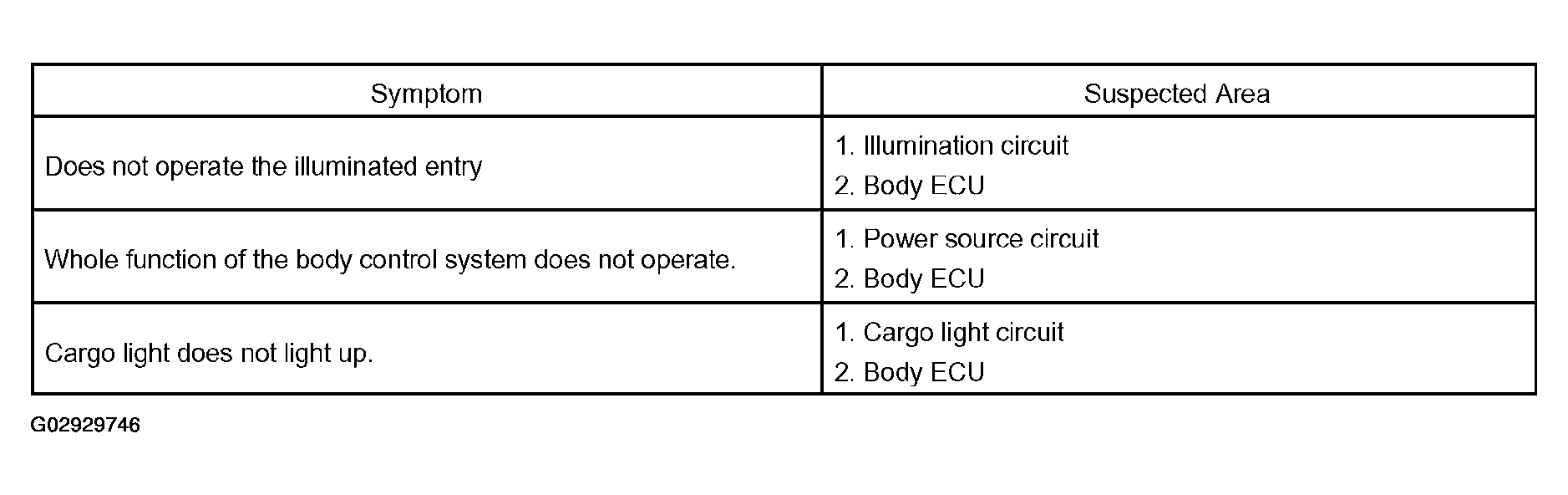

Fig 4: Problem Symptom Table (Others)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
