Back Window Glass: Components

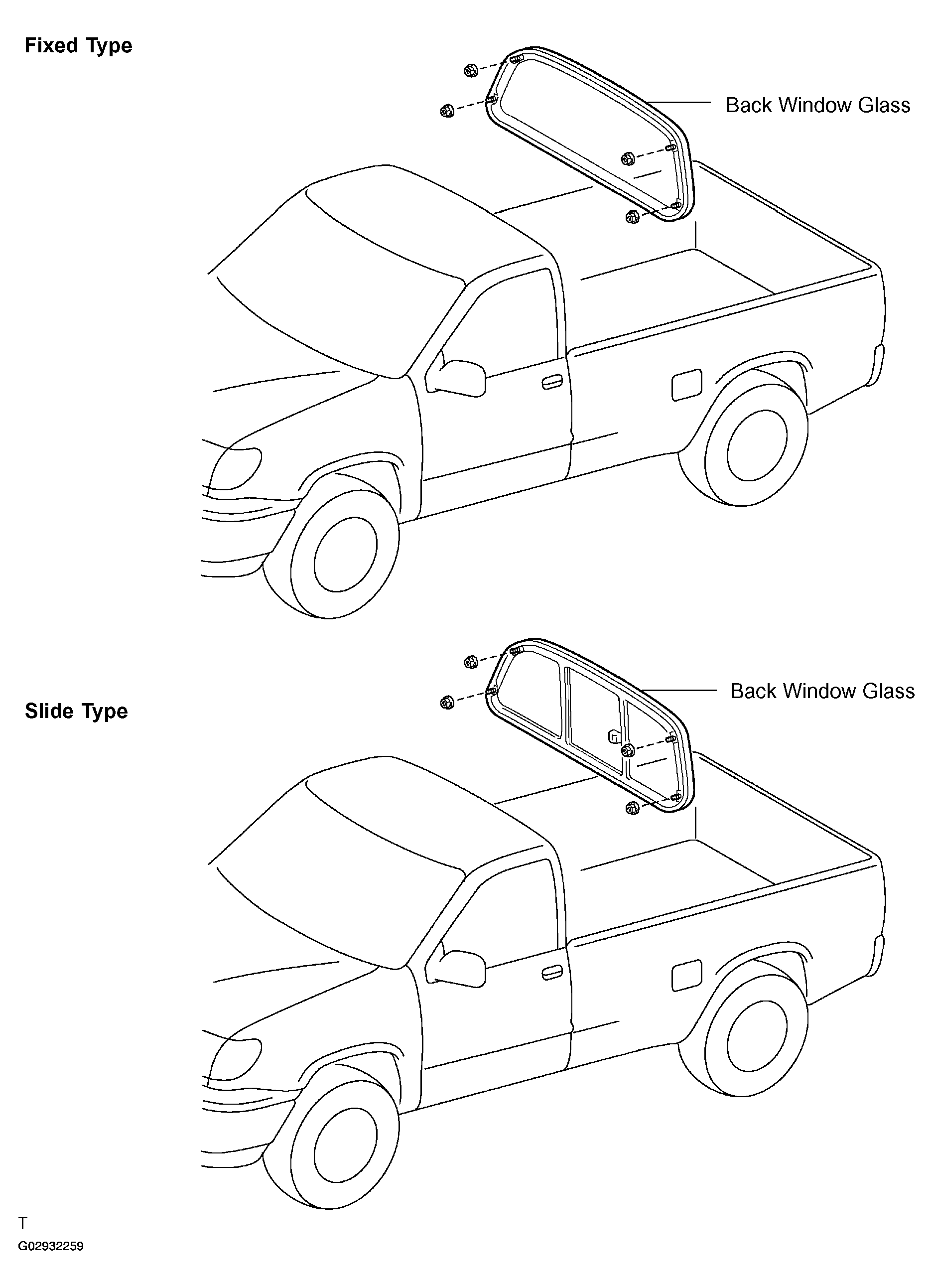

Fig 1: Removing/Installing Back Window Glass (Non-Power)
G02932259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

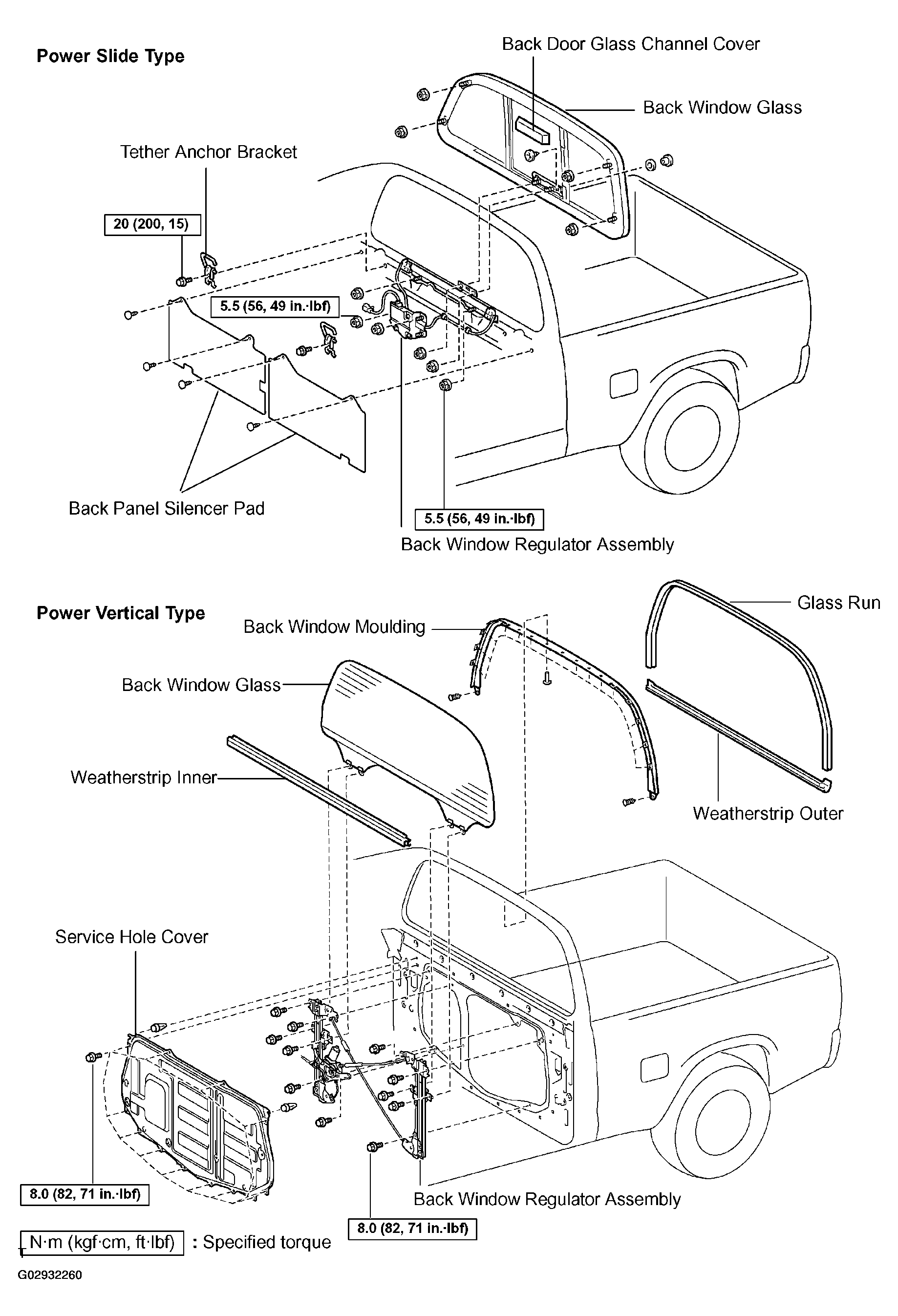

Fig 2: Removing/Installing Back Window Glass (Power)
G02932260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
