Abs Actuator: Components

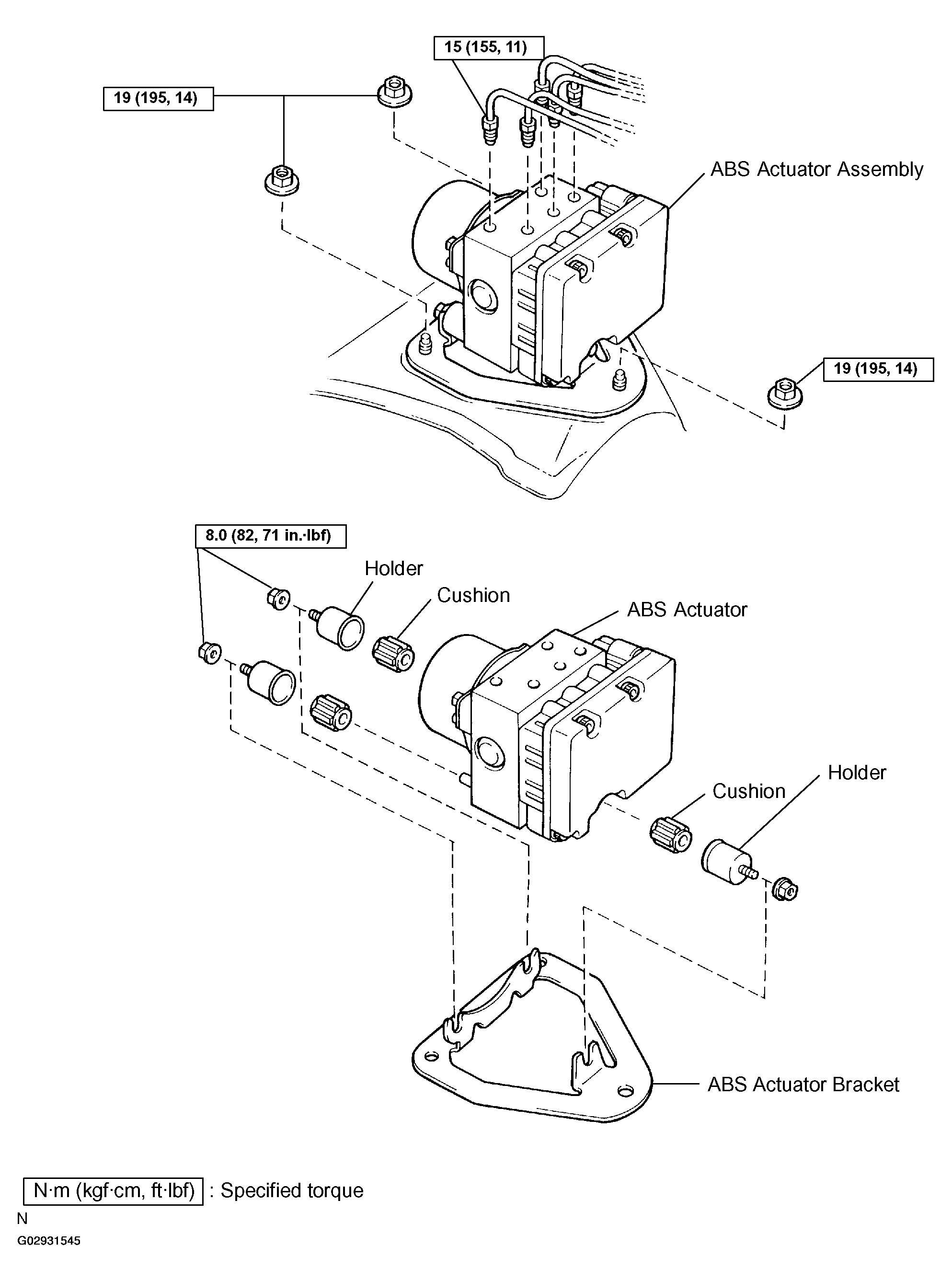

Fig 1: Locating ABS Actuator Components (1 Of 2)
G02931545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

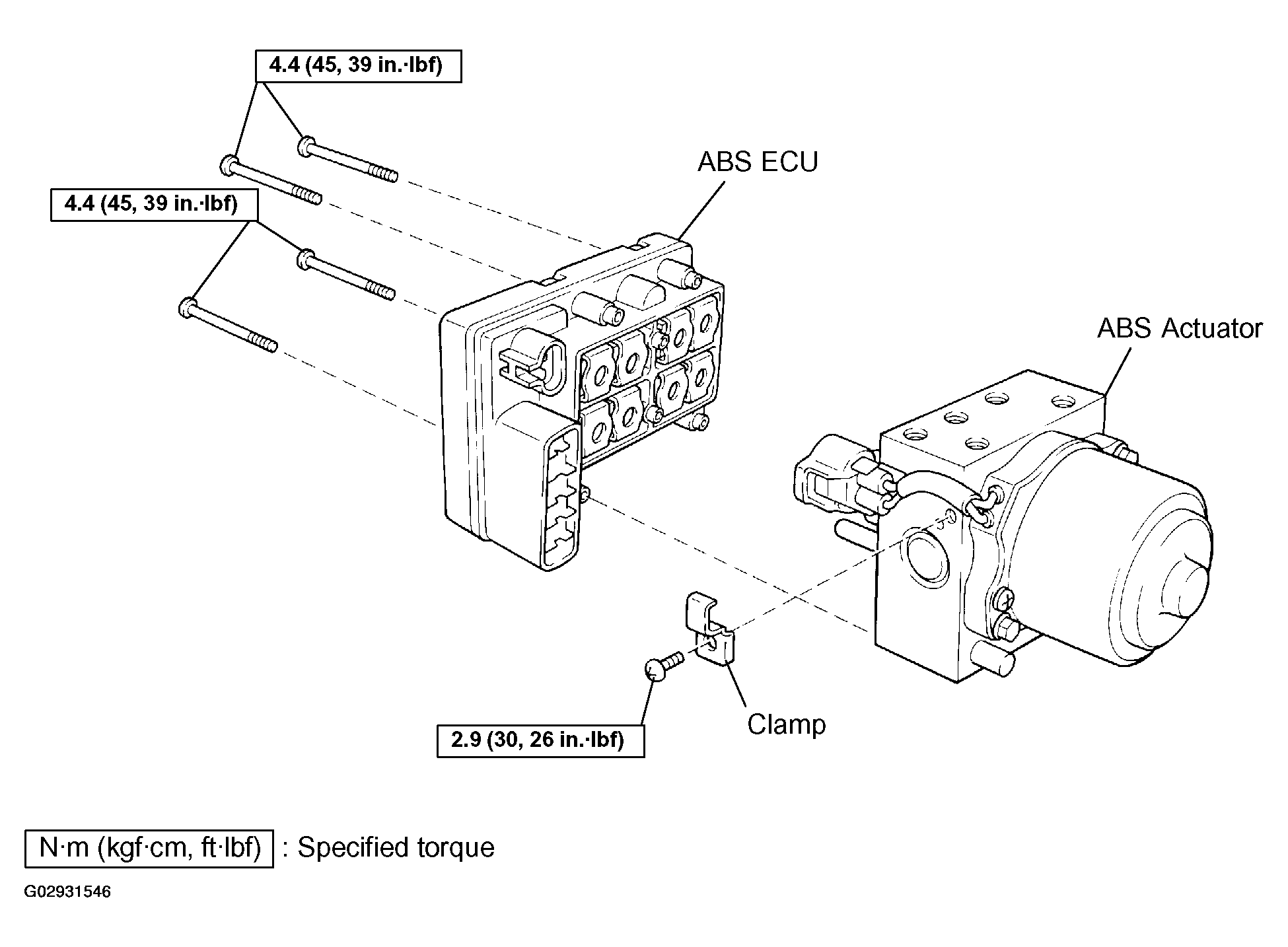

Fig 2: Locating ABS Actuator Components (2 Of 2)
G02931546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
