Combination Meter: Circuit

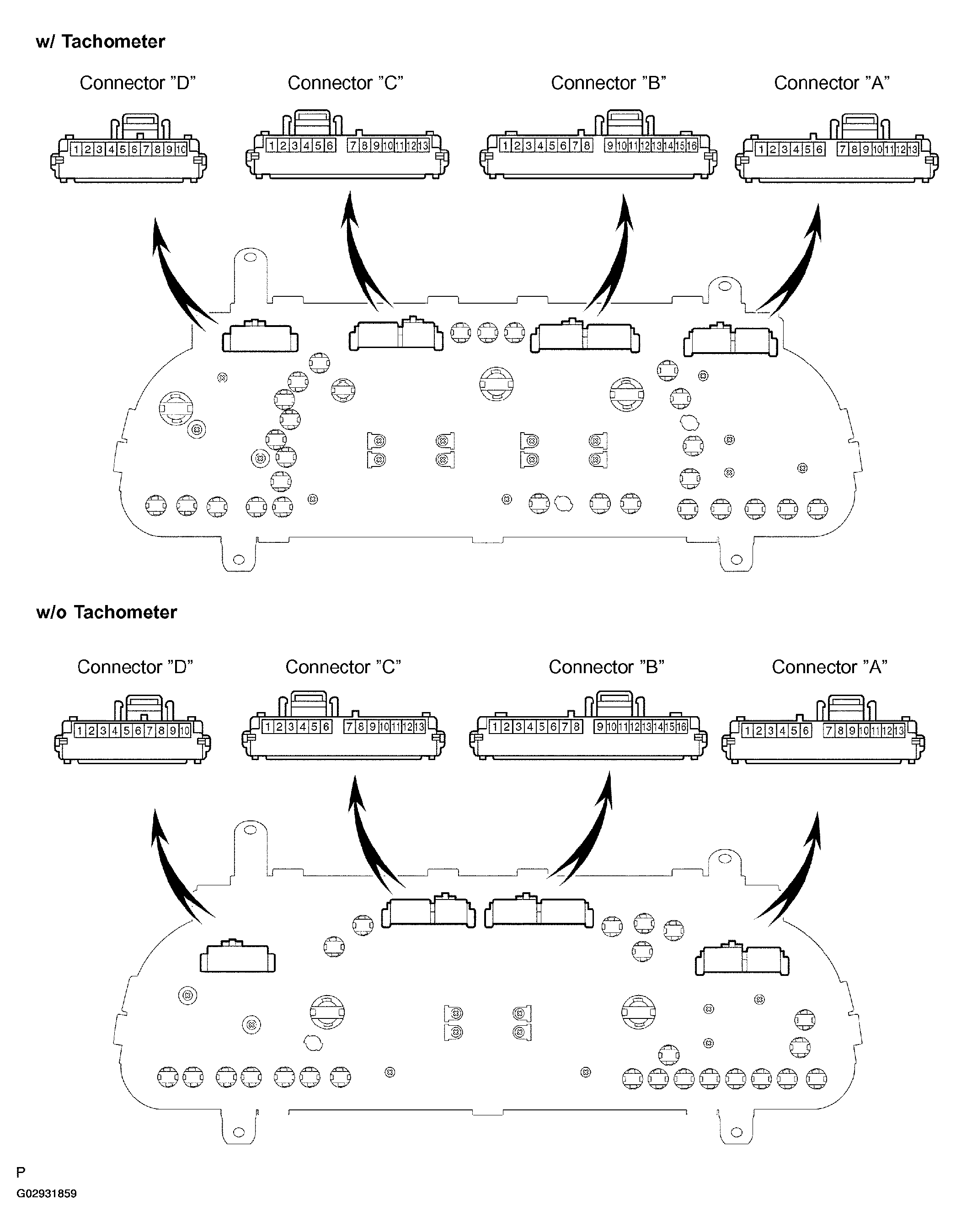

Fig 1: Identifying Combination Meter Connector Terminals
G02931859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

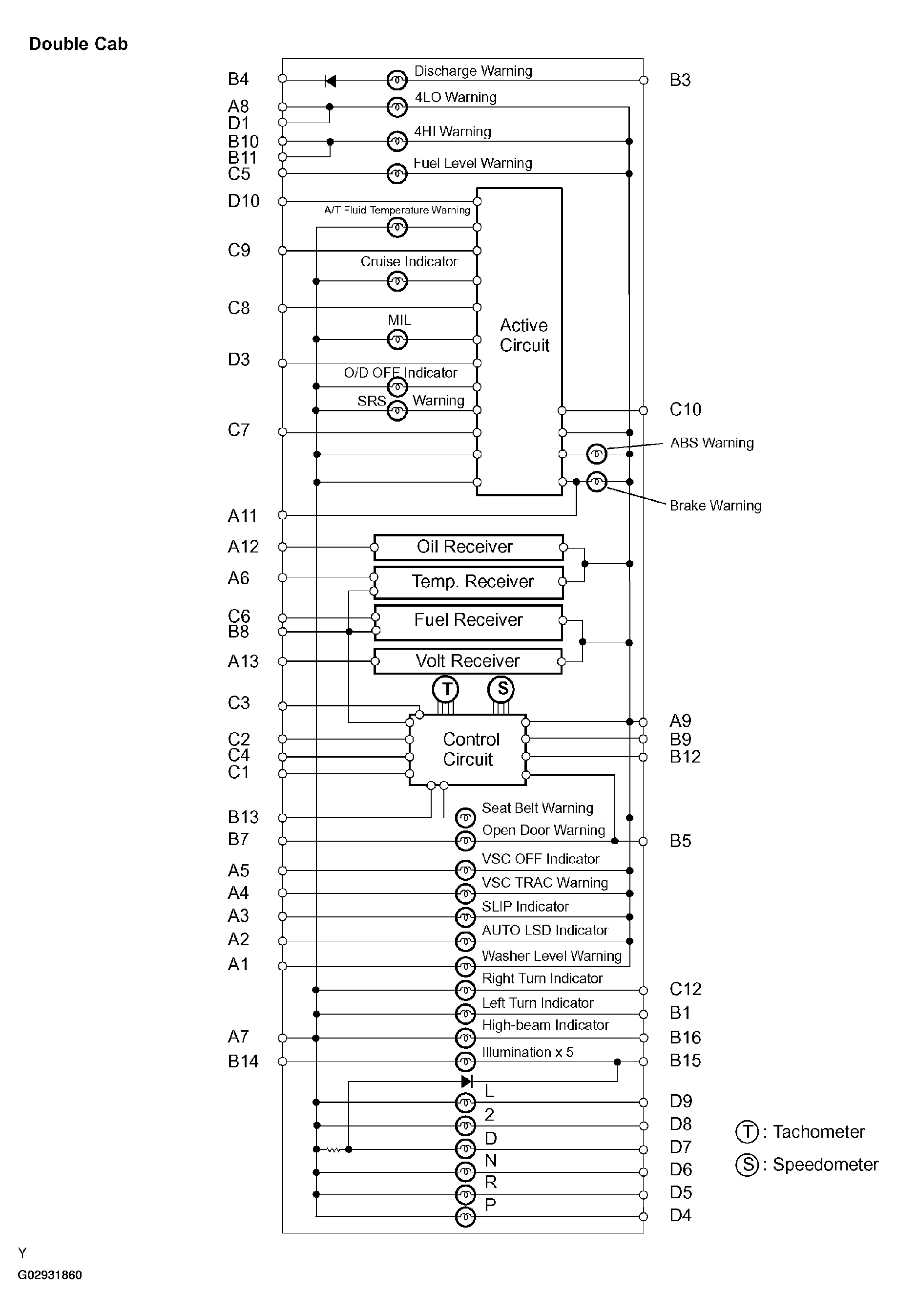

Fig 2: Combination Meter Circuit Diagram - Double Cab
G02931860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Combination Meter Circuit Diagram Legend - Double Cab
G02931861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

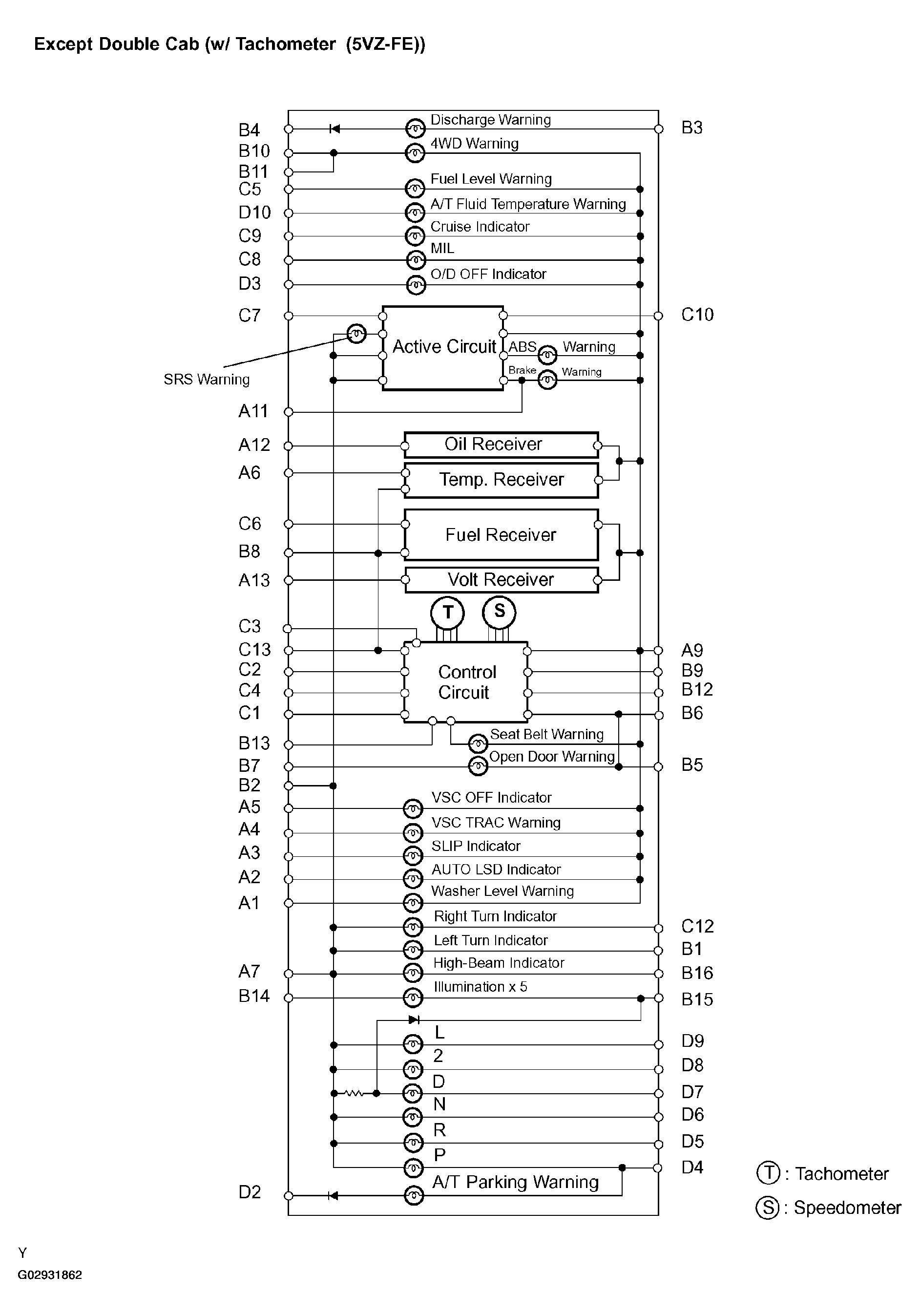

Fig 4: Combination Meter Circuit Diagram - Except Double Cab w/Tachometer (5VZ-FE)
G02931862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

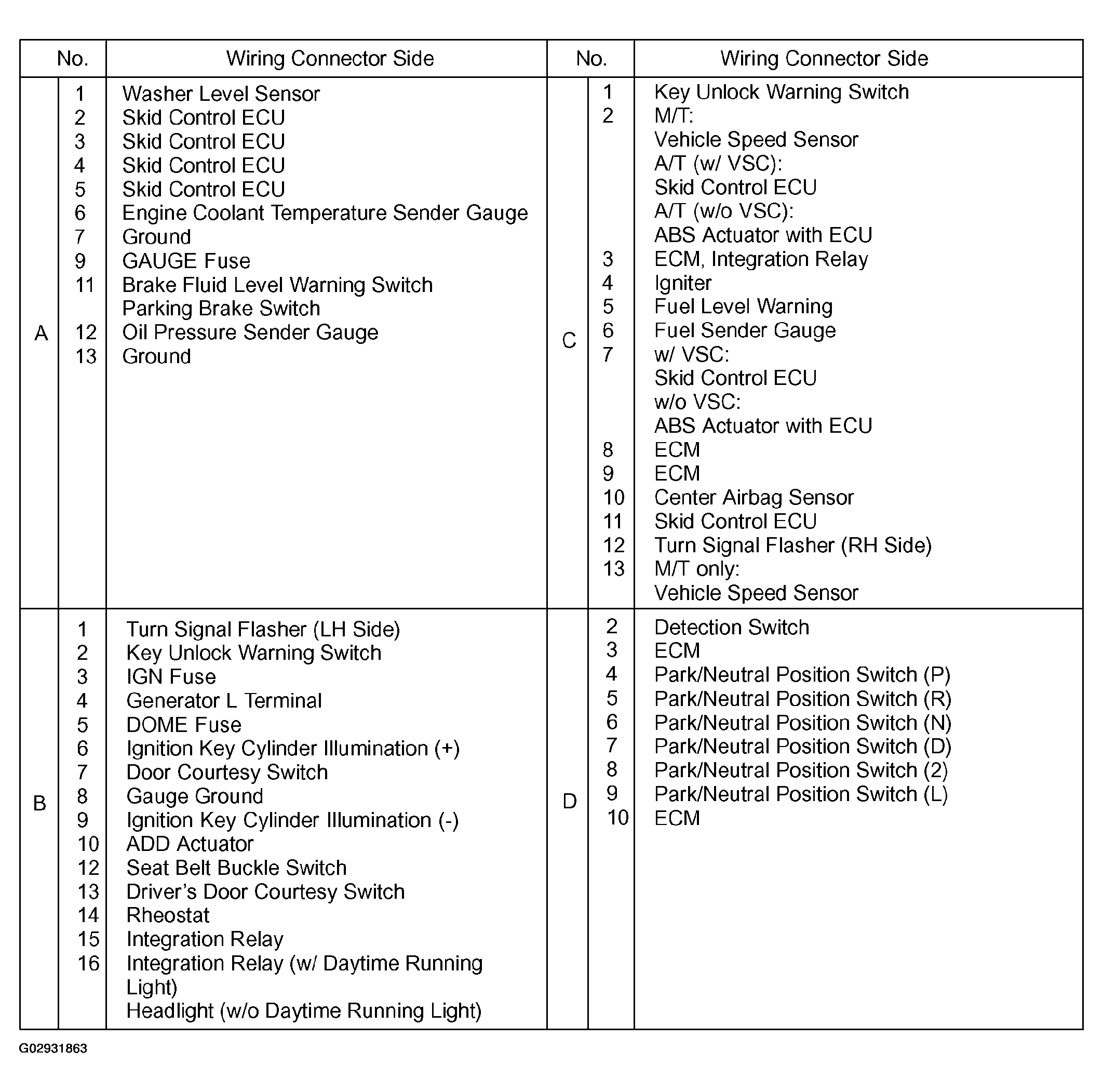

Fig 5: Combination Meter Circuit Diagram Legend - Except Double Cab w/Tachometer (5VZ-EF)
G02931863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

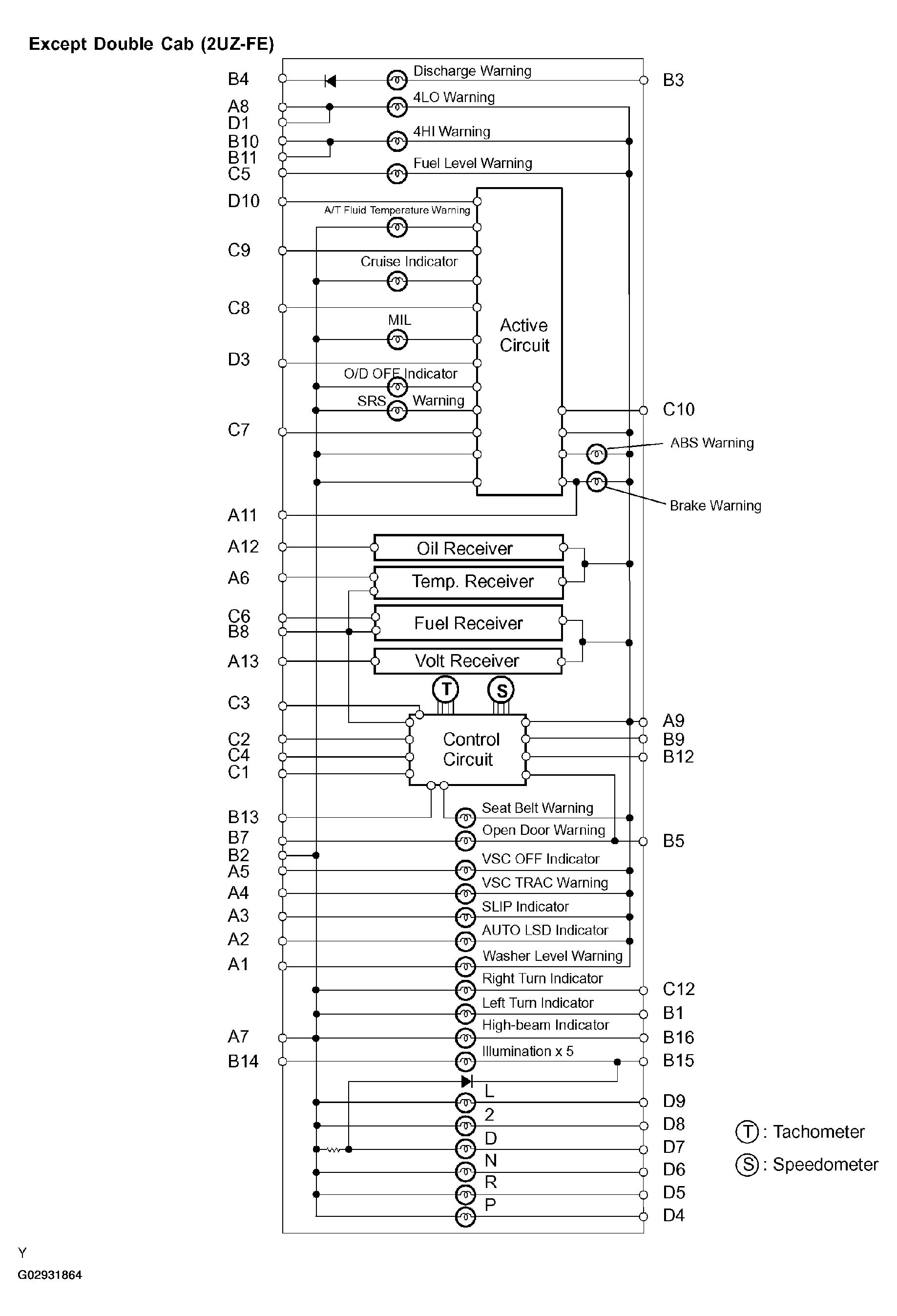

Fig 6: Combination Meter Circuit Diagram - Except Double Cab (2UZ-FE)
G02931864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

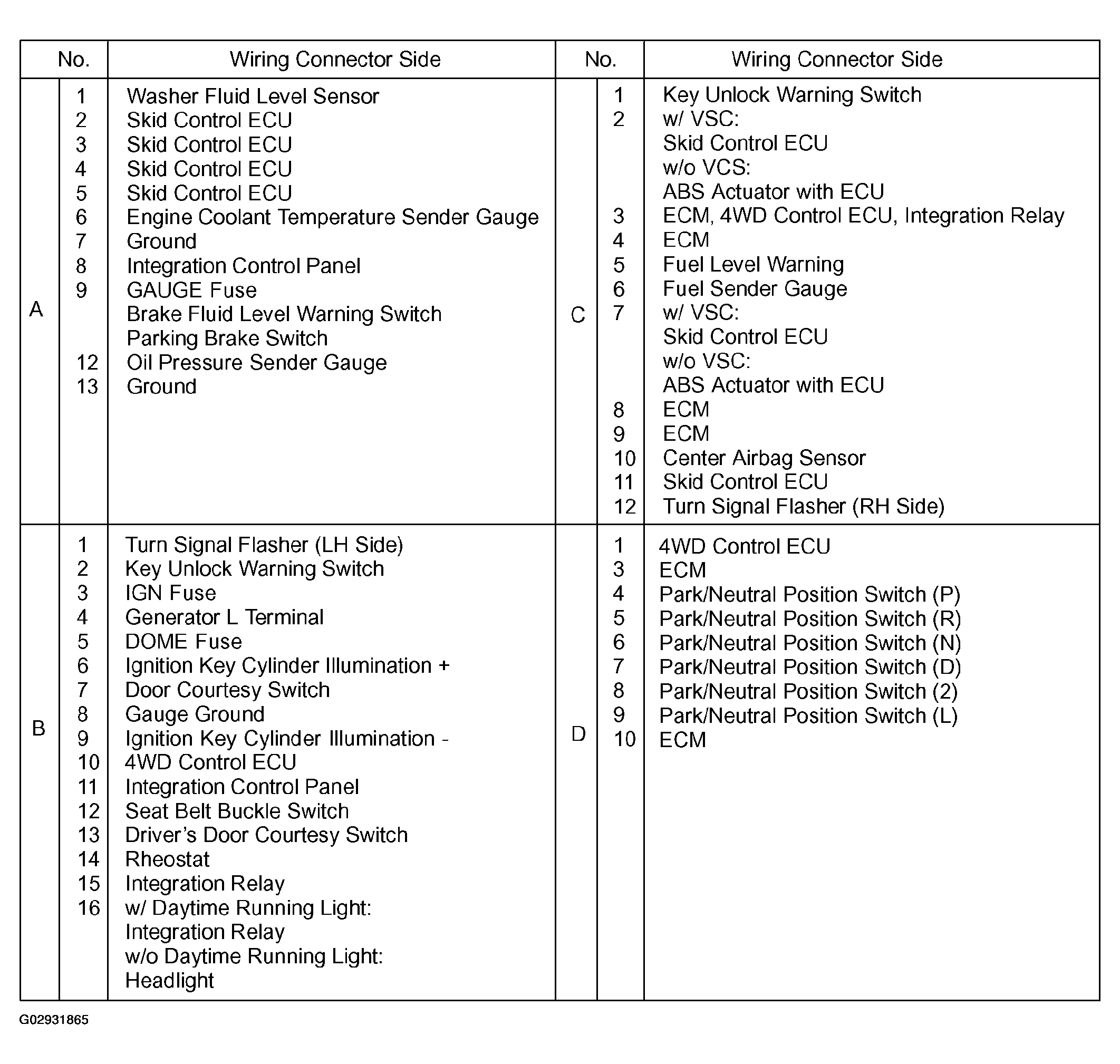

Fig 7: Combination Meter Circuit Diagram Legend - Except Double Cab (2UZ-FE)
G02931865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

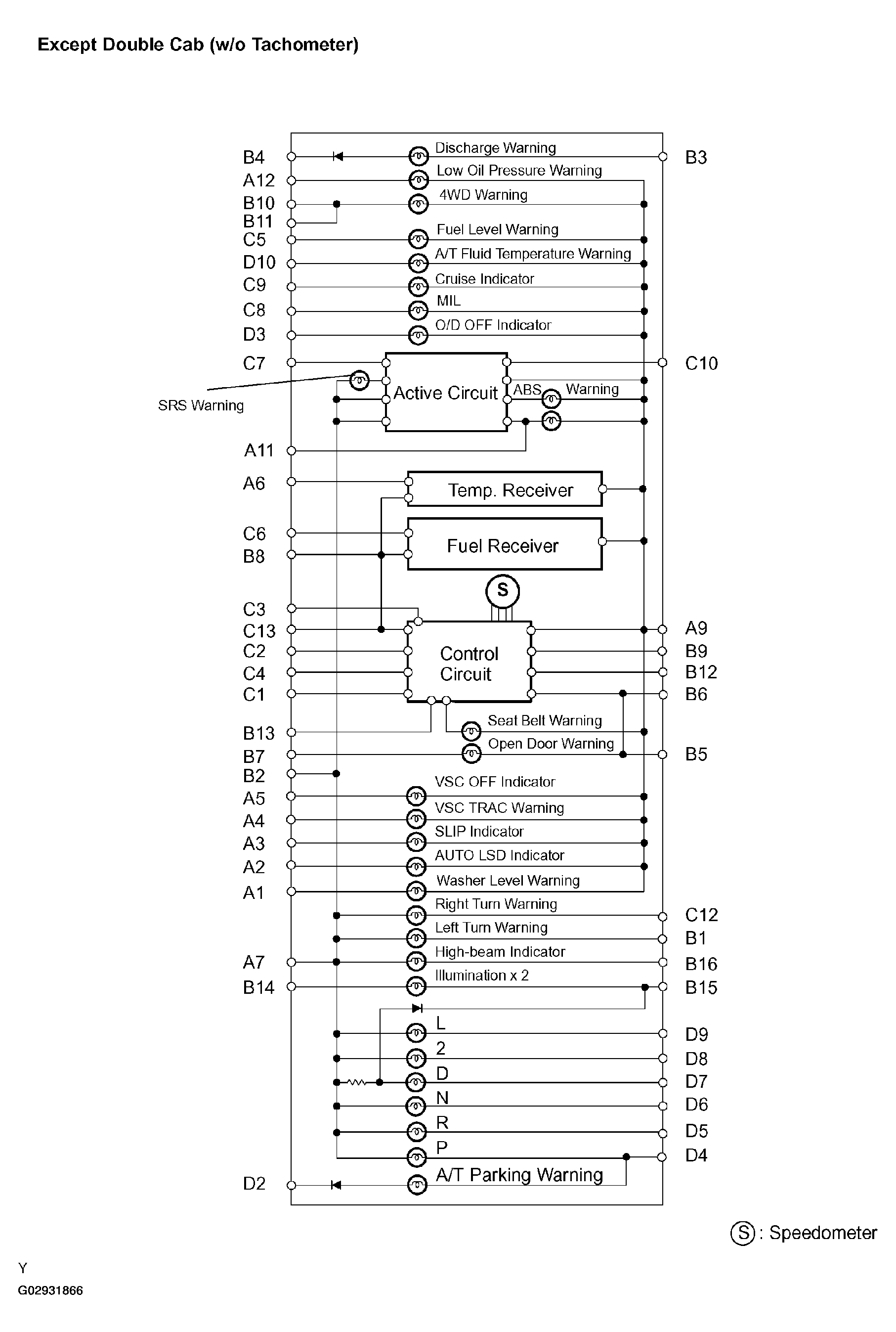

Fig 8: Combination Meter Circuit Diagram - Except Double Cab (w/o Tachometer)
G02931866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

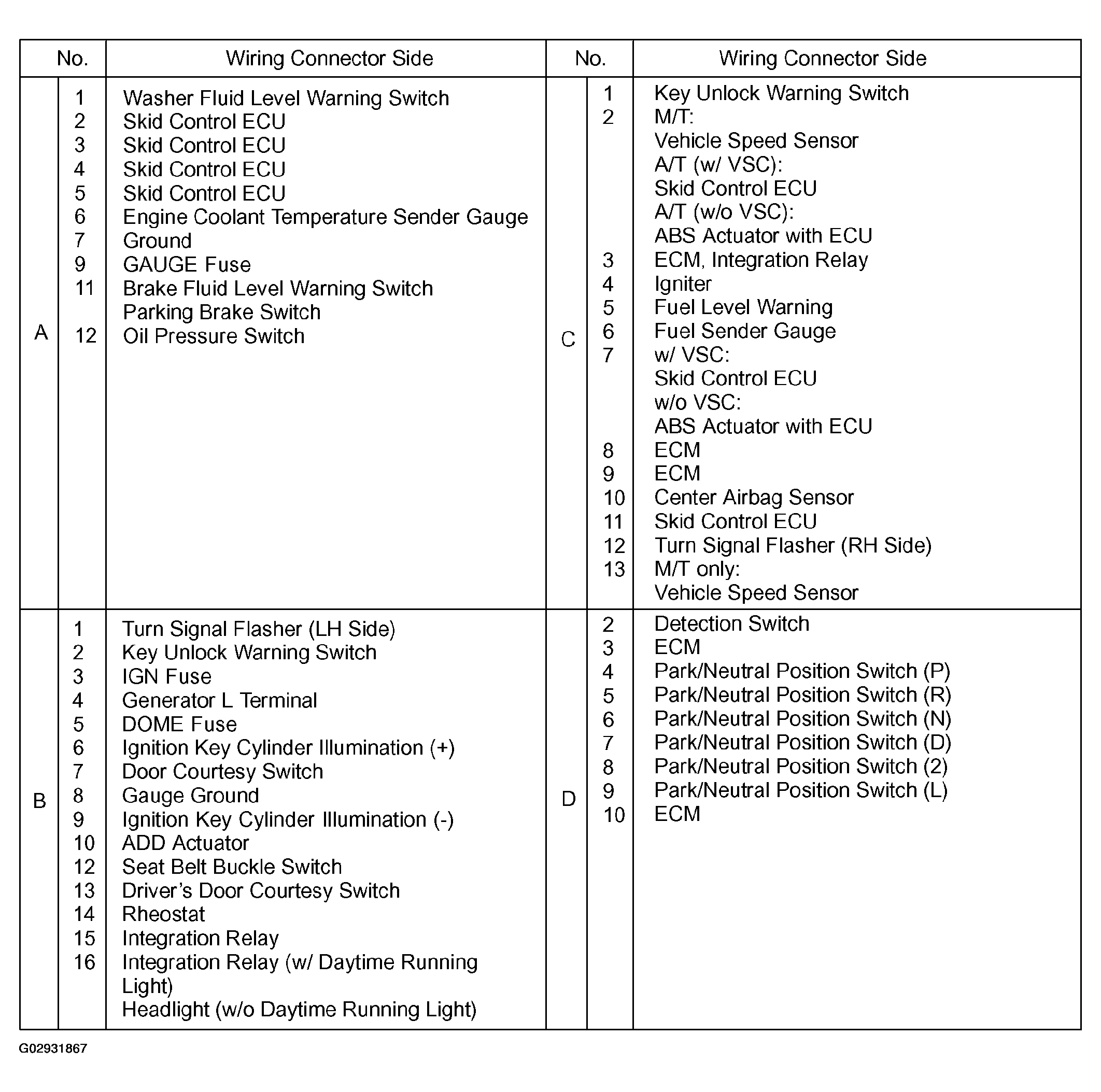

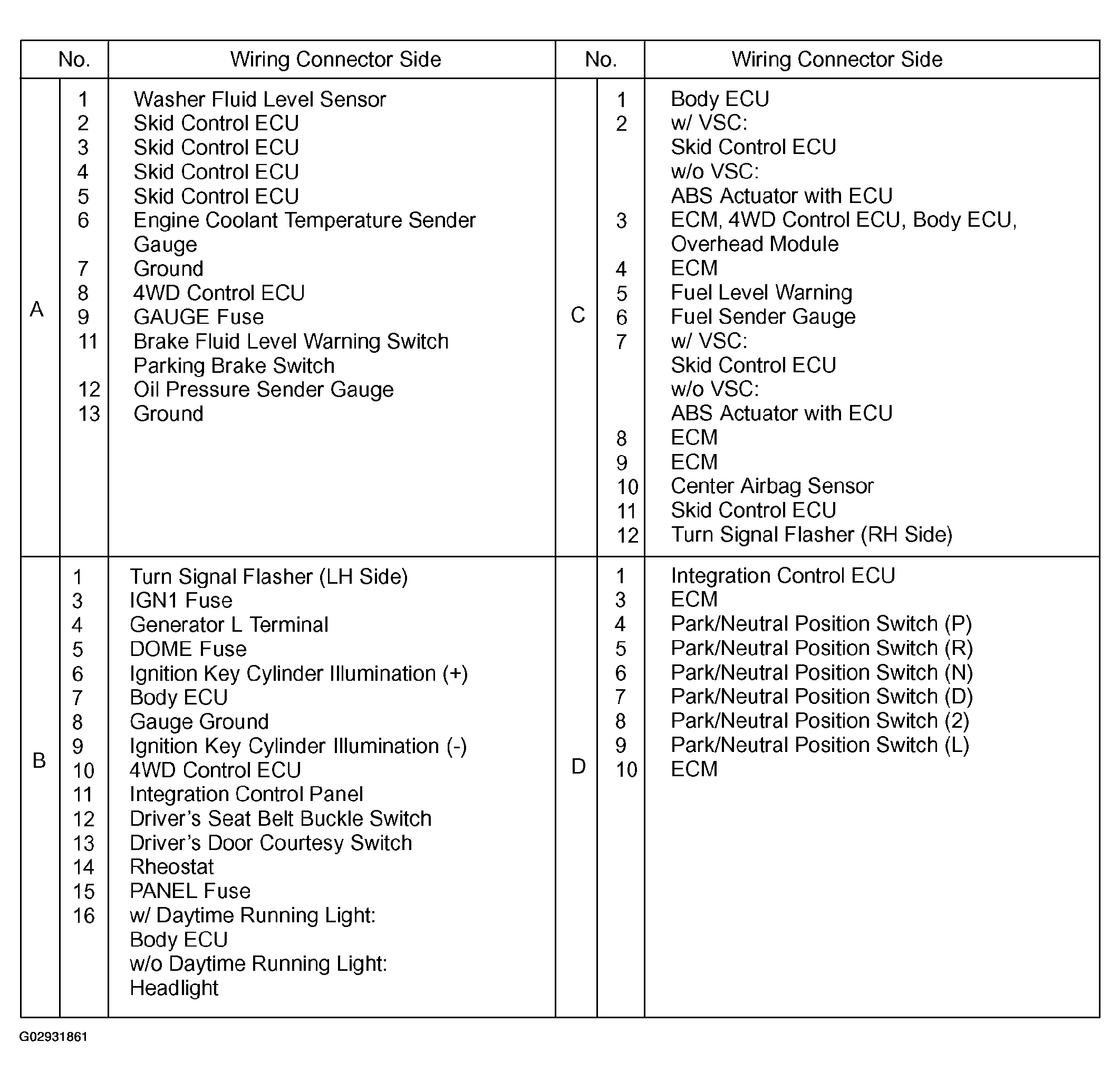

Fig 9: Combination Meter Circuit Diagram Legend - Except Double Cab (w/o Tachometer)
G02931867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
