Parts Layout And Schematic Drawing: Drawing

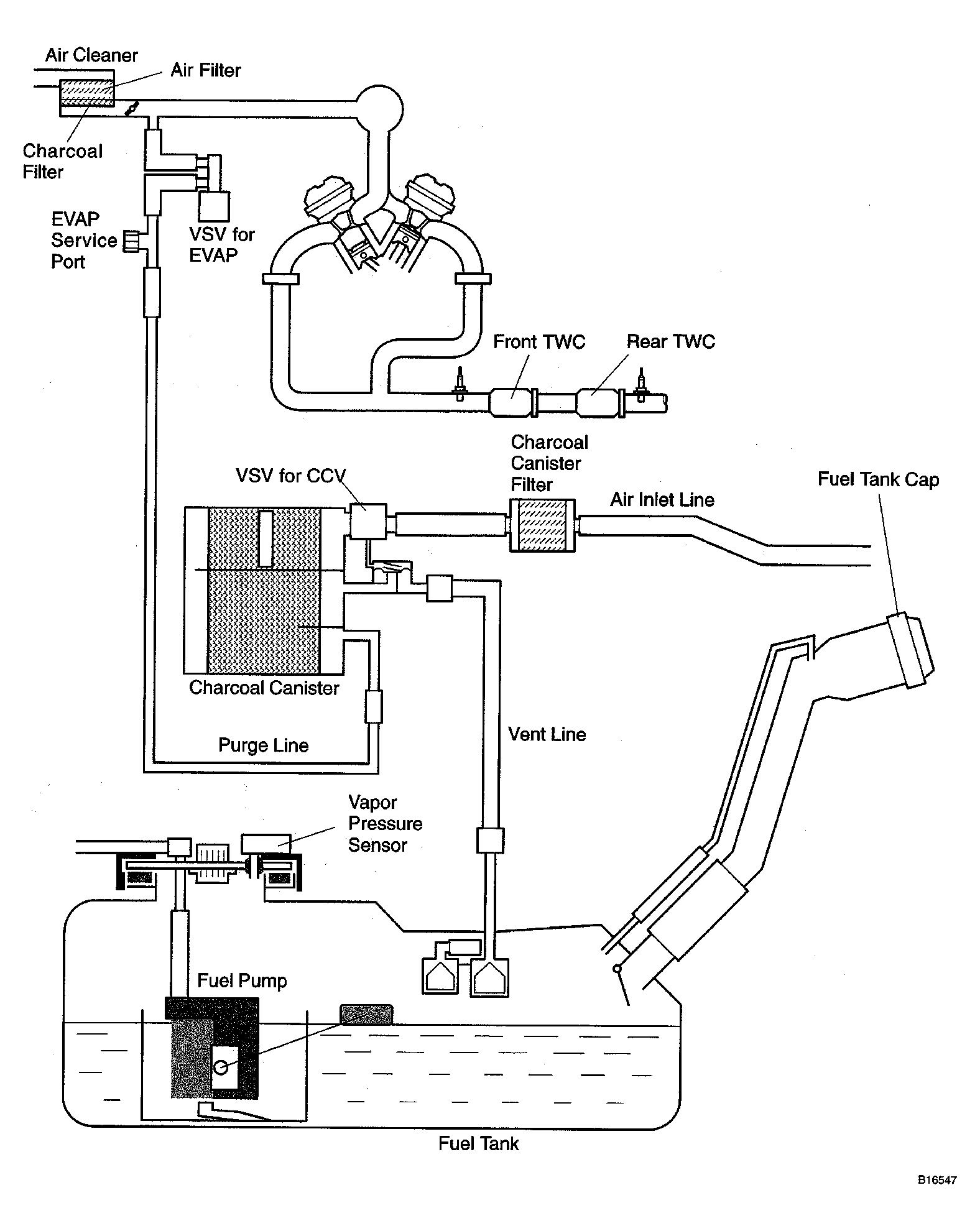

Fig 1: Emission Control (5VZ-FE) System Drawing
G04271590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
