How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure shown.

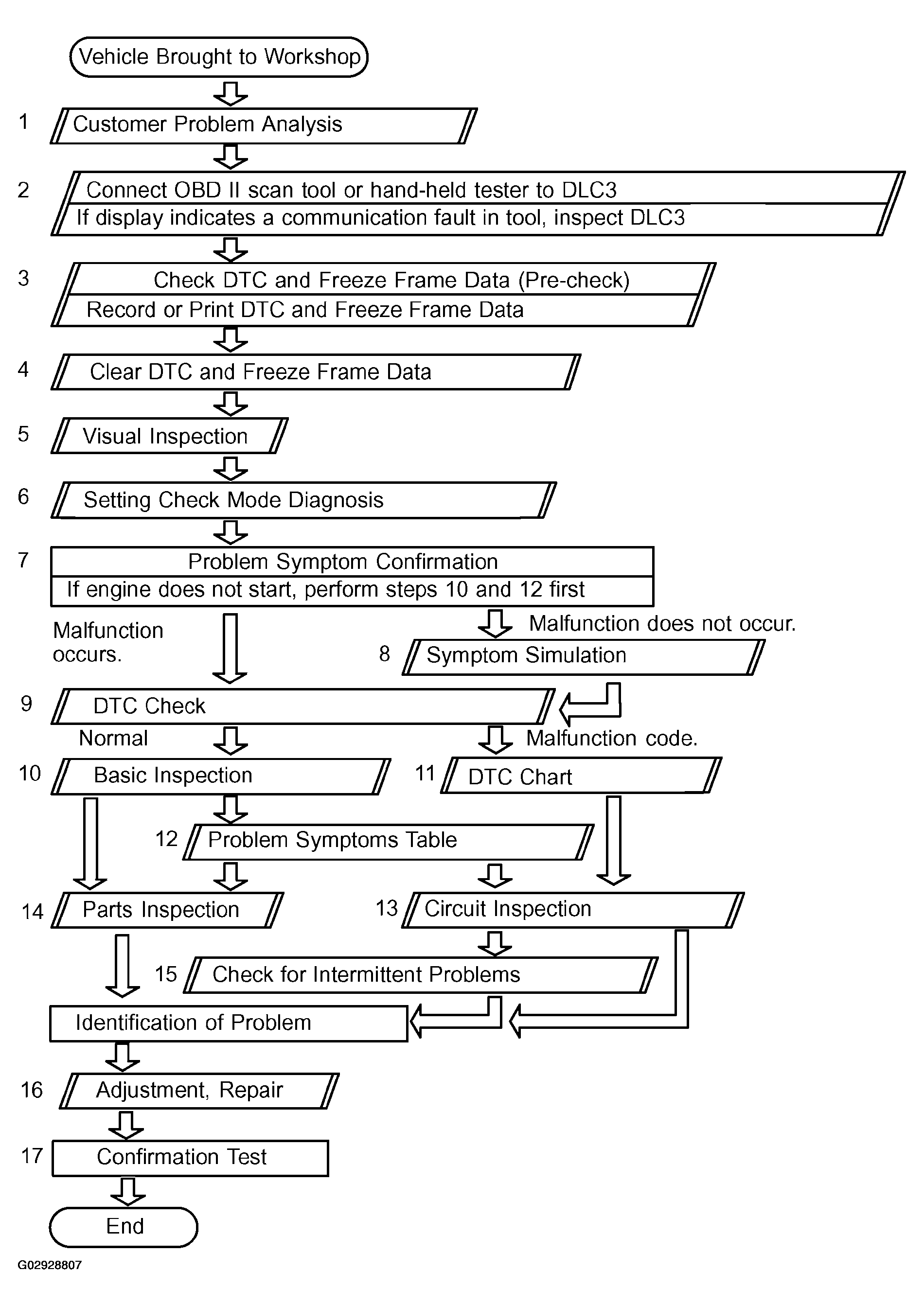

Fig 1: Engine Troubleshooting Procedure
G02928807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
