Terminals Of ECM

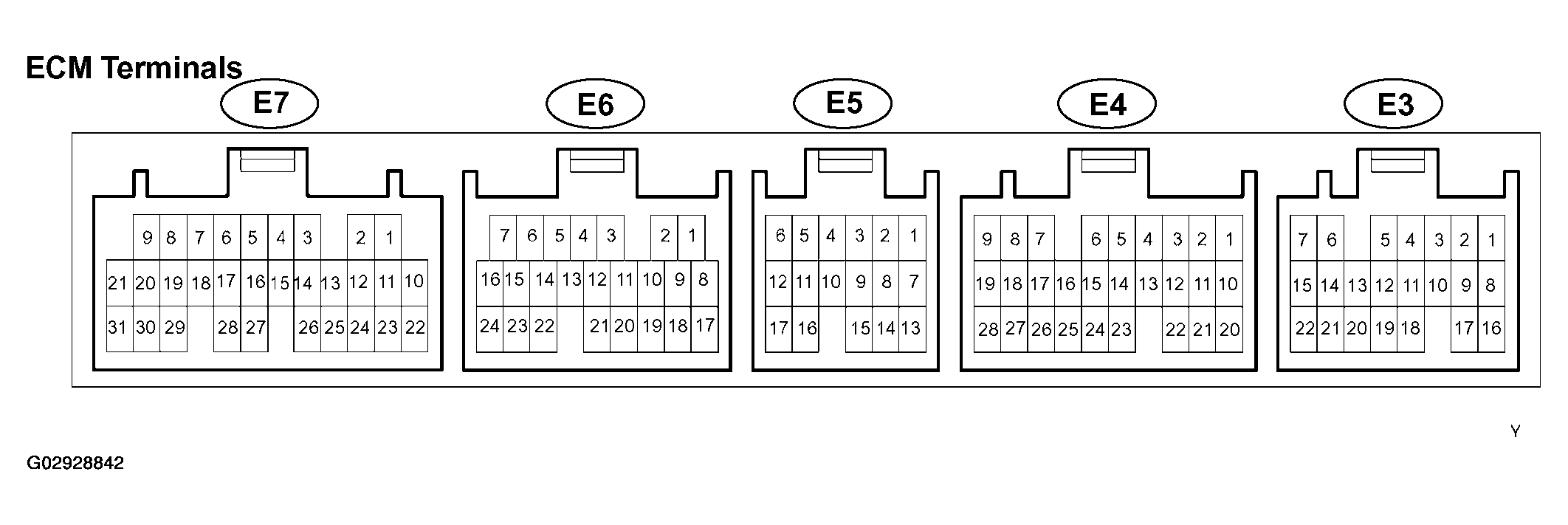

Fig 1: Locating ECM Terminals
G02928842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

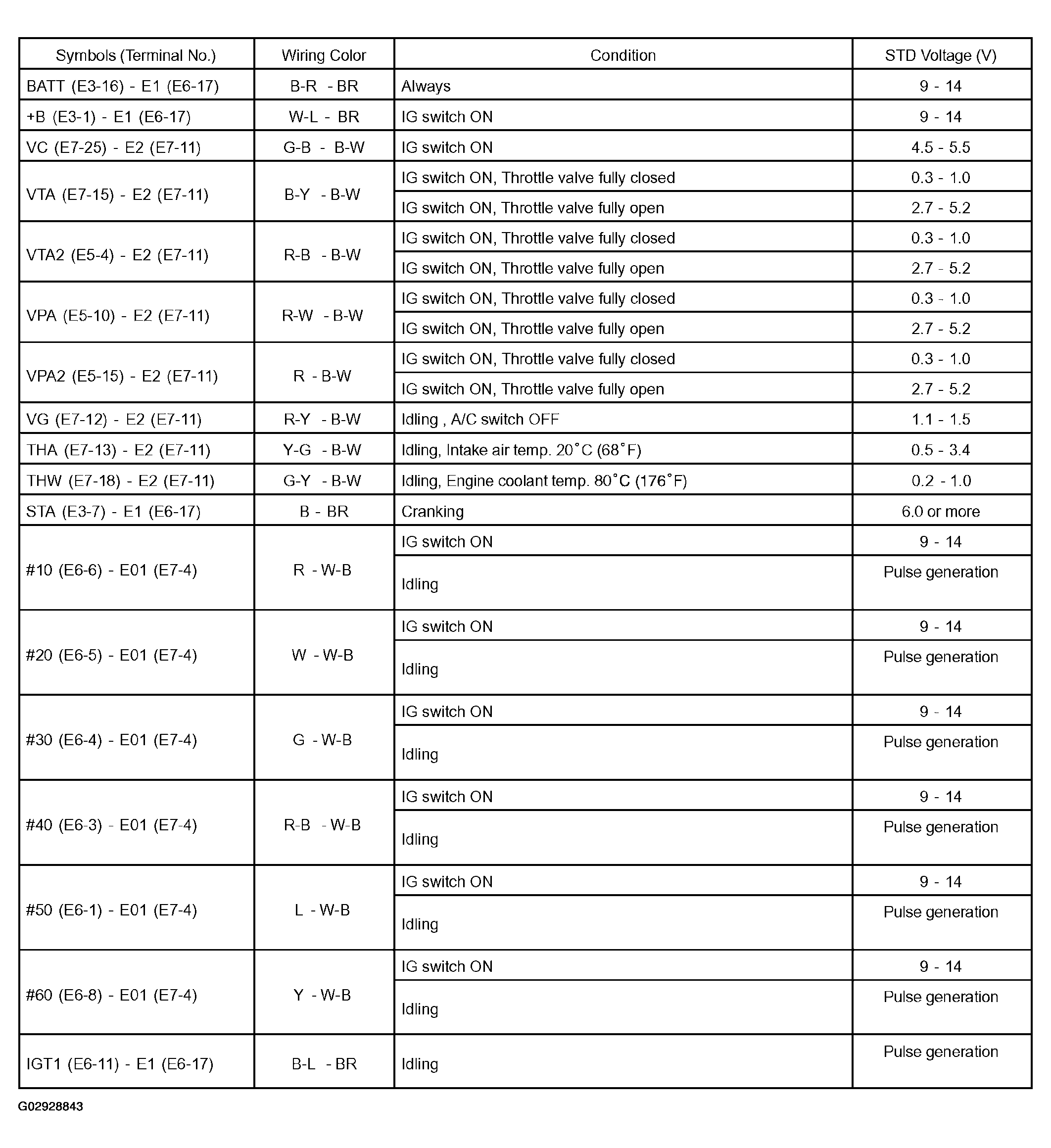

Fig 2: ECM Terminals Condition Chart (1 Of 2)
G02928843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

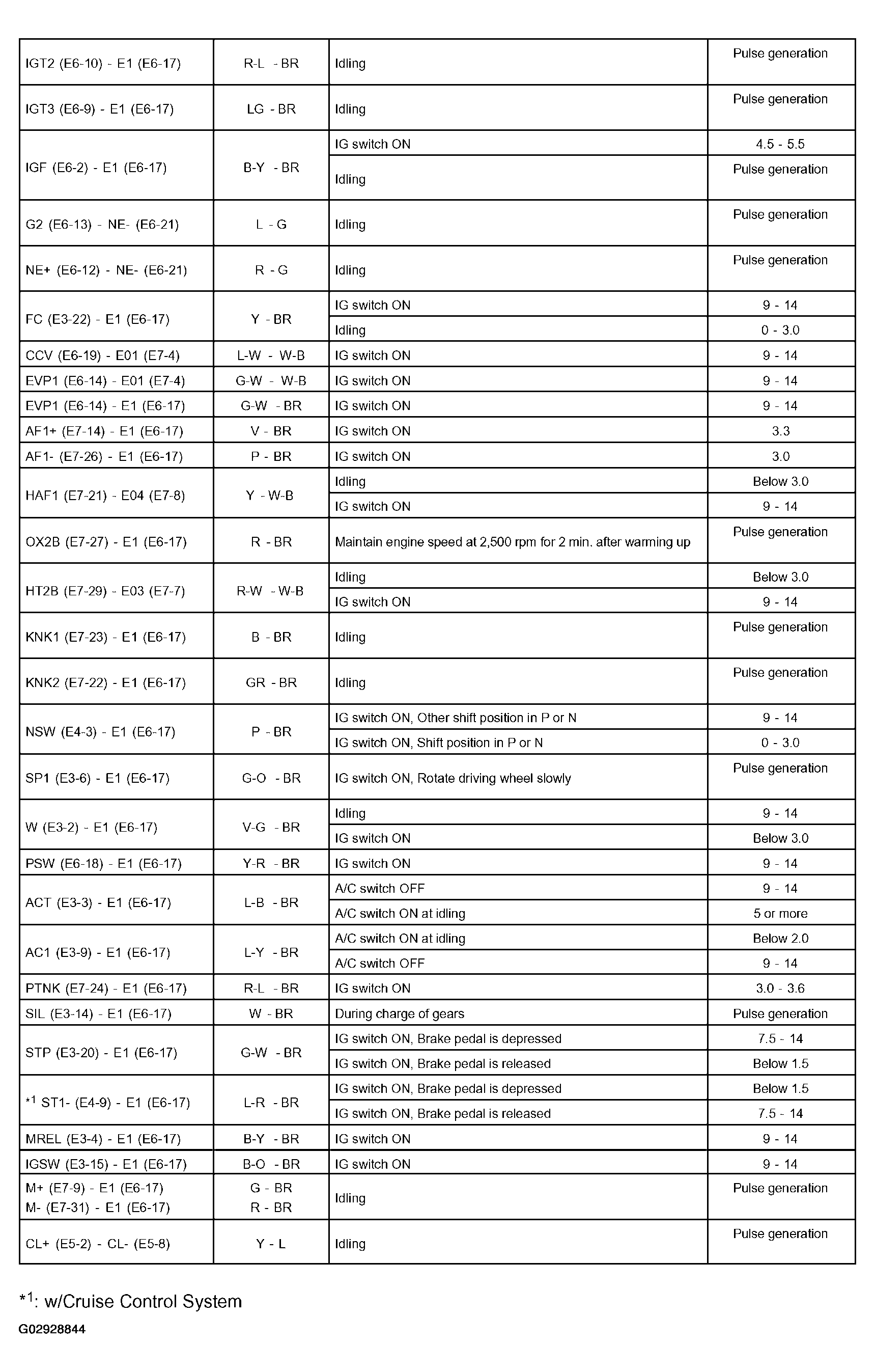

Fig 3: ECM Terminals Condition Chart (2 Of 2)
G02928844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
