Seat Belt: Components

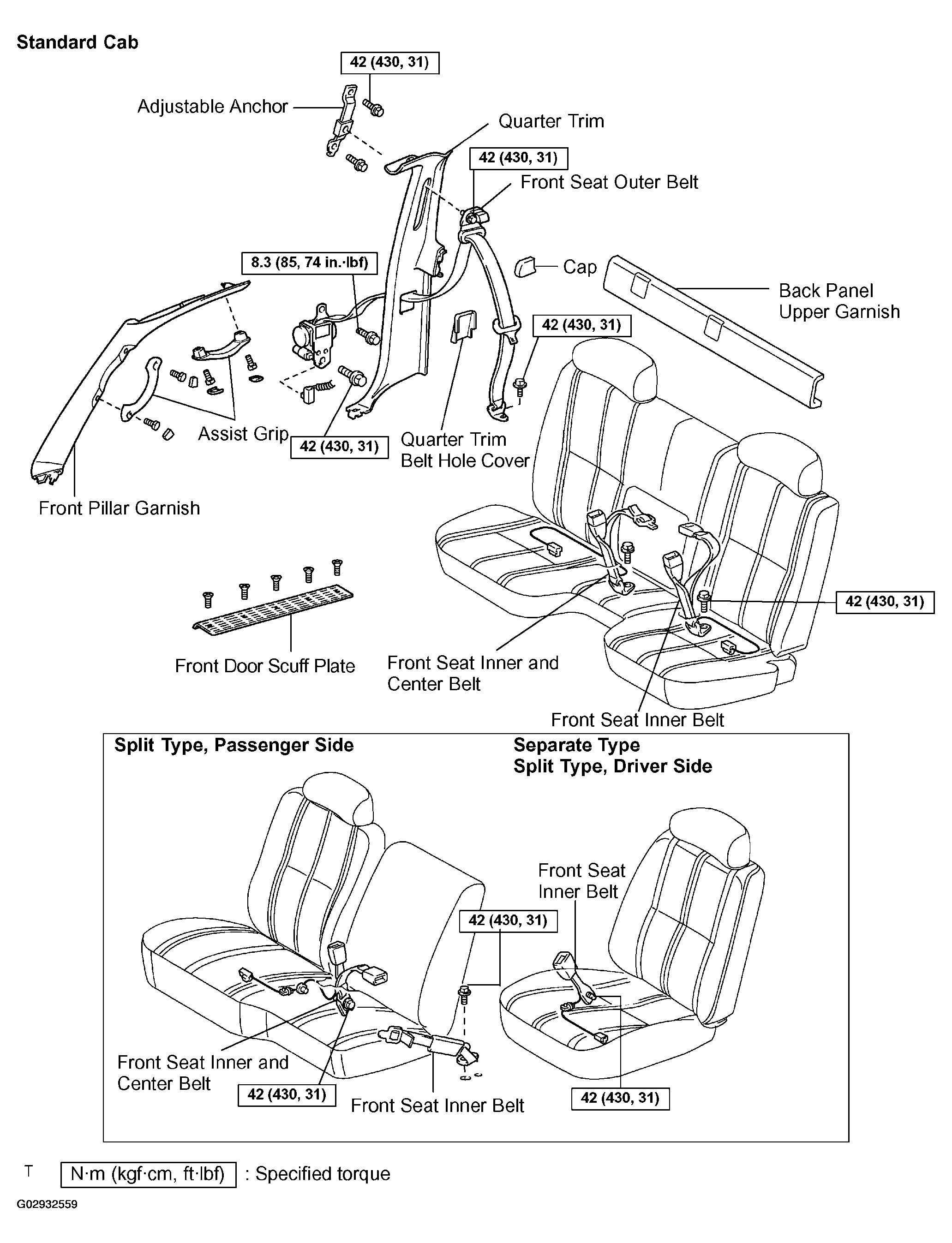

Fig 1: Locating Seat Belt Components (Standard Cab)
G02932559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

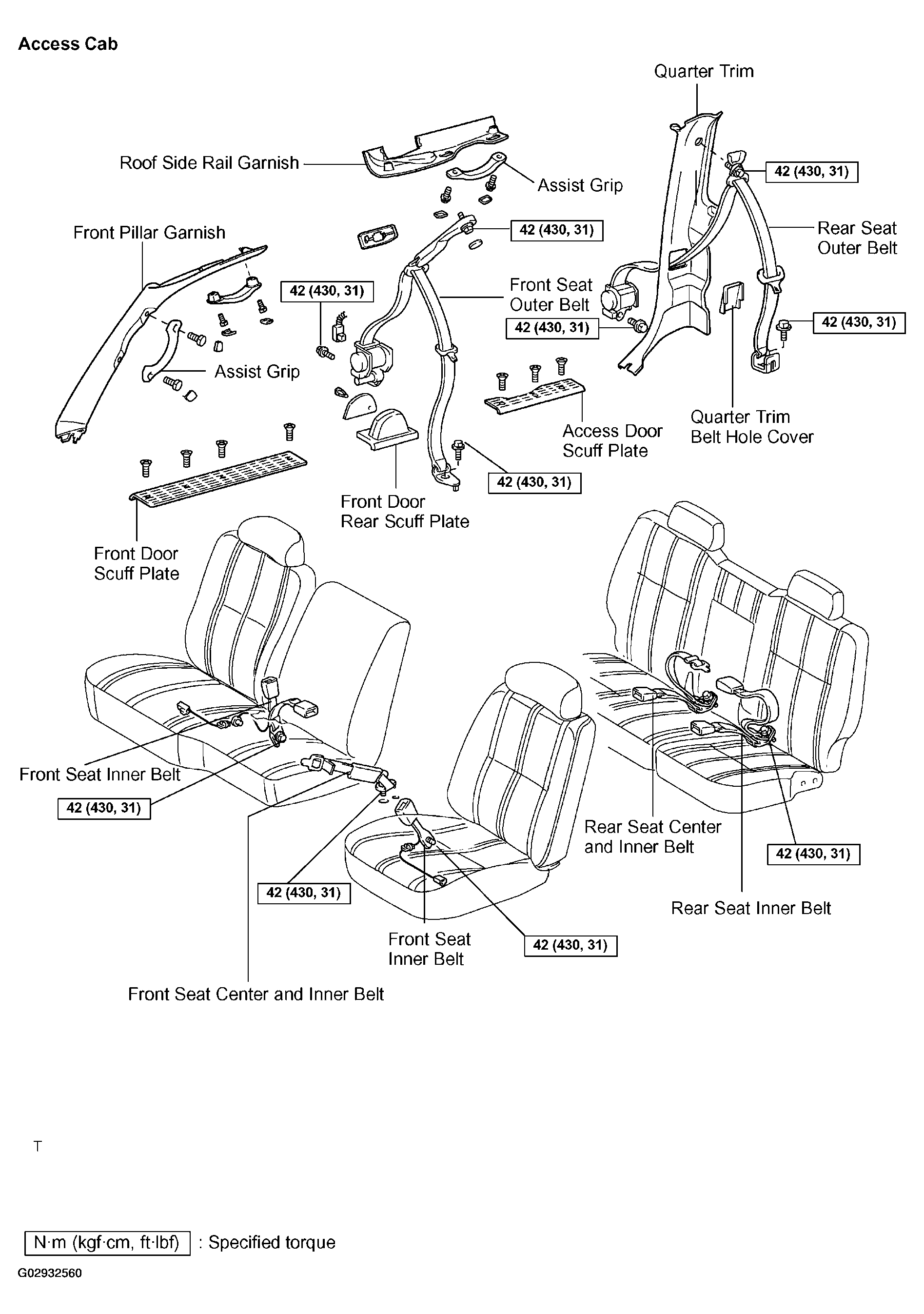

Fig 2: Locating Seat Belt Components (Access Cab)
G02932560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

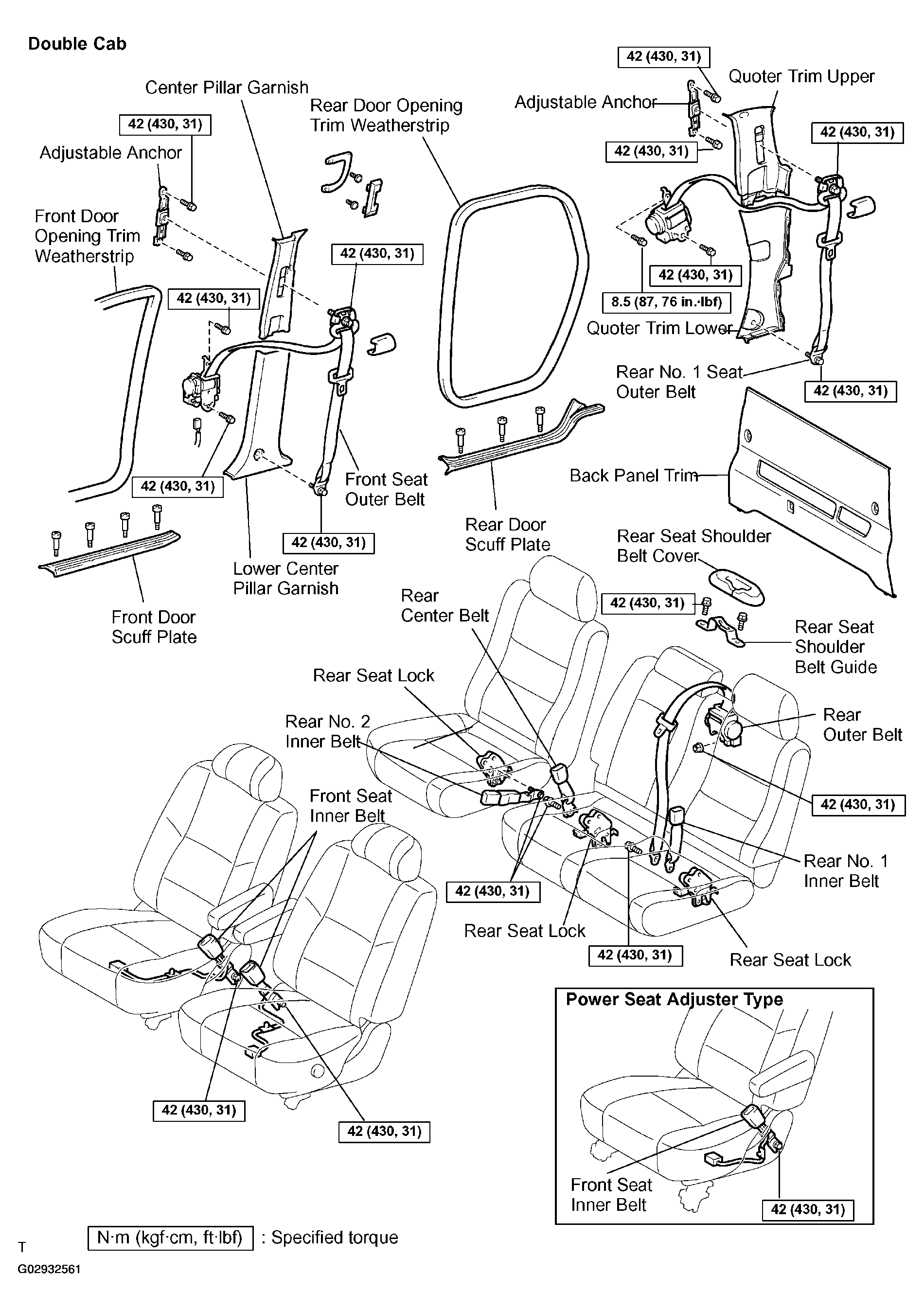

Fig 3: Locating Seat Belt Components (Double Cab)
G02932561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
