Steering Column: Components

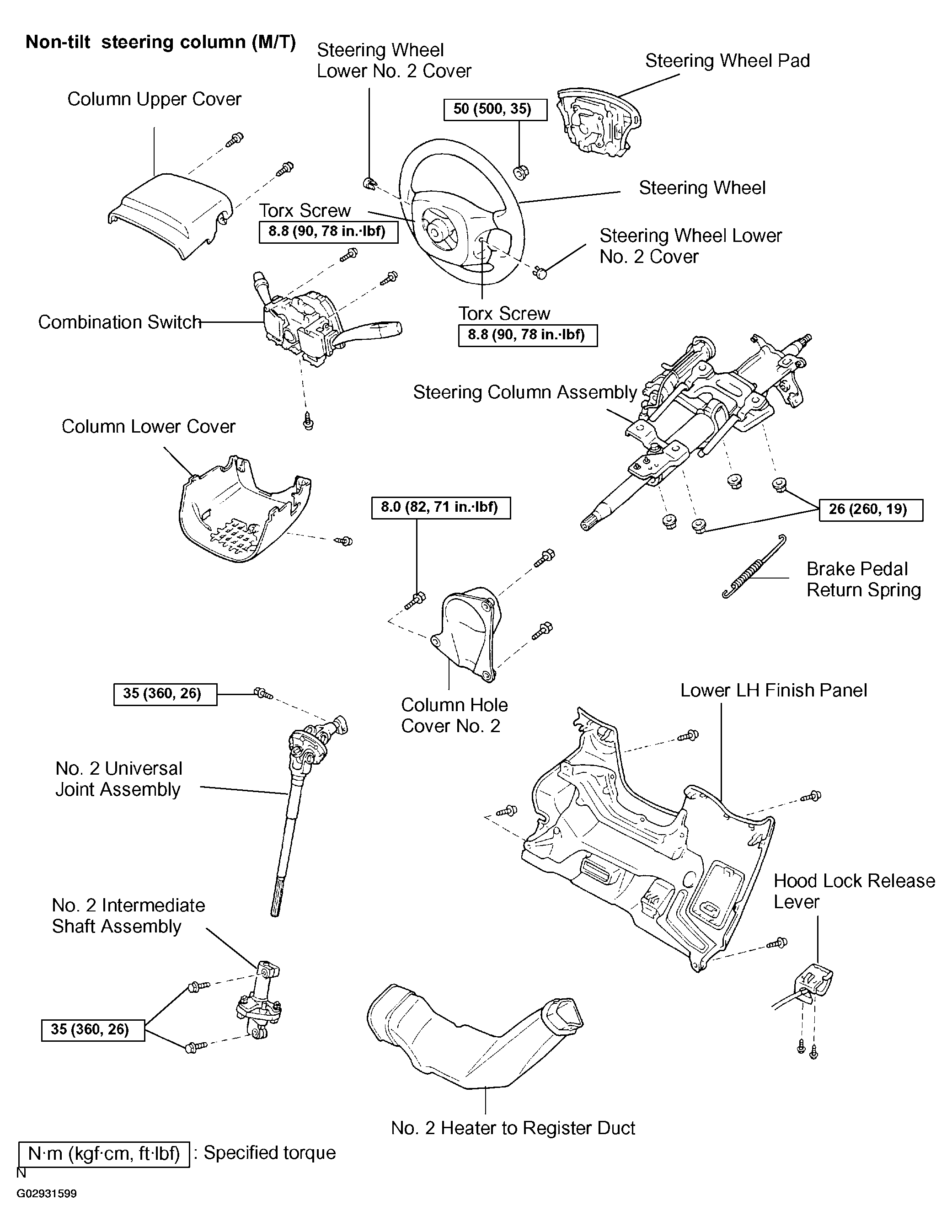

Fig 1: Exploded View Of Steering Column Assembly & Related Components (Non Tilt Steering Column - A/T)
G02931599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exploded View Of Steering Column Assembly & Related Components (Tilt Steering Column - M/T)
G02931600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exploded View Of Steering Column Assembly & Related Components (Tilt Steering Column - A/T)
G02931601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Exploded View Of Steering Column Assembly (Non Tilt Steering Column)
G02931602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Exploded View Of Steering Column Assembly (Tilt Steering Column)
G02931603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Exploded View Of Steering Column Assembly & Related Components (Non Tilt Steering Column - M/T)
G02931604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
