Steering Column: Installation

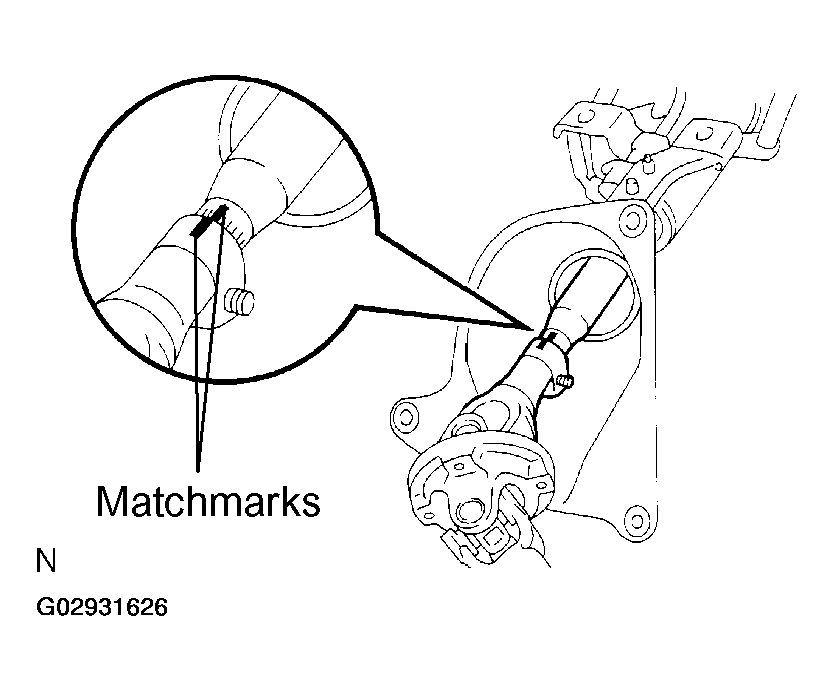

CONNECT NO. 2 UNIVERSAL JOINT ASSEMBLY
1. Insert the column hole cover No. 2.
2. Align the matchmarks on the column assembly and No. 2 universal joint assembly.
3. Install the bolt.
  Torque: 35 N.m (360 kgf.cm, 26 ft.lbf)

  Fig 1: Connecting No.2 Universal Joint Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

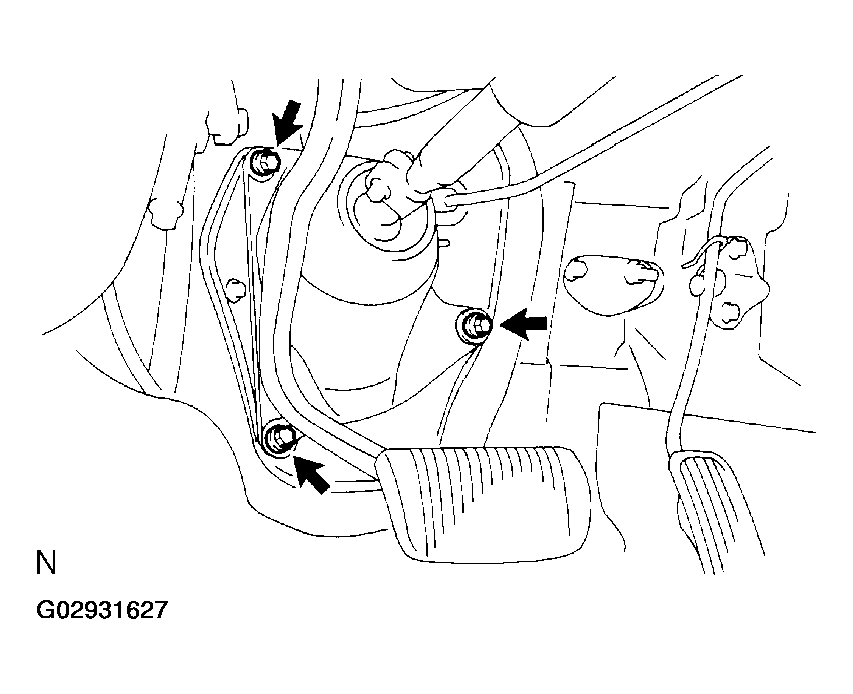

INSTALL STEERING COLUMN ASSEMBLY WITH NO. 2 UNIVERSAL JOINT ASSEMBLY
1. Install the column assembly with No. 2 universal joint assembly.
2. Install the 4 steering column set nuts.
  Torque: 26 N.m (260 kgf.cm, 19 ft.lbf)
3. Connect the connectors.
A/T: CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
Connect the cable assembly to the shift lever assembly.
INSTALL COLUMN HOLE COVER NO. 2
Install the column hole cover No. 2 to body with the 3 bolts.

Torque: 8.0 N.m (82 kgf.cm, 71 ft.lbf)

Fig 2: Installing Column Assembly With No.2 Universal Joint Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

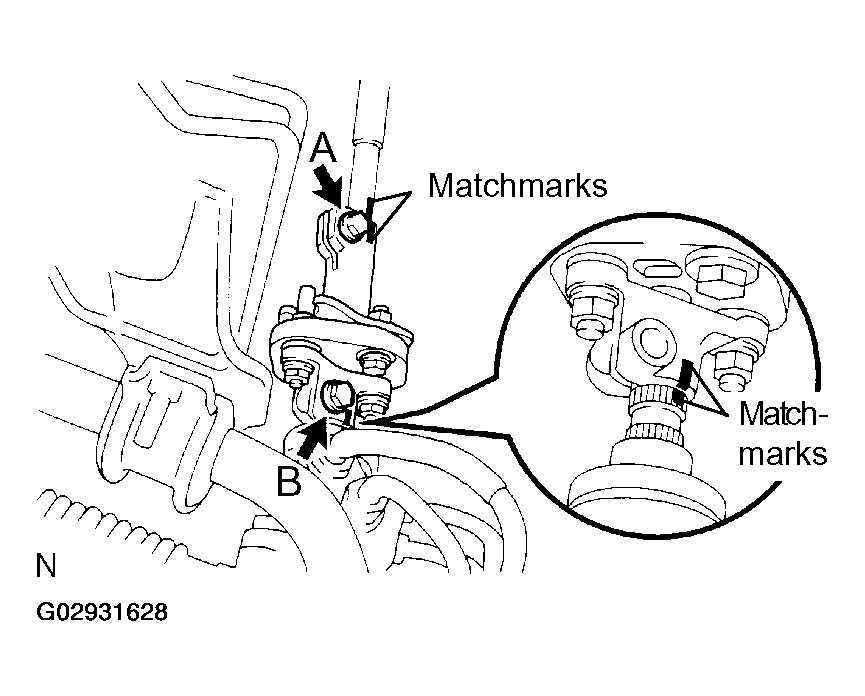

INSTALL NO. 2 INTERMEDIATE SHAFT ASSEMBLY
1. Align the matchmarks on the No. 2 universal joint assembly and No. 2 intermediate shaft assembly.
2. Align the matchmarks on the control valve shaft and No. 2 intermediate shaft assembly.
3. Install the "A" and "B" bolts.
  Torque: 35 N.m (360 kgf.cm, 26 ft.lbf)
INSTALL BRAKE PEDAL RETURN SPRING
INSTALL NO. 2 HEATER TO REGISTER DUCT
INSTALL LOWER LH FINISH PANEL
1. Install the lower LH finish panel with the 4 bolts.
2. Connect the hood lock release lever with the 2 screws.
INSTALL SPIRAL CABLE (See COMPONENTS )

Fig 3: Installing No.2 Intermediate Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COMBINATION SWITCH WITH SPIRAL CABLE
1. Install the combination switch with the 3 screws.
2. Connect the airbag connector.
3. M/T: Connect the 3 connectors.
4. A/T: Connect the 4 connectors.
INSTALL UPPER AND LOWER COLUMN COVERS
Install the upper and lower column covers with the 3 screws.

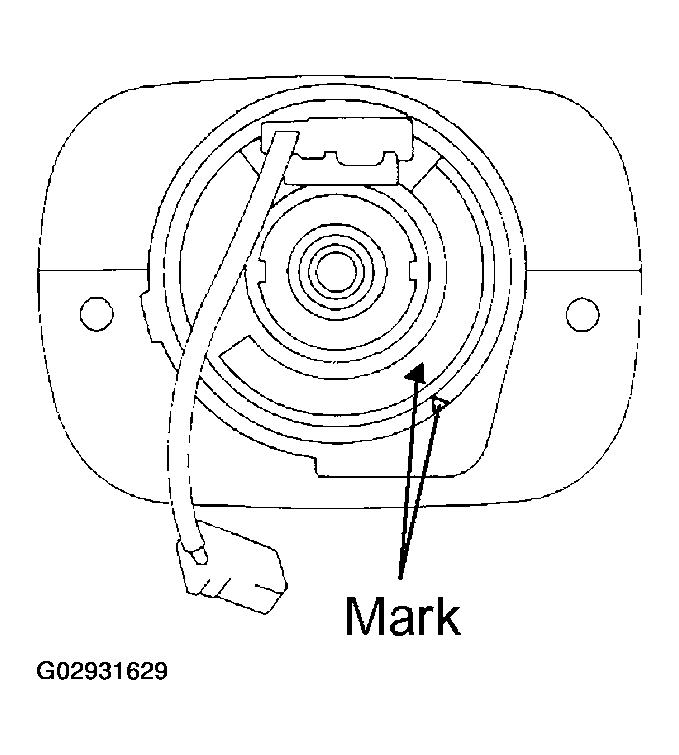

CENTER SPIRAL CABLE
1. Check that the front wheels are facing straight ahead.
2. Turn the cable counterclockwise by hand until it becomes harder to turn the cable.
3. Then rotate the cable clockwise about 2.5 turns to align the mark.
  HINT:

  The cable will rotate about 2.5 turns to either left or right of the center.

  Fig 4: Aligning Matchmark On Wheel & Main Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING WHEEL
1. Align the matchmarks on the wheel and main shaft.
2. Install the wheel set nut.
  Torque: 50 N.m (500 kgf.cm, 35 ft.lbf)
3. Connect the connector.

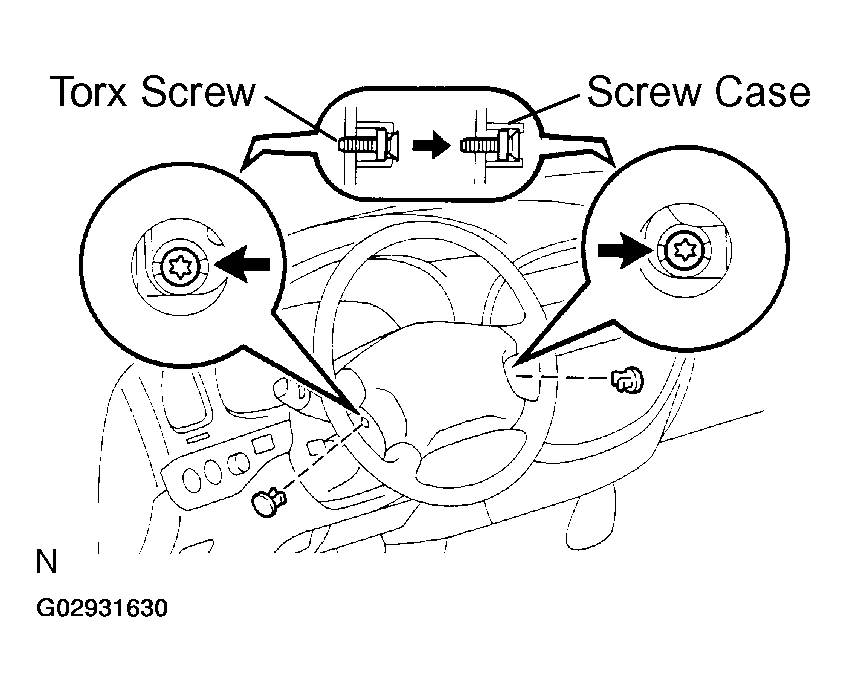

INSTALL STEERING WHEEL PAD
NOTE:
- Never use airbag parts from another vehicle. When replacing parts, replace with new ones.
- Make sure the wheel pad is installed to the specified torque.
- If the wheel pad has been dropped, or there are cracks, dents or other defects in the case or connector, replace the wheel pad with a new one.
- When installing the wheel pad, take care that the wirings do not interfere with other parts and are not pinched between other parts.
- When installing the torx screws, take care that any scratches on the other parts (ex. cruise control switch, lower cover) are not made with the torx socket wrench.
1. Connect the airbag connector and horn connector.
2. Install the wheel pad after confirming that the circumference groove of the torx screw is caught on the screw case.
3. Using a torx socket wrench, torque the 2 screws holding down the upper surface of the wheel pad properly to prevent the wheel pad floating up.
  Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)
4. Install the 2 steering wheel lower No. 2 covers.
CHECK STEERING WHEEL CENTER POINT

Fig 5: Installing Wheel Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
