Steering Column Shift Assembly: Removal

1. Remove the screw and cable No. 2.
2. Using a torx socket wrench, remove the 2 screws and cable No. 1.
3. Remove the spring.
4. Remove the 2 bolts and parking lock cable housing.

1. Disconnect the connector.
2. Using a torx socket wrench, remove the torx screw and shift lever.
3. Remove the upper No. 2 steering column cover.

Using a torx socket wrench, remove the 3 torx screws and shift lever housing.

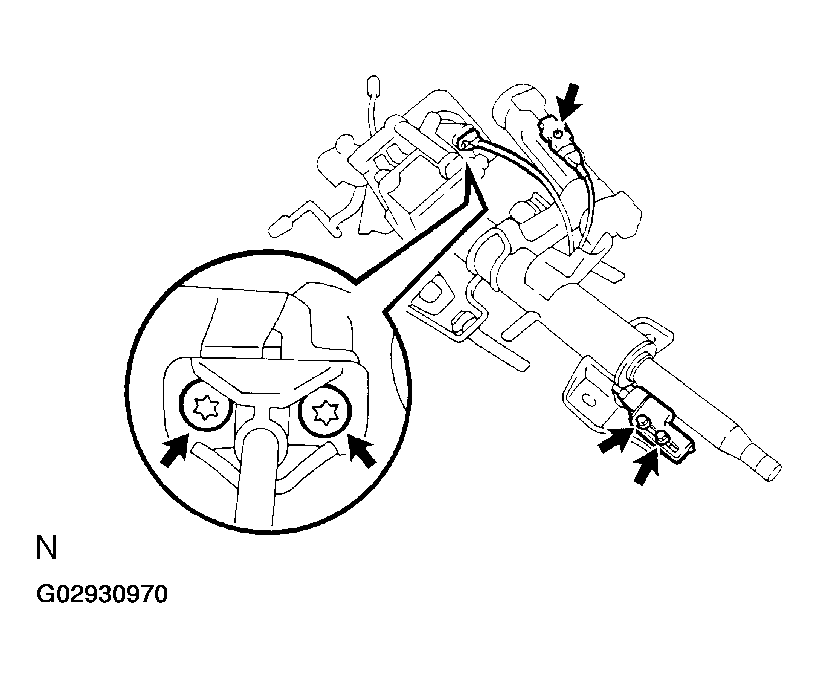

Fig 1: Removing Parking Lock Cable Assembly Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
