Position Sensor Circuit: Wiring Diagram

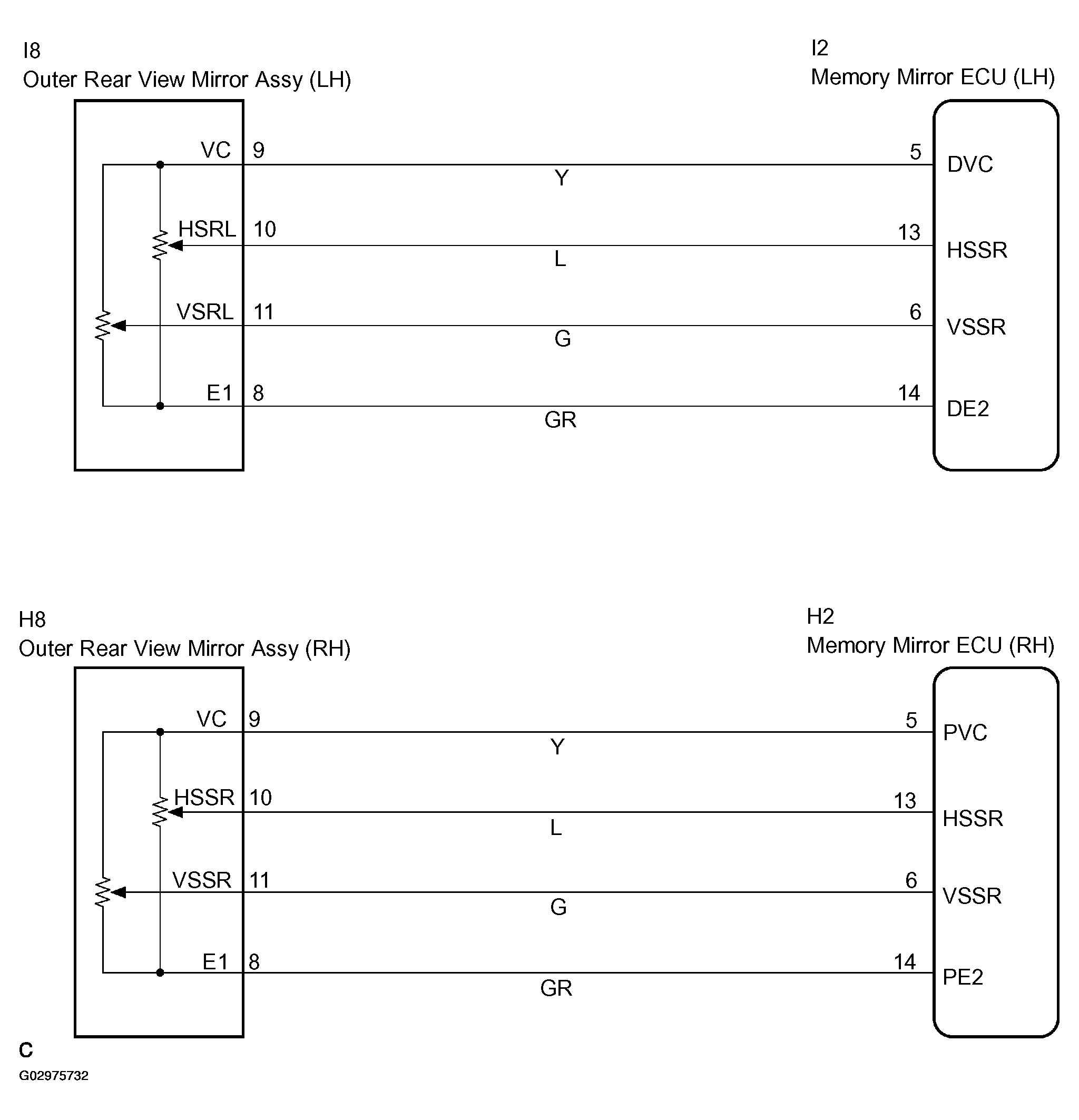

Fig 1: Position Sensor Wiring Diagram
G02975732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
