Remote Control Mirror Switch Circuit: Wiring Diagram

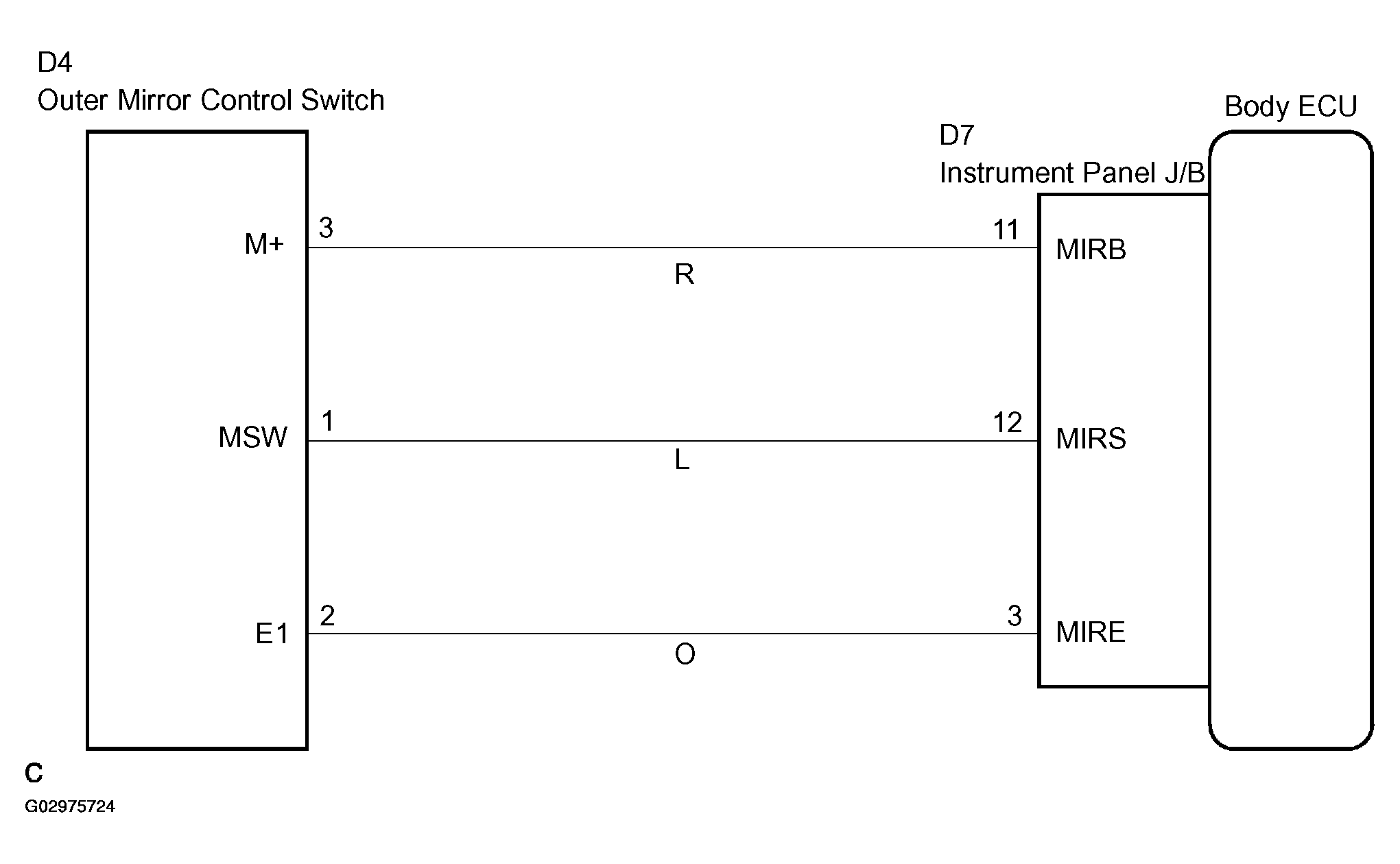

Fig 1: Remote Control Mirror Switch Wiring Diagram
G02975724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
