Circuit Description

This circuit detects the angle and direction of steering and automatically transmits its signal to the skid control ECU and distance control ECU.

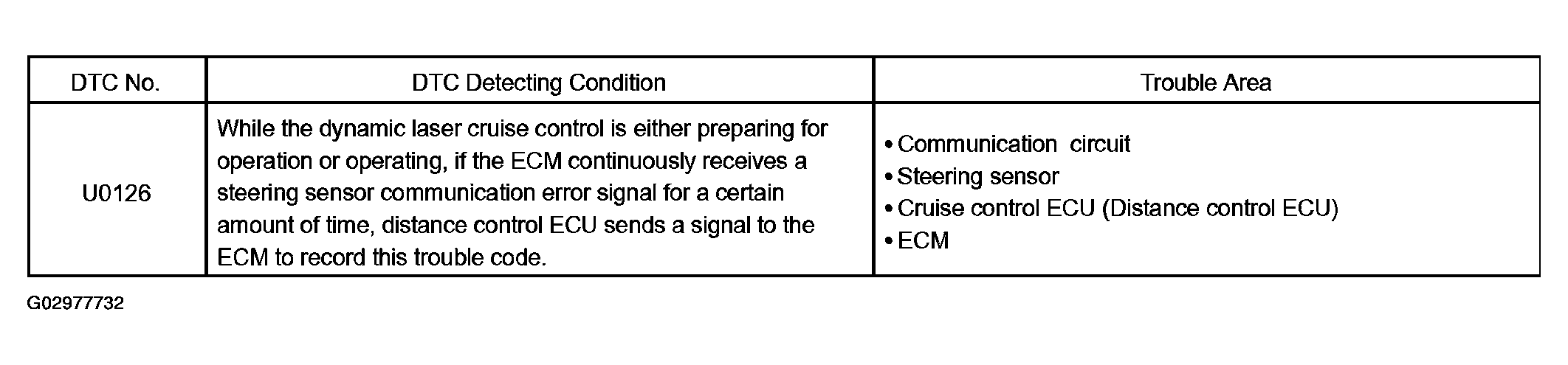

Fig 1: DTC Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
