Circuit Description

The skid control ECU inputs the signals from the ECM, steering sensor, and yaw rate sensor via CAN communication system.

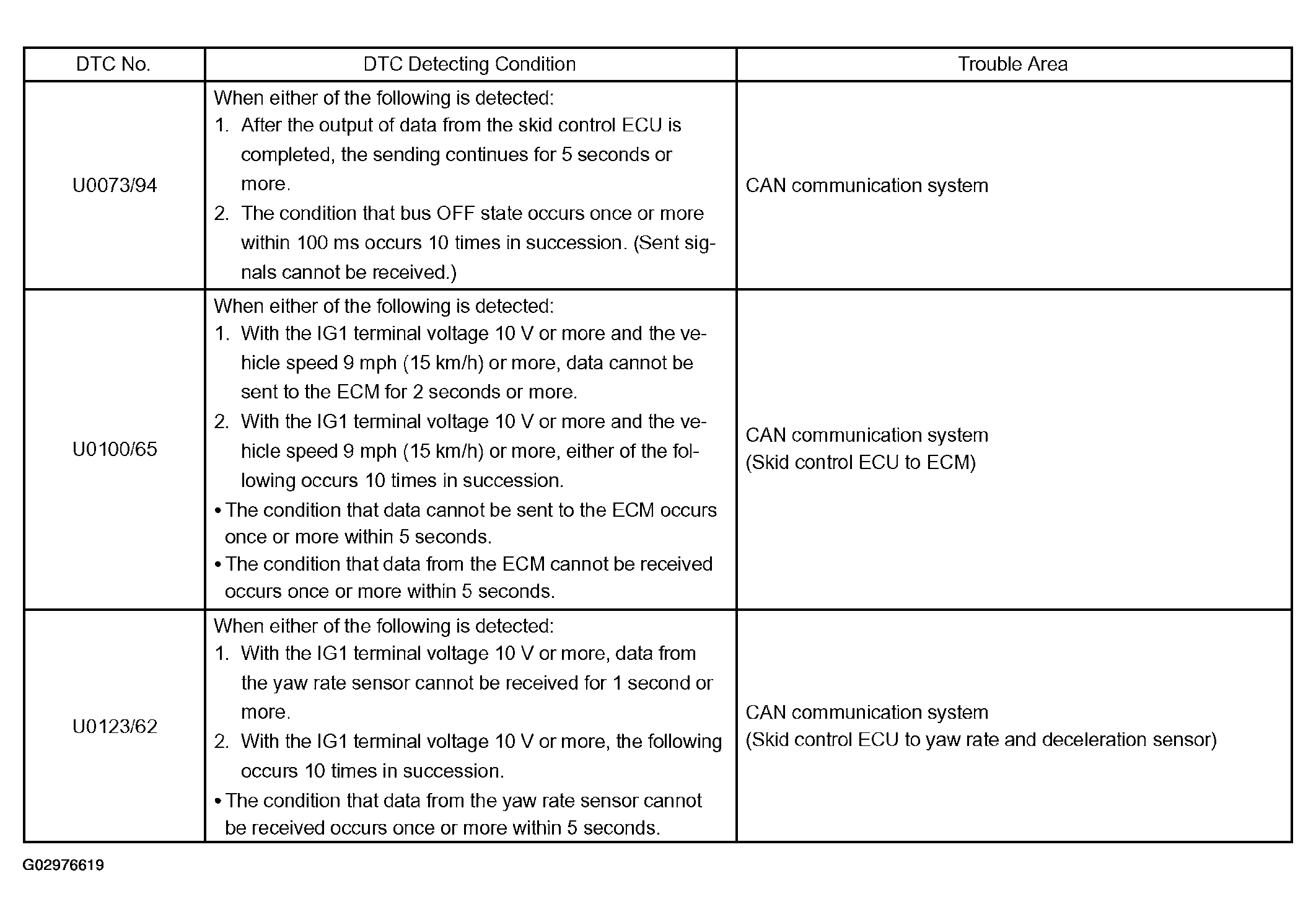

Fig 1: DTC Detecting Condition Table (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

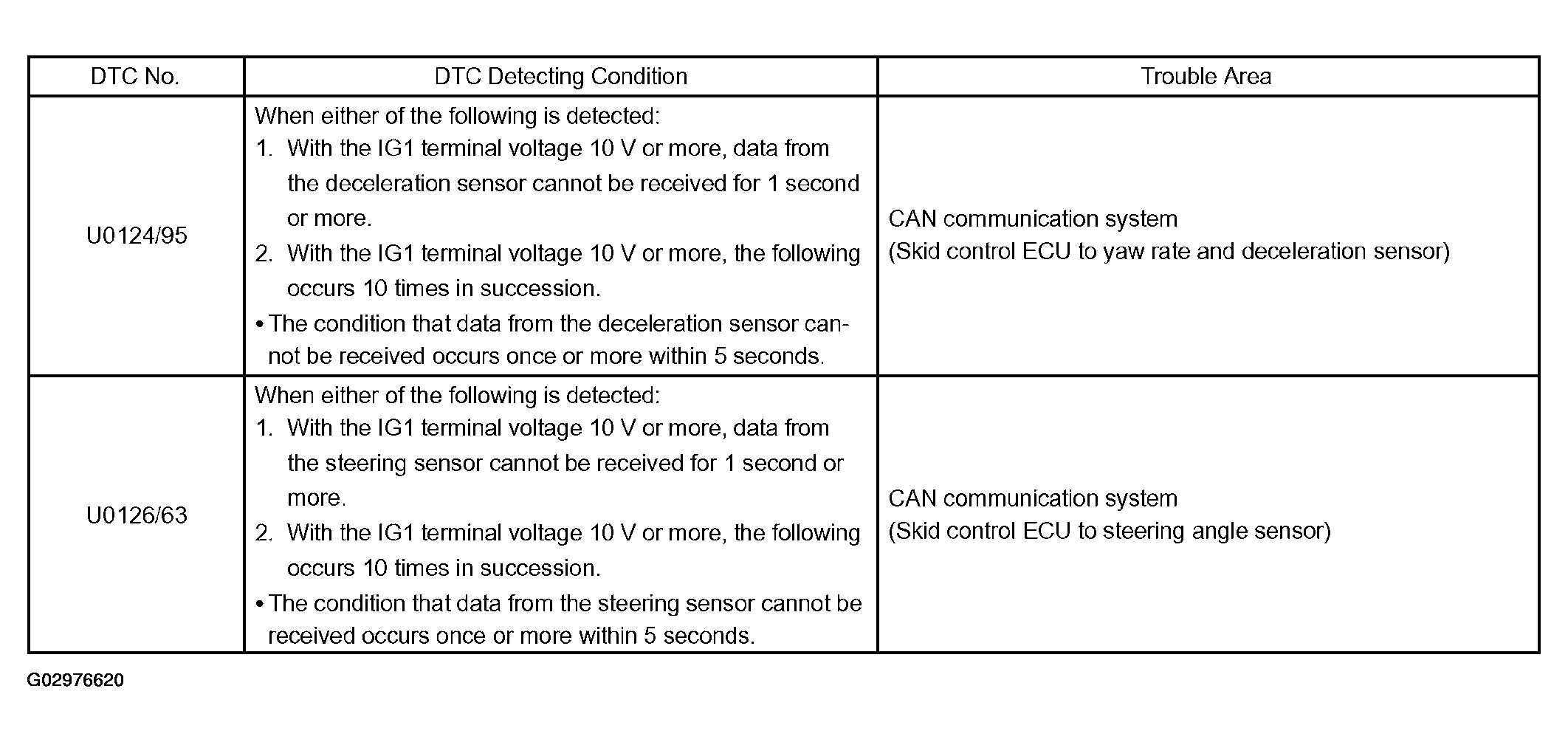

Fig 2: DTC Detecting Condition Table (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
