Multi Display: Replacement

HINT:

• See LOCATION .
• Installation is in the reverse order of removal.

1. TABLE OF BOLT, SCREW AND NUT (SEE REPLACEMENT )
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE PRECAUTION )

   Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

3. REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE  OVERHAUL  )
4. REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE  OVERHAUL  )
5. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
6. REMOVE STEERING WHEEL ASSY (SEE  OVERHAUL  )

   SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

7. REMOVE STEERING COLUMN COVER (SEE  OVERHAUL  )
8. REMOVE TURN SIGNAL SWITCH ASSY W/SPIRAL CABLE SUB-ASSY (SEE  OVERHAUL  )
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
10. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
11. REMOVE INSTRUMENT PANEL FINISH PLATE (SEE  REPLACEMENT  )
12. REMOVE INSTRUMENT PANEL SUB-ASSY (SEE  REPLACEMENT  )
13. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (SEE  REPLACEMENT  )
15. REMOVE ACCESSORY METER ASSY (SEE  REPLACEMENT  )
16. REMOVE MULTI DISPLAY
    1. Disengage the 9 claws and remove the backcover.
       Fig 1: Disengaging Claws And Removing Backcover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

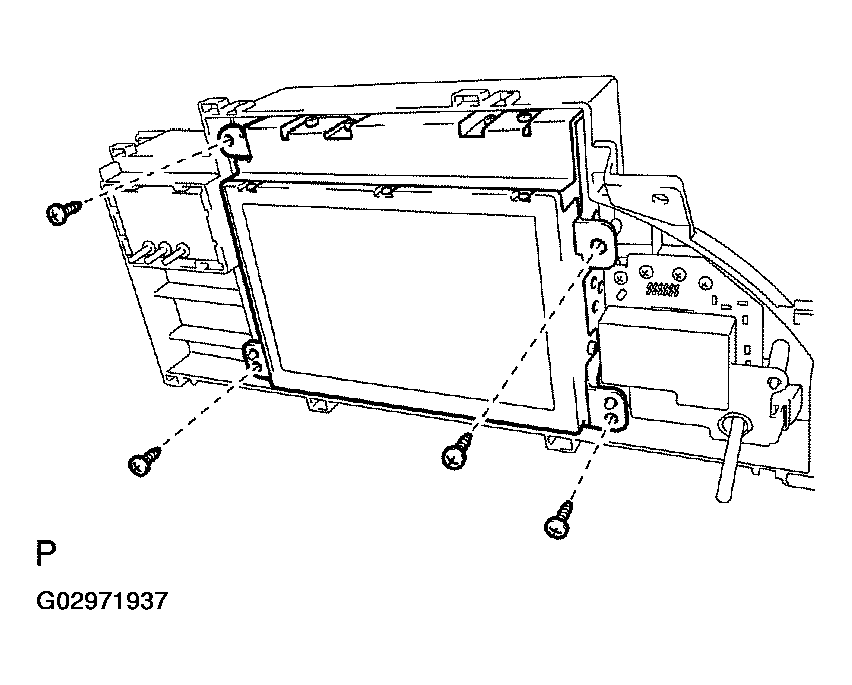

    2. Remove the 4 screws and multi display.
       Fig 2: Removing Multi Display

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. CENTER SPIRAL CABLE (SEE  REPLACEMENT  )
18. INSTALL STEERING WHEEL ASSY (SEE  OVERHAUL  )
19. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
21. PERFORM INITIALIZATION (SEE  INITIALIZATION  )

    Some systems need initialization when disconnecting the cable from the negative battery terminal

22. INSPECT HORN BUTTON ASSY (SEE  REPLACEMENT  )
23. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
