Navigation Ecu: Replacement

HINT:

• See LOCATION .
• Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH (SEE  OVERHAUL  )
2. REMOVE REAR FLOOR FINISH PLATE (SEE  REPLACEMENT  )
3. REMOVE DISC PLAYER DISC
   1. Eject the disc player disc.

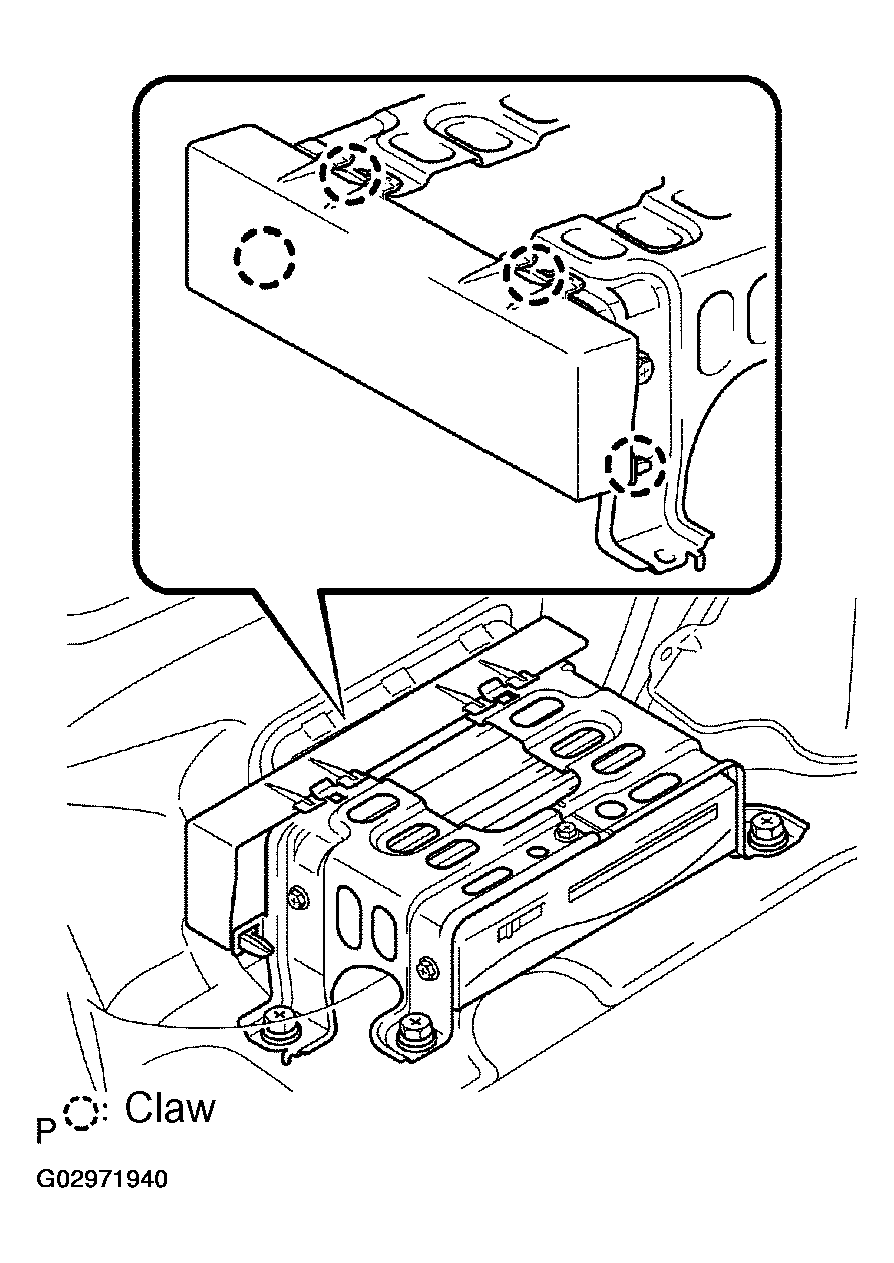

4. REMOVE NAVIGATION ECU COVER
   1. Disengage the 4 claws and remove the navigation ECU cover.
      Fig 1: Removing Navigation ECU Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

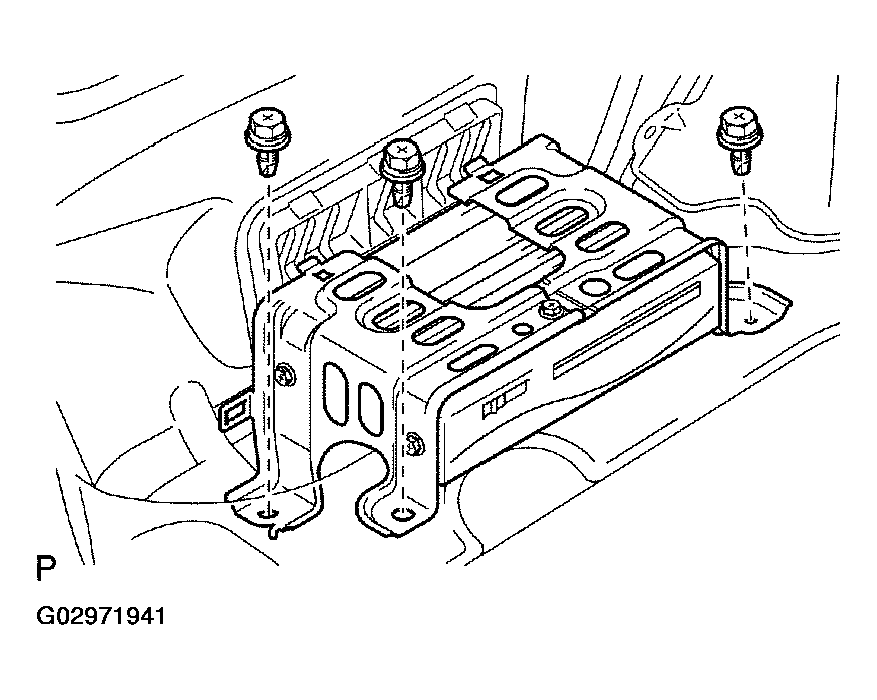

5. REMOVE NAVIGATION COMPUTER W/BRACKET
   1. Remove the 3 screws and navigation computer w/bracket.
      Fig 2: Removing Navigation Computer W/Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

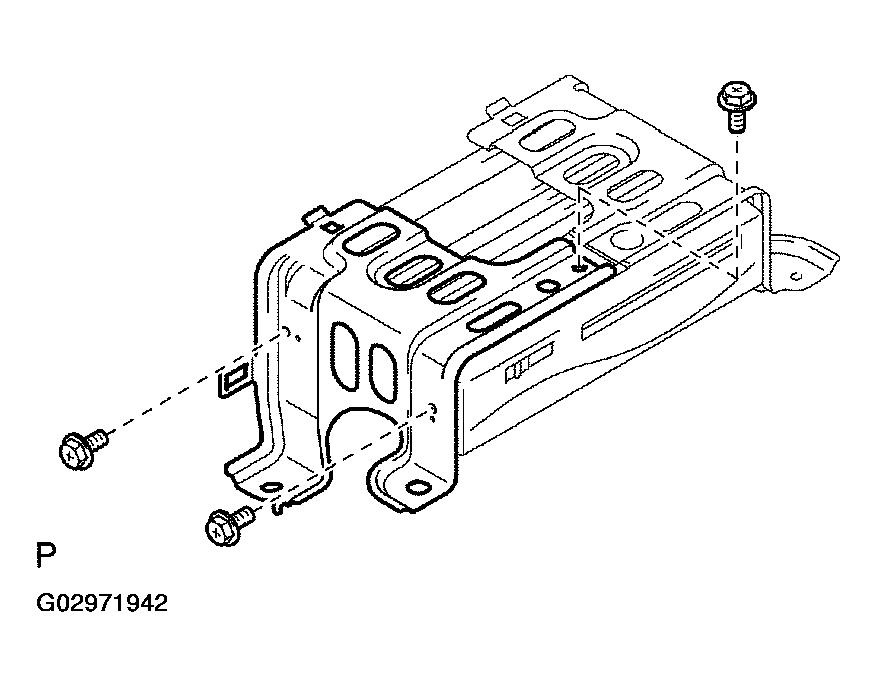

6. REMOVE DISC PLAYER BRACKET NO.2
   1. Remove the 3 bolts and disc player bracket No.2.
      Fig 3: Removing Disc Player Bracket No. 2

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE DISC PLAYER BRACKET
   1. Remove the 2 bolts and disc player bracket.
      Fig 4: Removing Disc Player Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE NAVIGATION ECU
