Lock Switch Circuit: Wiring Diagram

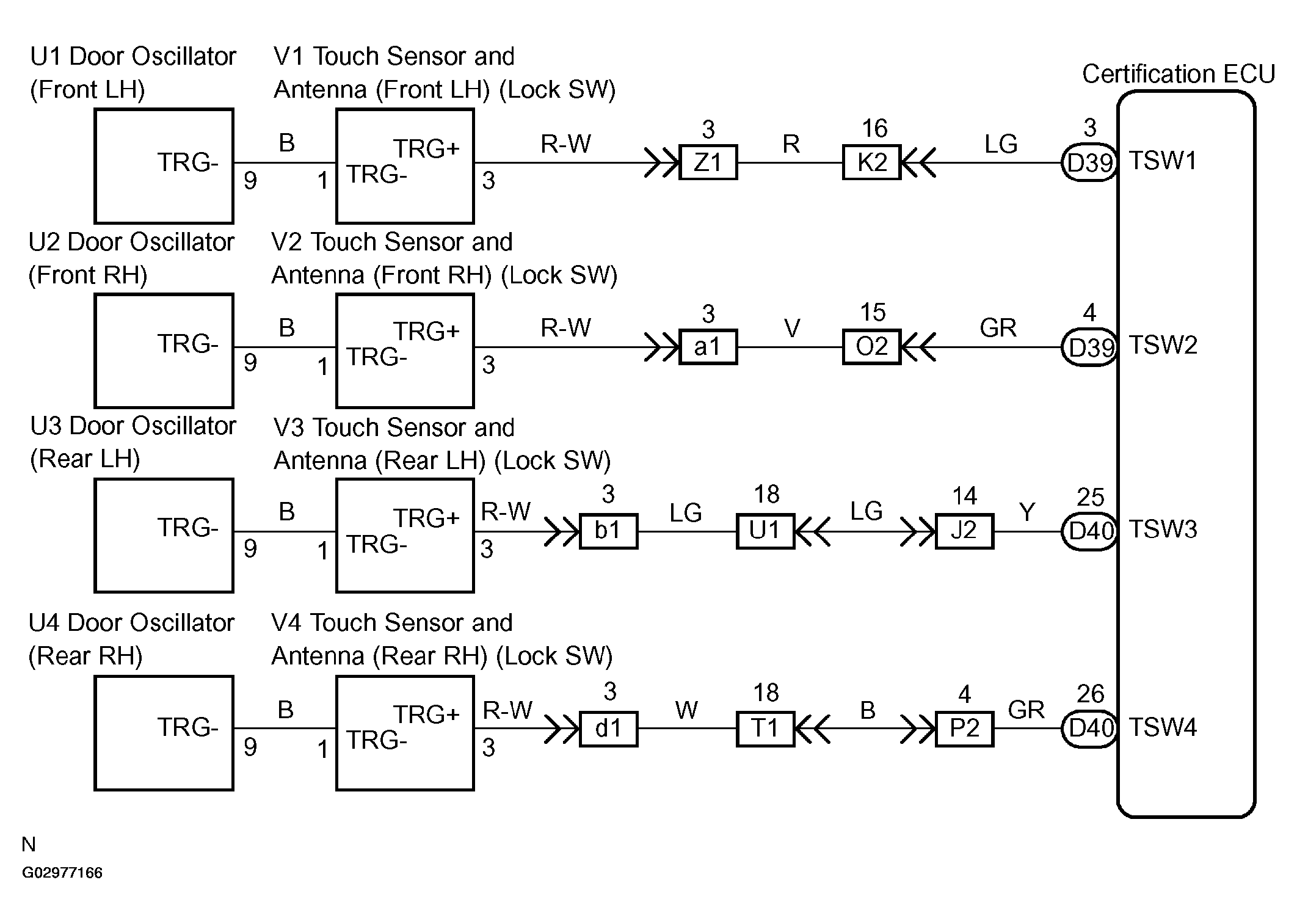

Fig 1: Lock Switch Circuit
G02977166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
