Data List/Active Test

HINT:

Using the hand-held tester's Data List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.

1. Connect the hand-held tester to the DLC3.
2. Turn the engine switch on (IG).
3. Read the Data List according to the display on the tester.

PWR SOURCE CTRL (Power source control):

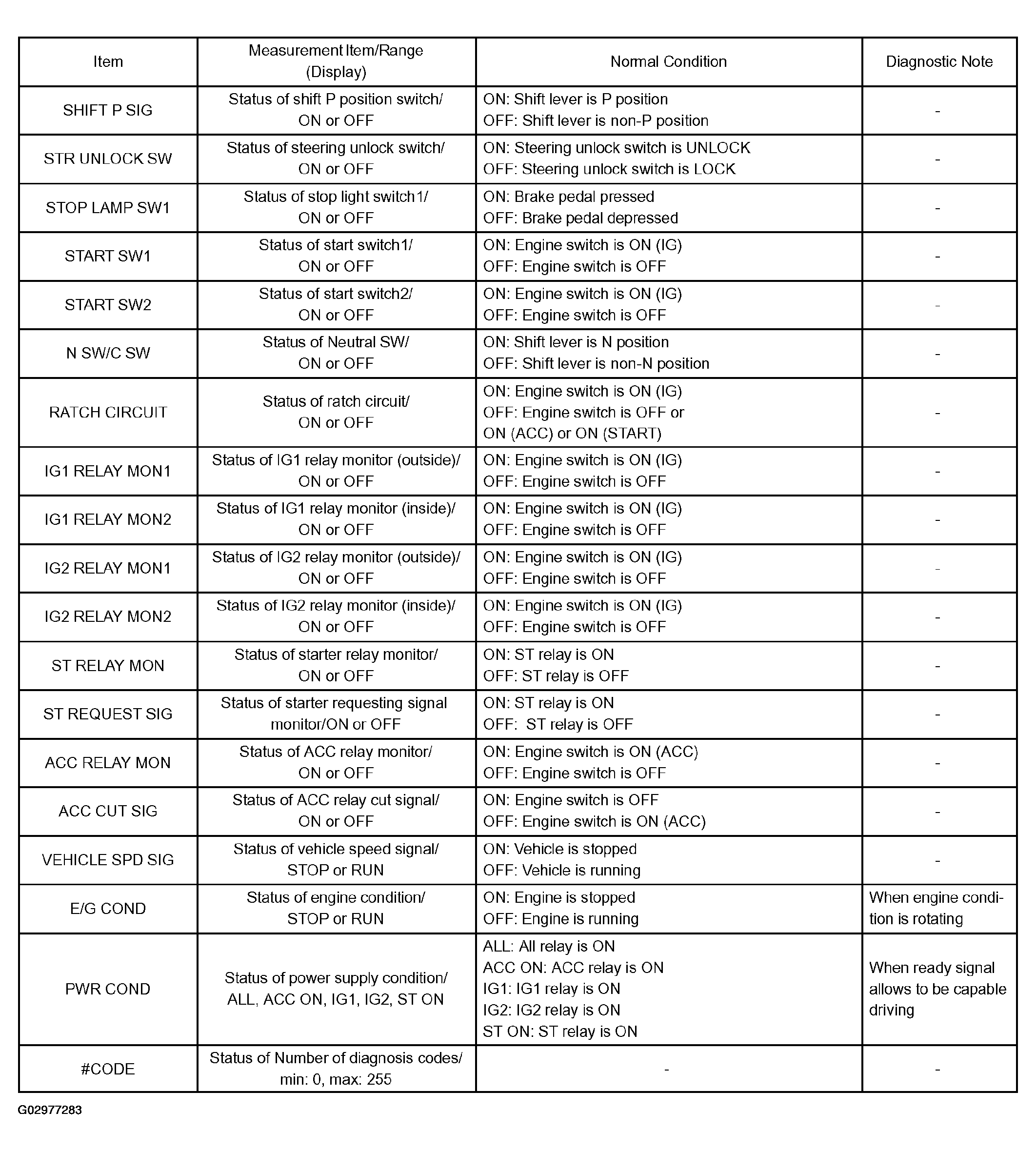

Fig 1: Data List Power Source Control Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's Active Test allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time. The Data List can be displayed during the Active Test.

1. Connect the hand-held tester to the DLC3.
2. Turn the engine switch on (IG).
3. Perform the Active Test according to the display on the tester.

   PWR SOURCE CTRL (Power source control):

   ACTIVE TEST (PWR SOURCE CTRL)



   Item	Test Details	Diagnostic Note
   LIGHTING IND	Indicator for lighting ON/OFF	-
   IND CONDITION	Indicator for lighting Green/Amber/No Sig	-
   STR LOCK PWR	Power supply for steering lock ON/OFF	-
