Problem Symptoms Table

HINT:

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in Fig 1 and proceed to the relevant troubleshooting .

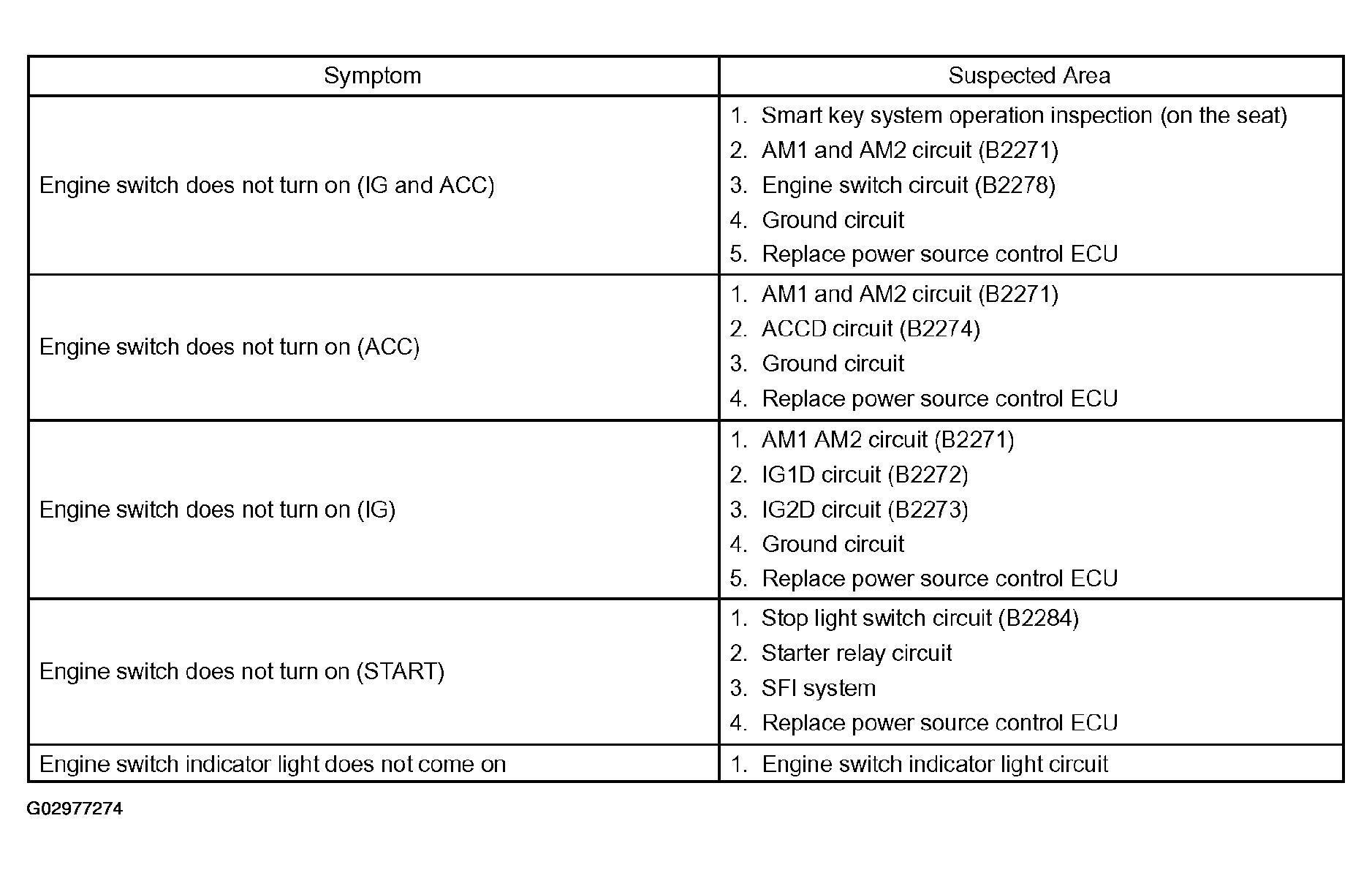

Fig 1: Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
