Inspection Procedure
- CHECK MEMORY MIRROR ECU (POWER SOURCE)

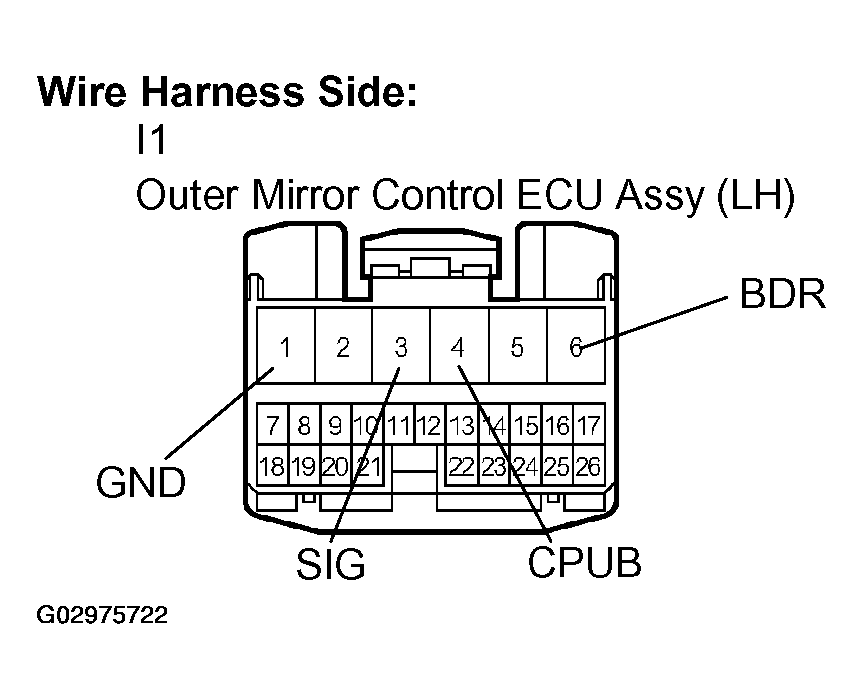

- LH:
- Disconnect the I1 connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition I1-1 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition I1-3 (SIG) - Body ground Ignition switch OFF --> ON 0 V -->10 to 14 V I1-4 (CPUB) - Body ground Constant 10 to 14 V I1-6 (BDR) - Body ground Constant 10 to 14 V
- RH:
- Disconnect the H1 connector.
- Measure the resistance according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition H1-1 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition H1-3 (SIG) - Body ground Ignition switch OFF --> ON 0 V -->10 to 14 V H1-4 (CPUB) - Body ground Constant 10 to 14 V H1-6 (BDR) - Body ground Constant 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
