Power Mirror Control System (W-Memory): Location

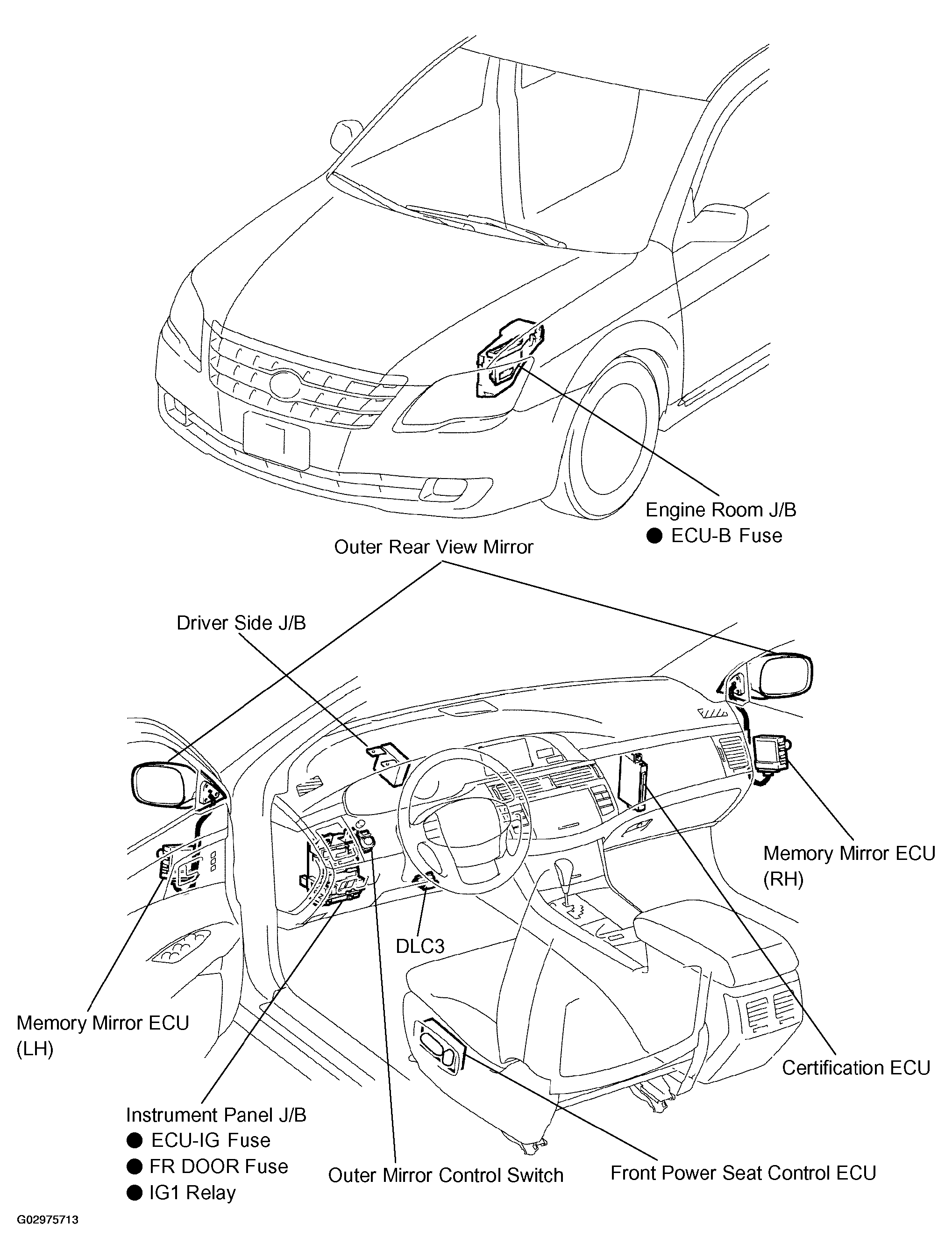

Fig 1: Locating Power Mirror Control System - w/Memory
G02975713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
