Inspection Procedure
- READ VALUE OF HAND-HELD TESTER
- Check the DATA LIST for proper functioning of the seat memory switch.
OUTER MIRROR CONTROL ECU:
SPECIFIED CONDITIONItem Switch Position Specified condition MIR POS SEN V Mirror position sensor voltage (Vertical direction) 0 to 5 V MIR POS SEN H Mirror position sensor voltage (Horizontal direction) 0 to 5 V OK: 0 to 5 V is displayed
- NG: Go to step 2
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
- Check the DATA LIST for proper functioning of the seat memory switch.
- CHECK WIRE HARNESS (OUTER REAR VIEW MIRROR ASSY - MEMORY MIRROR ECU)
- LH:

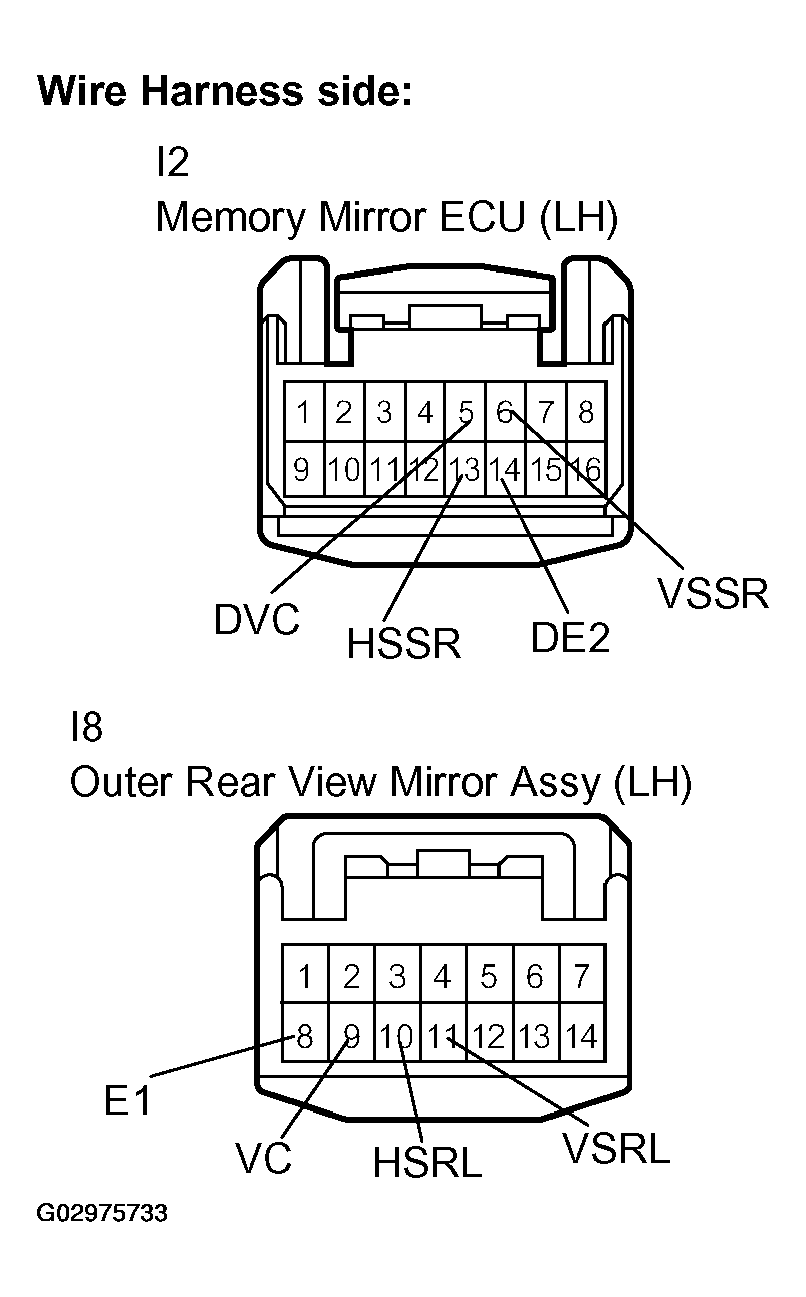

- Disconnect the I2 and I8 connectors.
- Check the resistance of the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition I8-8 - I2-14 Always Below 1 Ω I8-9 - I2-5 Always Below 1 Ω I8-10 - I2-13 Always Below 1 Ω I8-11 - I2-6 Always Below 1 Ω I8-8 - Body ground Always 10 kΩ or higher I8-9 - Body ground Always 10 kΩ or higher I8-10 - Body ground Always 10 kΩ or higher I8-11 - Body ground Always 10 kΩ or higher
- RH:
- Disconnect the H2 and H8 connectors.
- Check the resistance of the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition H8-8 - H2-14 Always Below 1 Ω H8-9 - H2-5 Always Below 1 Ω H8-10 - H2-13 Always Below 1 Ω H8-11 - H2-6 Always Below 1 Ω H8-8 - Body ground Always 10 kΩ or higher H8-9 - Body ground Always 10 kΩ or higher H8-10 - Body ground Always 10 kΩor higher H8-11 - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
- LH:
