Inspection Procedure

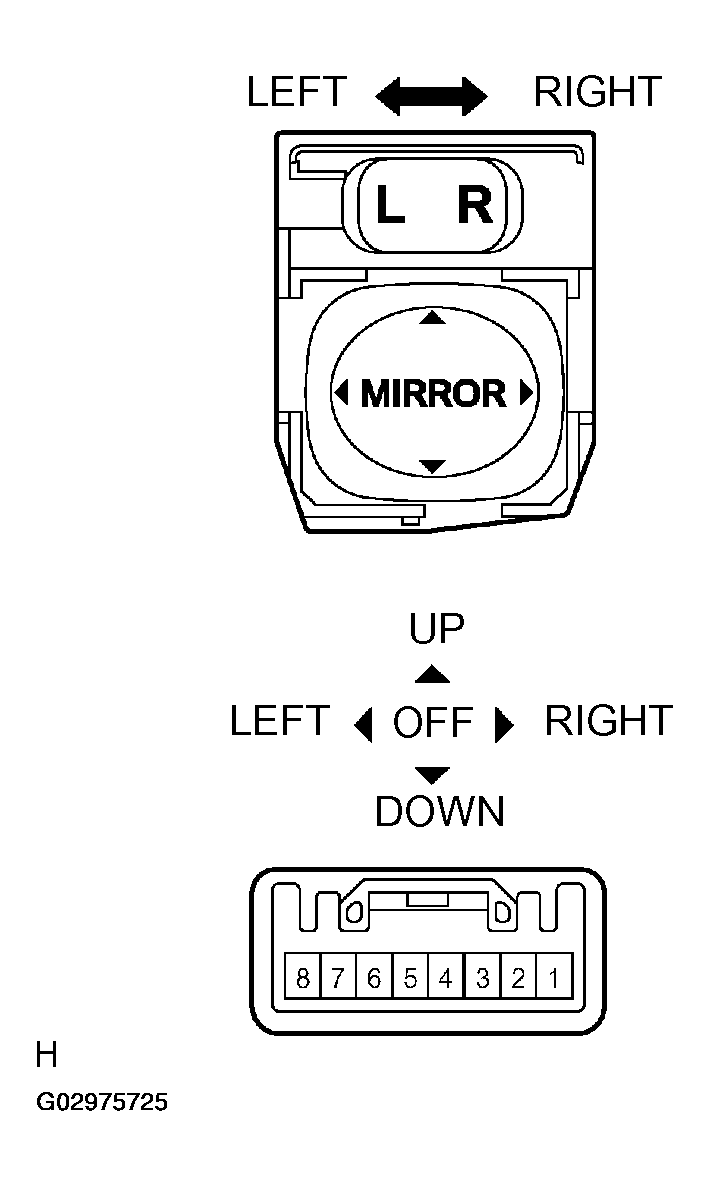

- INSPECT OUTER MIRROR CONTROL SWITCH
- Remove the outer mirror control switch.
- Measure the resistance between the wire harness connectors.
Vertical and horizontal operation:
SPECIFIED CONDITIONTester Connection Switch Position Specified Condition 2 - 3 OFF 10 kΩ or higher 2 - 3 UP 100 Ω 2 - 3 DOWN 250 Ω 2 - 3 LEFT 470 Ω 2 - 3 RIGHT 800 Ω Left or right side operation:
SPECIFIED CONDITIONTester Connection Switch Position Specified Condition 1 - 2 L 100 Ω 1 - 2 R 10 Ωor less
- NG: REPLACE OUTER MIRROR CONTROL SWITCH
- OK: Go to next step.

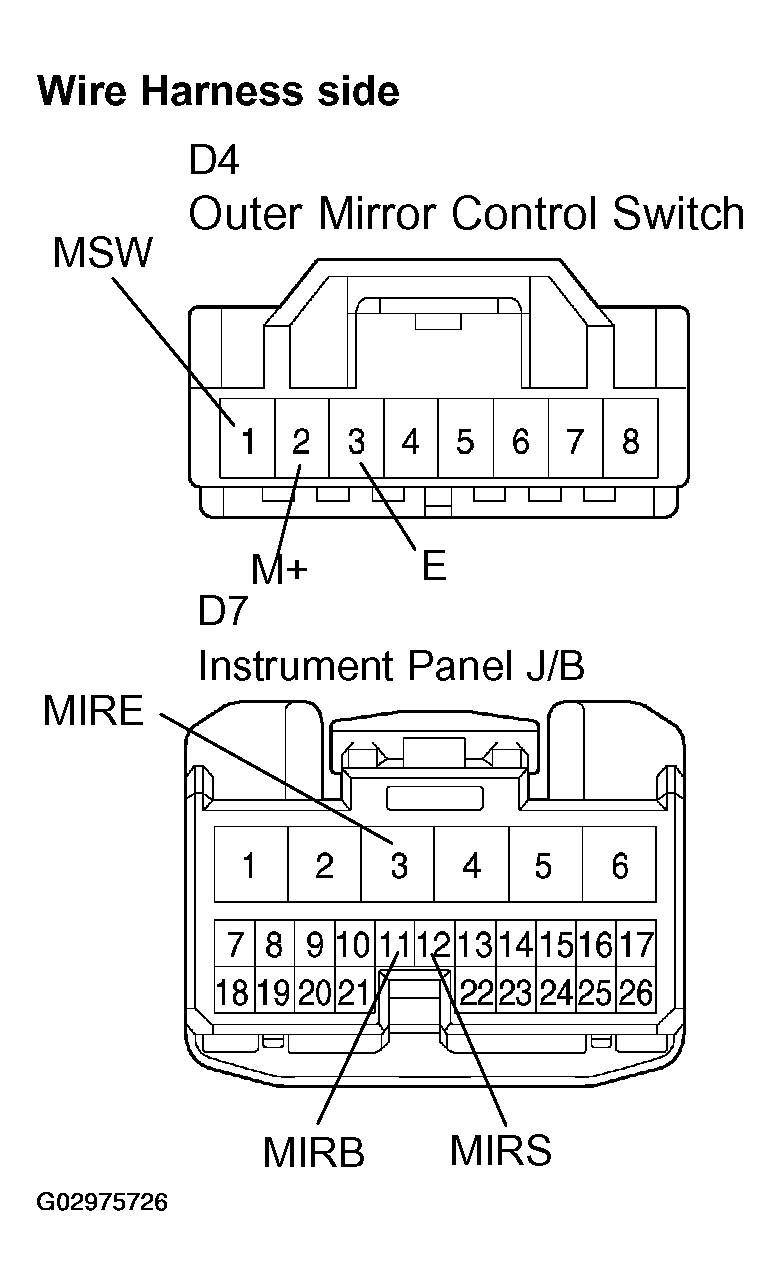

- CHECK WIRE HARNESS (OUTER MIRROR CONTROL SWITCH - INSTRUMENT PANEL J/B)
- Disconnect the D4 and D7 connectors.
- Check the resistance between the wire harness side connectors.
Standard:
SPECIFIED CONDITIONTester Connection Condition Specified Condition D4-1 - D7-12 Always Below 1 Ω D4-2 - D7-3 Always Below 1 Ω D4-3 - D7-11 Always Below 1 Ω D4-1 - Body ground Always 10 kΩ or higher D4-2 - Body ground Always 10 kΩ or higher D4-3 - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
