Power Mirror Control System (W-Memory)
>>
System Diagram
>>
Signal Communication Table:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

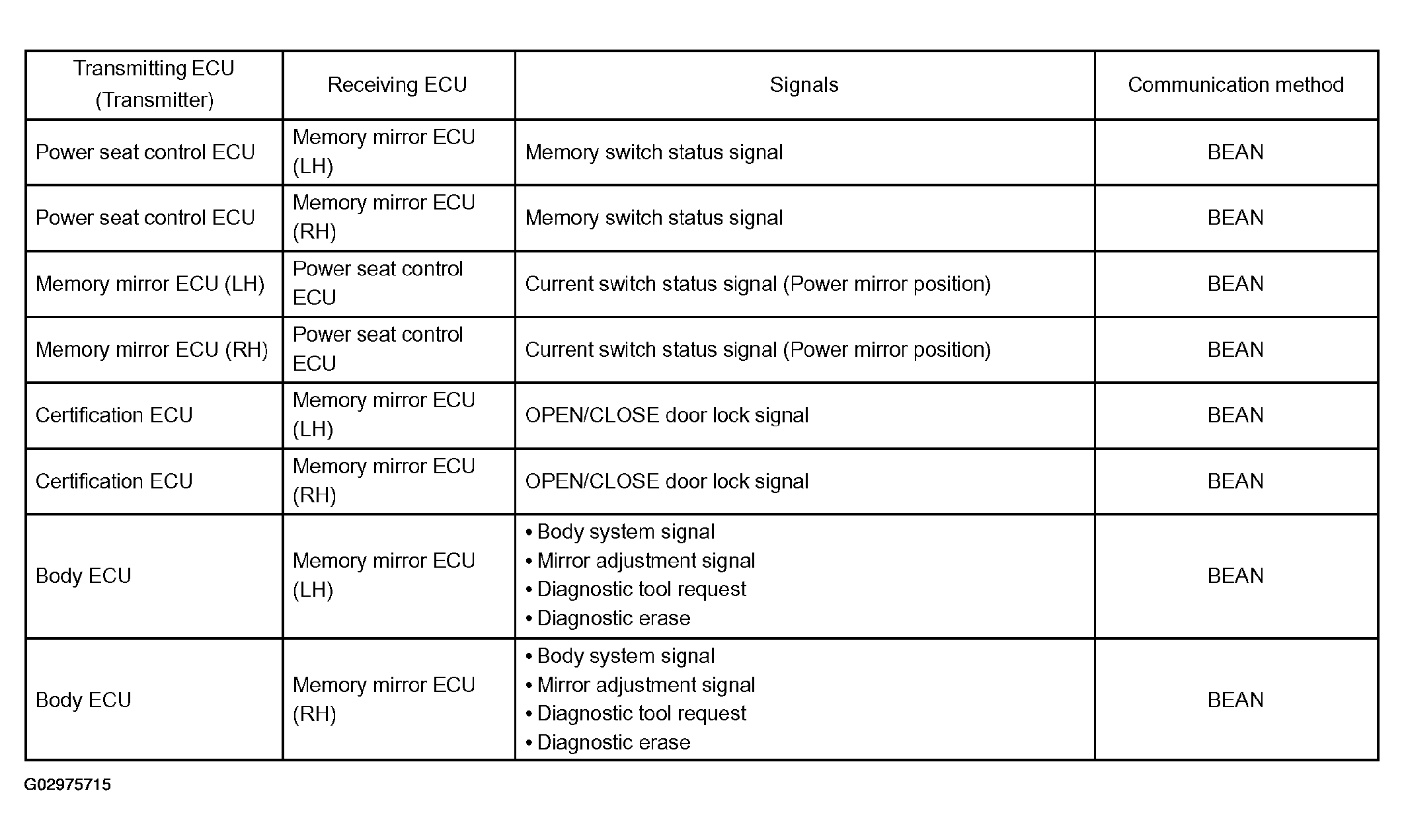

Signal Communication Table:
Fig 1: Signal Communication Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
