Communication Signal Circuit: Wiring Diagram

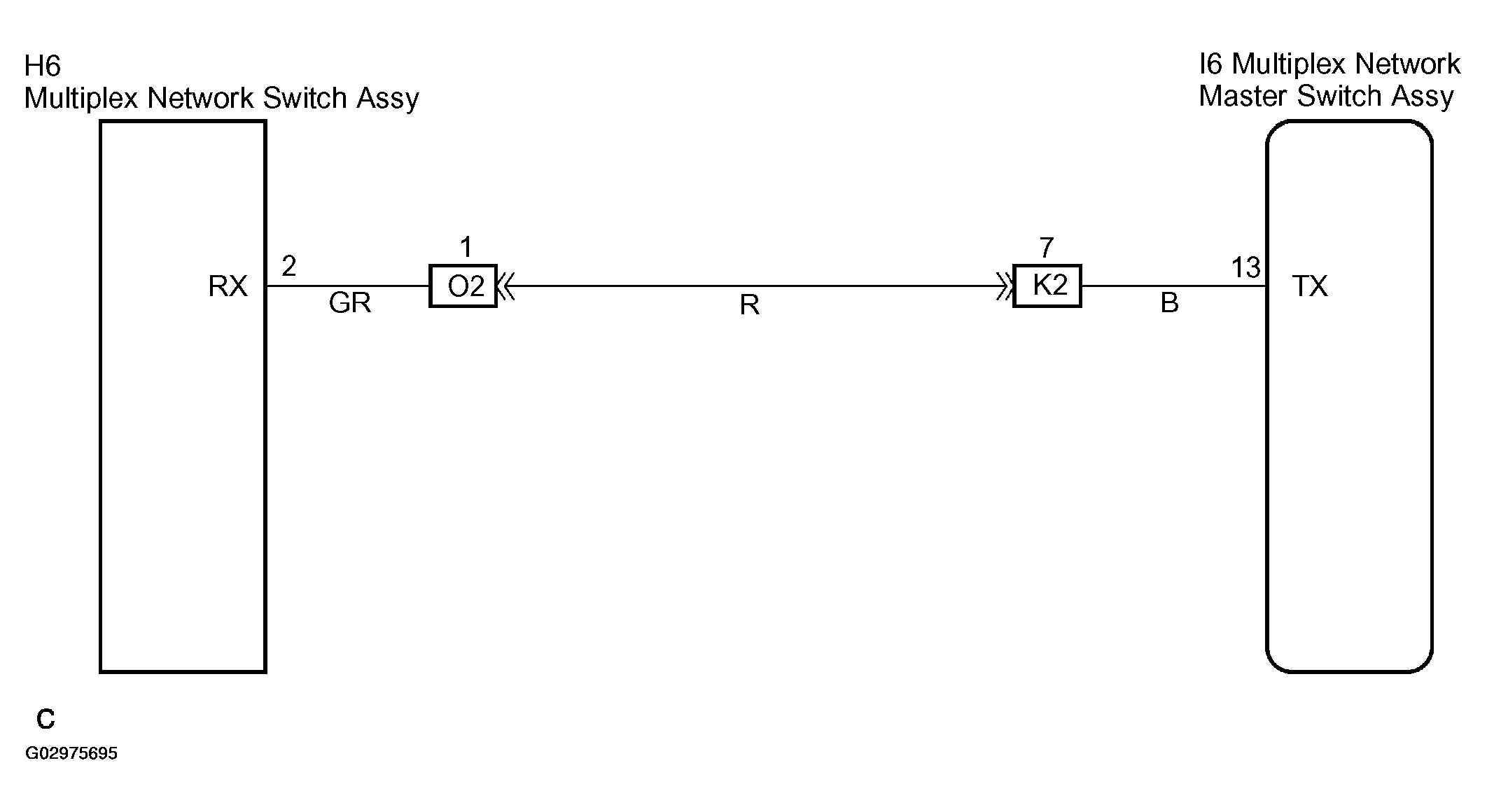

Fig 1: Communication Signal Wiring Diagram
G02975695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
