Inspection Procedure

  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSY (REAR LH)
    1. Remove the switch.
    2. Measure the resistance of the switch when the switch is operated.

      Standard:

      SPECIFIED CONDITION

      Switch Condition Tester Connection Specified Condition
      UP 1 (D) - 2 (SD) 3 (U) - 4 (B) Below 1 Ω
      OFF 1 (D) - 2 (SD) 3 (U) - 5 (SU) Below 1 Ω
      DOWN 1 (D) - 4 (B) 3 (U) - 5 (SU) Below 1 Ω

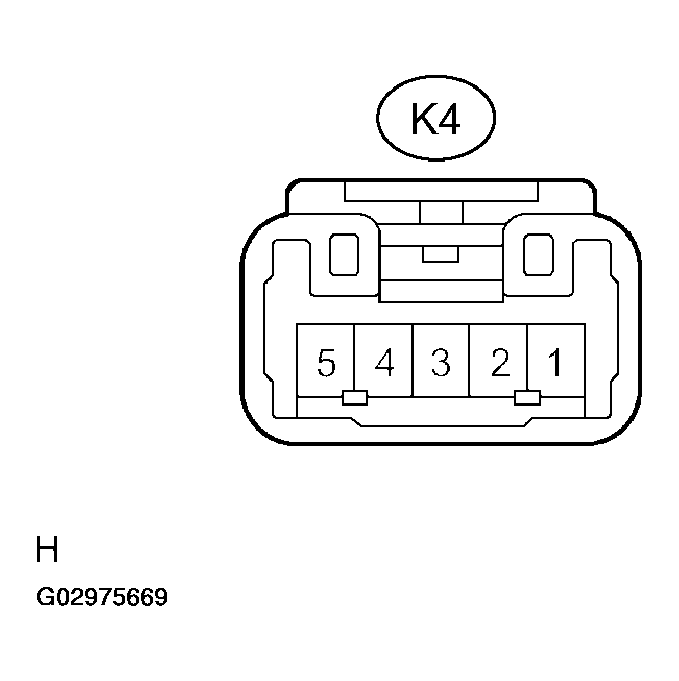

      Fig 1: Identifying Power Window Regulator Switch
      G02975669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY (REAR LH)
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )
