Power Window Control System
>>
Power Window Switch Circuit (Multiplex Network Switch ASSY)
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Window Switch Circuit (Multiplex Network Switch ASSY): Wiring Diagram

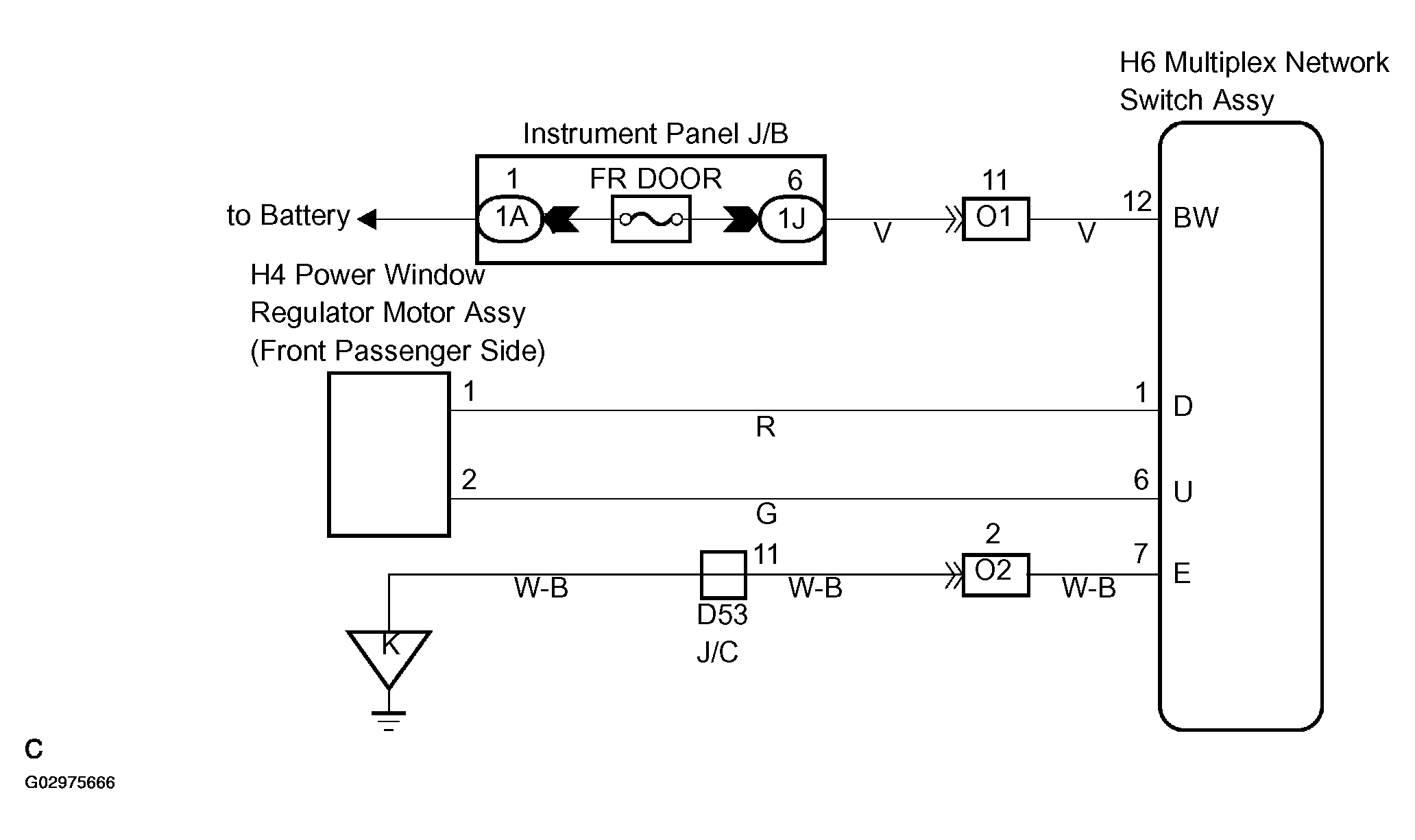

Fig 1: Power Window Switch Wiring Diagram - Multiplex Network Switch Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
